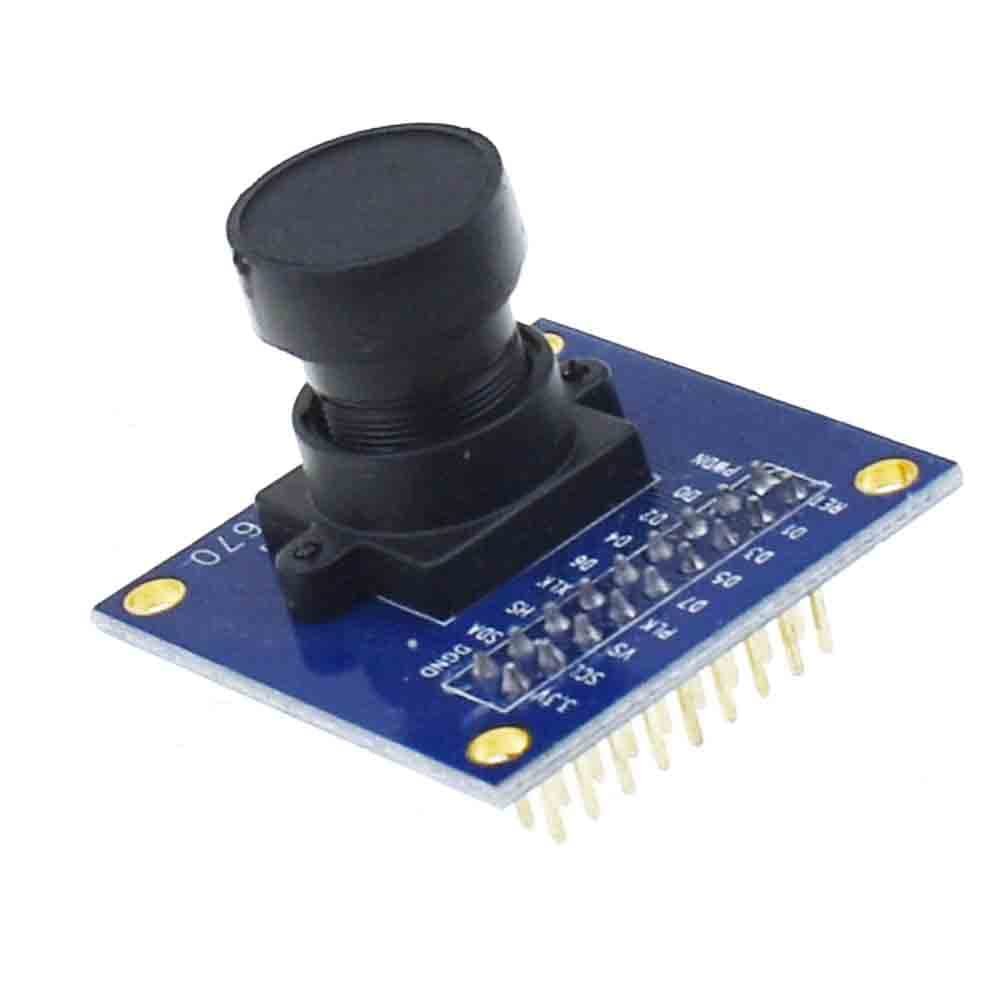

Reland Sun OV7670 Camera Module, 640 × 480, 300KP VGA

Description

• 640 480 pixel camera resolution; supports Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2), and YCbCr (4:2:2) output formats
• Compact square design with a 3.5 cm perimeter and less than 3 cm in height
• Integrated regulator; requires only a 3.3 V power supply
• Standard SCCB interface compatible with the I2C interface

The OV7670 camera module offers high sensitivity for low-light operation, a compact design, and numerous image-control options, including automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB), automatic band filter (ABF), and automatic black-level calibration (ABLC). Image-quality controls include color saturation, hue, gamma, sharpness, and anti-blooming. It also supports image scaling and lens-shading correction.

Specifications: 1/6-inch optical format; 640 480 VGA resolution; onboard regulator requiring a single 3.3 V supply; standard 2.54 mm pin header; F1.8/6 mm lens; support for VGA, CIF, and any image size from CIF down to 40 30; VarioPixel method for subsampling; ISP with noise reduction and defect correction; low operating voltage for embedded portable applications; and breadboard compatibility with no soldering required.

Suitable for applications including mobile phones, PDAs, and toys, and compatible with Arduino, Maple, ChipKIT, STM32, ARM, DSP, and FPGA platforms.
