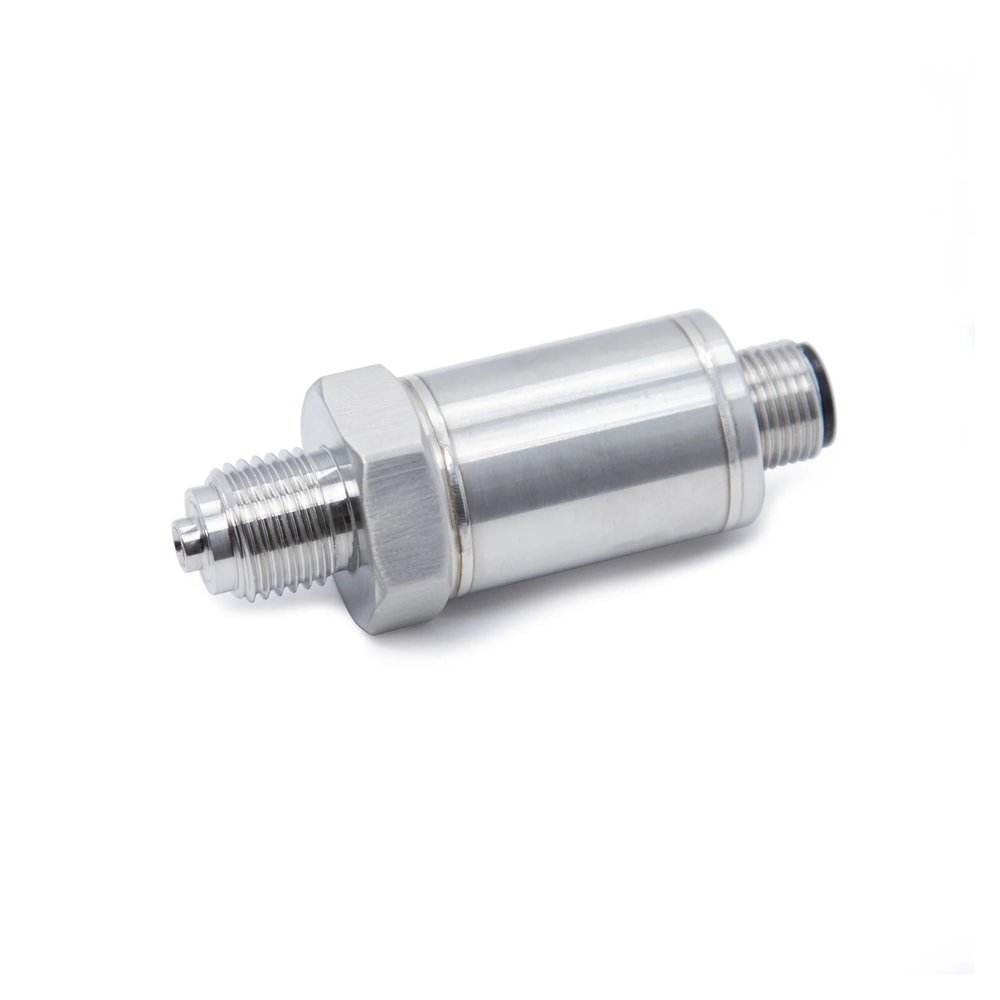

REIUAFWYGV Water/Oil/Fuel/Gas/Air Pressure Transducer, G1/4, 12–36 V, 4–20 mA, M12 4-Pin, SS304

Description

• Model: XDB305T-G1-W4
• Measuring range: -1 to 600 bar
• Maximum measuring range: 400 bar and above
• Supply voltage: 1236 VDC
• Output signal: 420 mA / voltage / I2C
• Accuracy: 0.5% FS
• Operating temperature: -40 to 105 C
• Compensation temperature: -20 to 80 C
• Operating current: 3 mA
• Temperature drift (zero and sensitivity): 0.03% FS/
• Long-term stability: 0.2% FS/year
• Response time: 3 ms
• Overload pressure: 150% FS
• Burst pressure: 300% FS
• Cycle life: 500,000 cycles
• Pressure medium: media compatible with SS304
• Pressure connection: G1/4
• Electrical connection: M12 4-pin
• Housing material: SS304
• Protection rating: IP67
• Explosion-proof rating: Ex ia IIC T6
• Weight: approximately 0.18 kg
• Paired cable: 2 m

The REIUAFWYGV pressure transducer is designed for measuring pressure in water, oil, fuel, gas, and air applications. It features a G1/4 pressure connection, an M12 4-pin electrical connection, an SS304 housing, and a 1236 VDC supply. Available output signals are 420 mA, voltage, and I2C. The sensor has a response time of 3 ms, IP67 protection, and an Ex ia IIC T6 explosion-proof rating.
