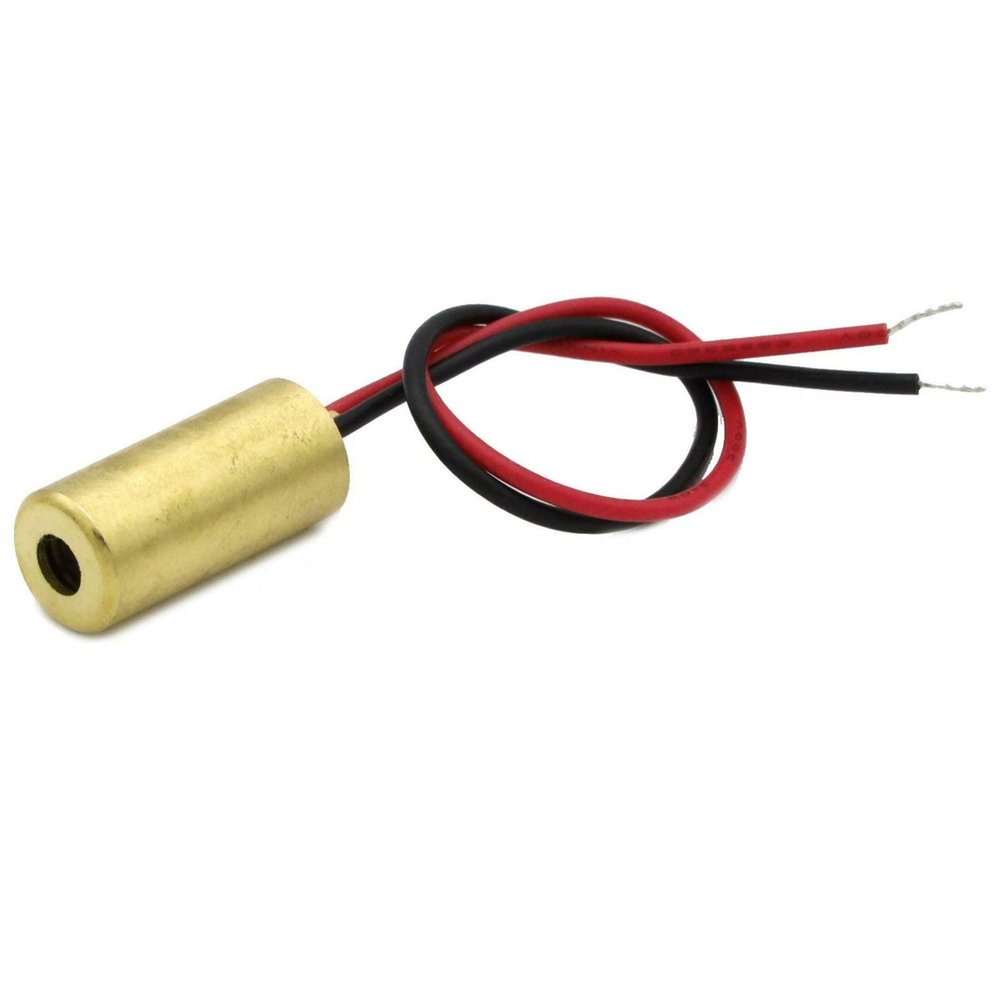

Red 650 nm Point Laser Module, 0.4 mW, 3–6 V DC, 9 × 20 mm

Description

• Elliptical point beam; spot size <45 mm at 5 m
• Optical power: 0.4 mW; laser class 1
• Collimated focus; compact housing: 9 20 mm
• Axis deviation: up to 3.0
• For laser levels, laser marking systems, robotics and show applications
• Operating voltage: 36 V DC; typical current: 15 mA

The LFD650-0.4-6(9x20) is a laser module for projecting a red laser point with a wavelength of 650 nm. It has a very compact design measuring 9 20 mm. The laser module has a service life of more than 3,000 hours. With the collimated laser beam, the generated spot size increases slightly and continuously as the working distance increases. With a current consumption of approximately 15 mA, the module can be powered by two batteries and used portably. For example, a battery pack with two 1.5 V AA batteries can be used. The point laser is suitable for applications such as leveling devices, laser marking systems and precise positioning of objects. Typical applications include low-cost solutions. This module is classified as laser class 1. Main parameters: Wavelength: 650 nm; optical diode power: 0.4 mW; operating voltage: 36 V, typical 3 V DC; operating current: 525 mA, typical 15 mA; operating temperature: 20C to 40C; storage temperature: 40C to 80C. Optical parameters: Beam shape: point; laser class: 1; divergence: H 1.0 mrad; beam diameter: 3 mm; service life: >3,000 hours; RoHS: yes. Electrical parameters: Housing potential: VDD (+). Power supply: power supply with stripped/tinned wires; output: 3.3 V DC; input: 100240 V AC, 5060 Hz; maximum output power: 3.3 W.
