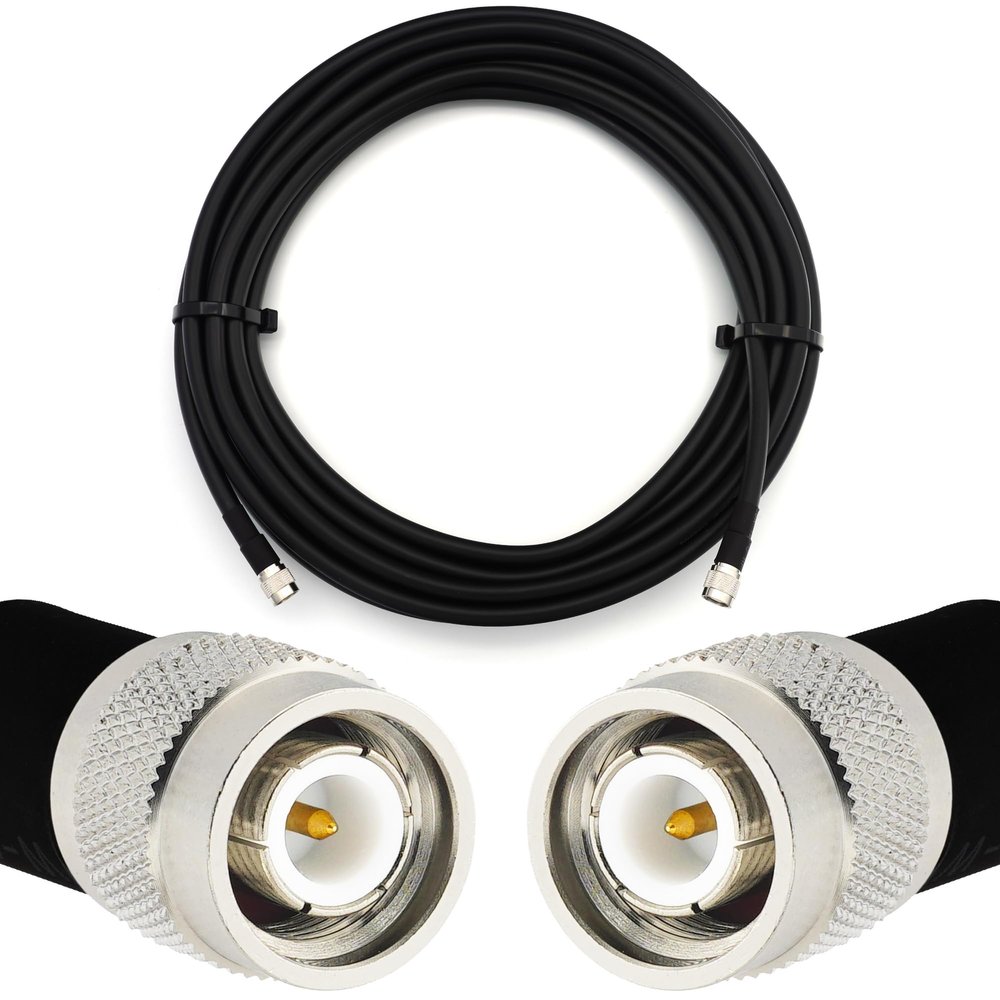

RANGEFUL 5 m TNC Male-to-Male HF400 Flexible Coaxial Cable, 50 Ohm

Description

• Wide application range: antennas, routers, 4G/5G repeaters, mobile signal boosters, radio scanners, modems, CB radios, Wi-Fi devices, GPS antennas, RF equipment, WLAN devices and test equipment
• For indoor and outdoor use; UV-protected, waterproof, black, non-contaminating flexible PVC jacket
• Pure copper conductor and tinned copper braided shield for low attenuation, high-quality data transmission and flexibility
• Double-wall heat-shrink tubing with adhesive layer for added connector protection against external influences
• Assembled and tested in the EU; silver-soldered connectors; compliant with CE, RoHS, REACH and CPR Eca standards

TNC male-to-male, low-loss HF400 UF flexible coaxial cable for indoor and outdoor use. The 5 m cable is double-shielded and has a black, non-contaminating PVC jacket. Cable type: HF400 flexible, equivalent to LMR-400-UF, with PVC jacket. Center conductor: pure copper, 7 x 0.95 mm strands. Impedance: 50 ohms. Frequency range: DC11 GHz. Cutoff frequency: 31 GHz. VSWR: 2. Shielding effectiveness: >90 dB. Capacitance: 80 pF/m. Dielectric: PE. Shielding: 2 layers, aluminum foil and tinned copper braid. Operating temperature: -30 to +70 C. Mechanical specifications: Cable diameter 10.30 mm; inner conductor diameter 2.75 mm; dielectric diameter 7.25 mm and 7.95 mm; minimum bend radius 100 mm. Attenuation at 100 m: 13.2 dB at 900 MHz, 19.3 dB at 1,800 MHz, 23.3 dB at 2,500 MHz and 37.7 dB at 5,800 MHz.
