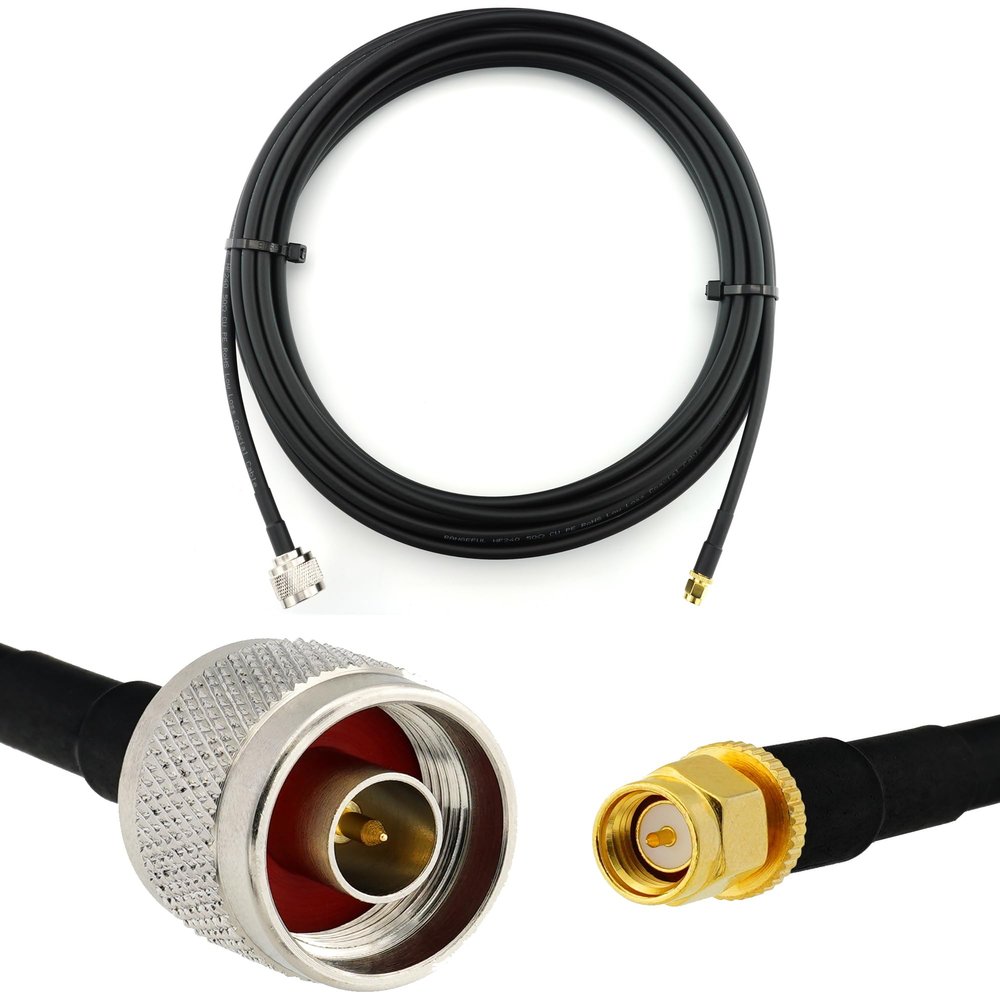

RANGEFUL 5 m SMA Male to N Male HF-240 Antenna Extension Cable

Description

• Application: For devices with an N jack, including routers, 4G/5G repeaters, antennas, radios, couplers, splitters, modems, CB/HAM radios, Wi-Fi and GPS antennas, wireless LAN devices, FRS, GMRS, MURS and SWR meters.
• Indoor/outdoor use: Semi-flexible, UV-resistant, waterproof and frost-resistant black PVC jacket; double-shielded with foil and tinned copper braid for low signal loss.
• Solid copper conductor: 1.42 mm copper center conductor and tinned copper braid shield for data transmission with minimal attenuation.
• Double-wall heat-shrink tubing: Additional adhesive layer helps protect the connectors from external influences; suitable as a router cable or antenna extension for LTE outdoor antennas and Wi-Fi antennas.
• Assembled in the EU: Connectors are soldered with silver solder for reliable contact and long service life. Each cable is tested before shipping and complies with CE, RoHS and CPR Eca standards.

Low-loss HF240 (LMR240 equivalent) flexible coaxial cable with an N male connector and an SMA male connector. The cable is double-shielded and has a black PVC jacket. Length: 5 m. Suitable for antennas, routers, 4G/5G repeaters, mobile signal boosters, radio scanners, modems, vehicle transmitters, CB radios, Wi-Fi radios, GPS antennas, various RF devices, wireless LAN devices and test equipment. Specifications: Cable type: HF240 bare copper cable with PE jacket Center conductor: Solid copper, single conductor Impedance: 50 ohms Frequency range: DC6 GHz Cutoff frequency: 31 GHz V.S.W.R.: 2 Operating voltage: 1,500 Vrms Peak input power: 2.5 kW Velocity of propagation: 83% Shielding effectiveness: >90 dB Capacitance: 83 pF/m Dielectric type: PE Jacket material: PVC Shielding: 2 layers, aluminum foil and tinned copper braid Operating temperature: -35 to +80C Mechanical specifications: Cable diameter: 6.10 mm Center conductor: 1.42 mm Dielectric: 3.81 mm Second shield: 4.52 mm Bend radius: 20 mm Attenuation in dB/100 m: 150 MHz: 9.8; 220 MHz: 12.1; 900 MHz: 17.4; 1,500 MHz: 24.9; 1,800 MHz: 32.5; 2,000 MHz: 35.8; 2,500 MHz: 42.3; 5,800 MHz: 66.9. Assembled, fully tested and packaged in the EU. Standards and certifications: CE (EN 50117-1:2002, EN 50289-1-6:2002), RoHS and CPR Eca.
