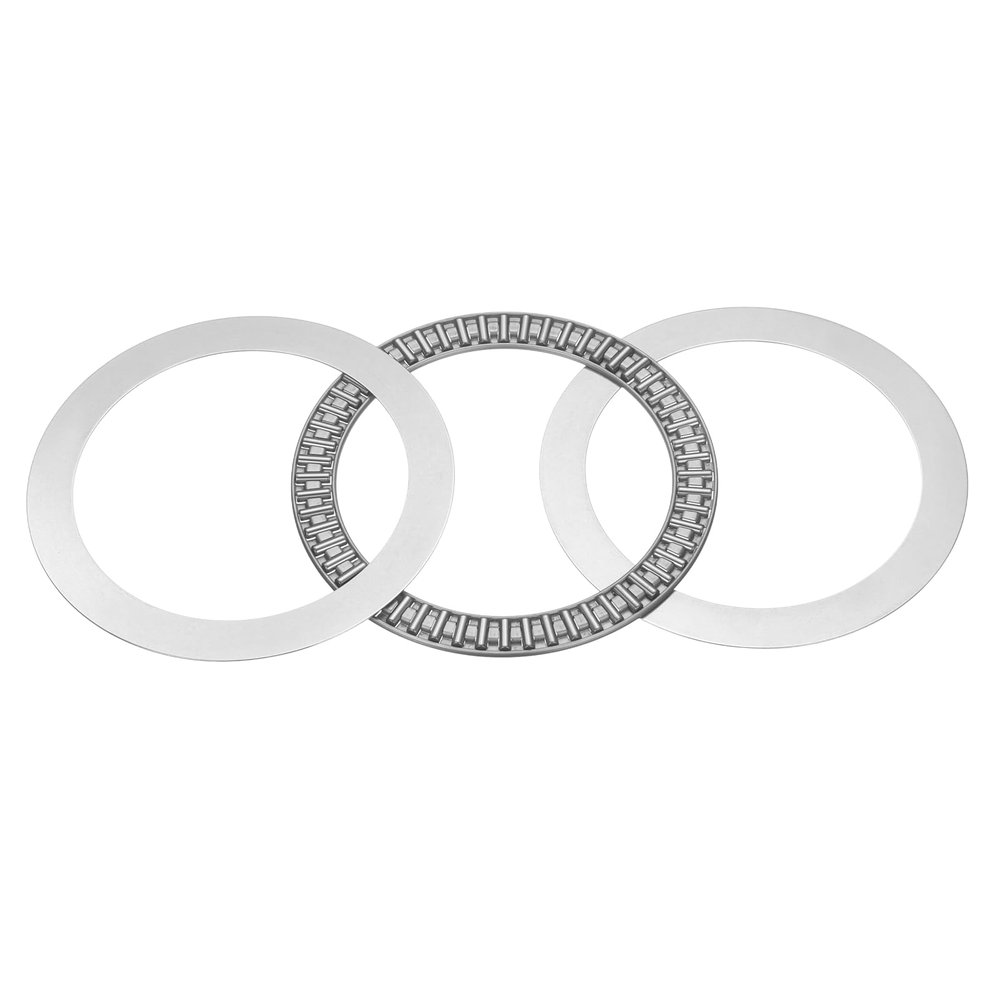

QUARKZMAN AXK140180 Thrust Needle Roller Bearing with 2 Washers, Chrome Steel, 140 mm ID, 180 mm OD, 7 mm Thick

Description

• MODEL - Bearing type: AXK140180 (I.D. = 140 mm, O.D. = 180 mm, thickness = 7 mm); washer type: AS140180
• MATERIAL - Chrome steel rollers for heat resistance and durability under high loads; steel cage and evenly distributed precision-ground needle rollers reduce friction, vibration, and noise
• WASHERS - Includes 2 washers for applications where adjacent machine components cannot serve as raceways
• PERFORMANCE - Static load rating: 138 kN; dynamic load rating: 900 kN; maximum speed: 1,800 rpm
• APPLICATION - Used in various applications, from agricultural machinery and conveying equipment to robots, elevators, rolling mills, ship rudder shafts, and more

These thrust needle roller bearings provide a high degree of rigidity with minimal axial space requirements. They have a smaller cross-section than standard thrust bearings for use in confined spaces. These bearings are designed for heavy axial loads and peak loads due to the small diameter variation of the rollers within an assembly. AXK thrust bearings can be combined with AS-series washers when adjacent components cannot serve as raceways. Made of hardened spring steel, the washers are polished on both sides and can be used as raceways. Roller bearings are used in various applications, from agricultural machinery and conveying equipment to robots, elevators, rolling mills, ship rudder shafts, and more. Specifications: Bearing type: AXK140180 Bearing washer type: AS140180 Needle roller material: Chrome steel (GCr15) Cage material: ST14 steel Bearing washer material: 65Mn spring steel Inside diameter: 140 mm Outside diameter (D): 180 mm Washer thickness: 5 mm Overall thickness (with washers): 7 mm Dynamic load rating (Cr): 900 kN Static load rating (Cor): 138 kN Maximum speed (l): 1,800 rpm Package contents: 1 x bearing 2 x washers
