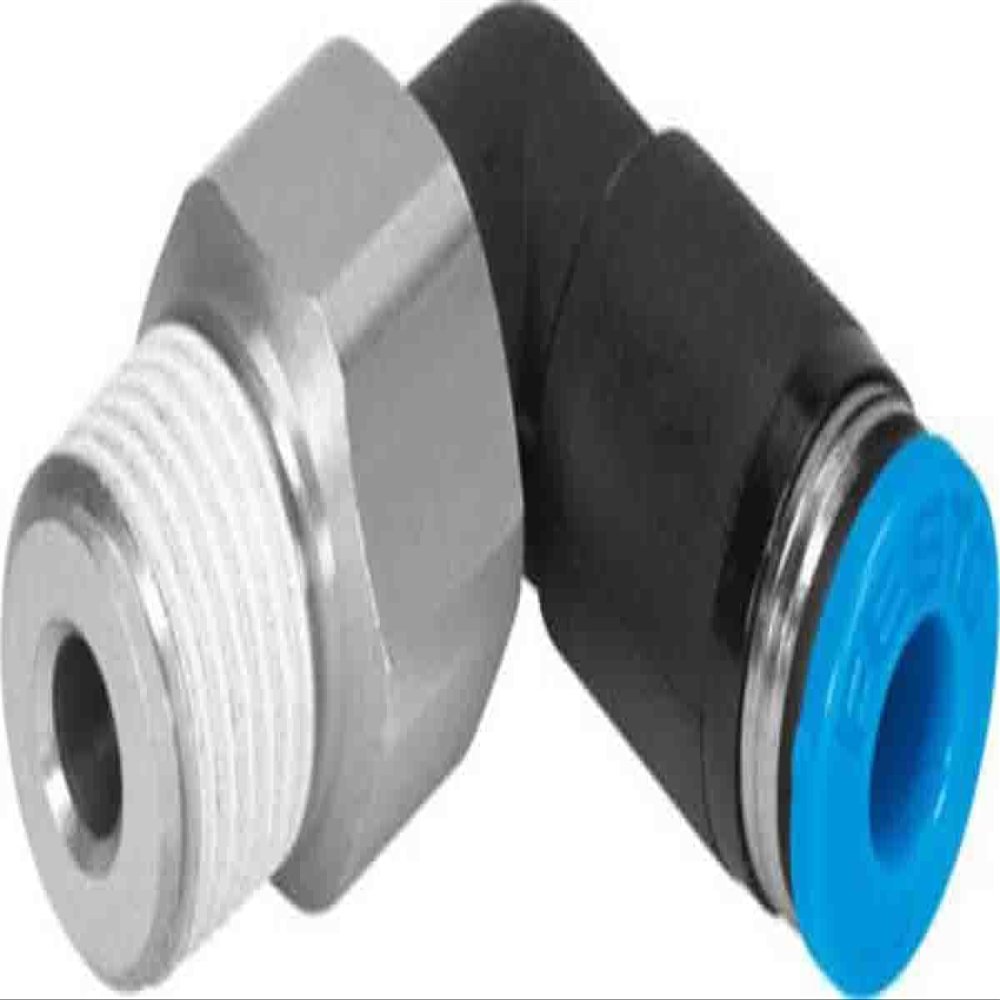

QSRL-1/2-12 (153418) L Swivel Push-In Fitting, Standard, 7.4 mm

Description

• Push-pull design
• Operating pressure: -0.95 to 6 bar
• Compressed air according to ISO 8573-1:2010 [7:-:-]
• Ambient temperature: 0 to 60 C
• R1/2 male thread
• For 12 mm hose outside diameter
• PBT housing with blue release ring
• Weight: 90.0 g

Design: Standard Nominal size: 7.4 mm Installation position: Any Design principle: Push-pull principle Operating pressure over the complete temperature range: -0.95 to 6 bar Temperature-dependent operating pressure: -0.95 to 14 bar Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-] Operating and control medium note: Filtered operation possible Corrosion resistance class KBK: 1 low corrosion stress Ambient temperature: 0 to 60 C Maritime classification: See certificate Product weight: 90.0 g Pneumatic connection 1: R1/2 male thread Pneumatic connection 2: For hose with a 12 mm outside diameter Release ring color: Blue Material note: RoHS compliant Housing material: PBT Release ring material: POM Hose seal material: NBR Hose clamping segment material: High-alloy stainless steel Seal type on the threaded shank: Coating Maximum tightening torque: 28.0 Nm Maximum rotational speed: 250 revolutions Maximum radial torque: 0.025 Nm
