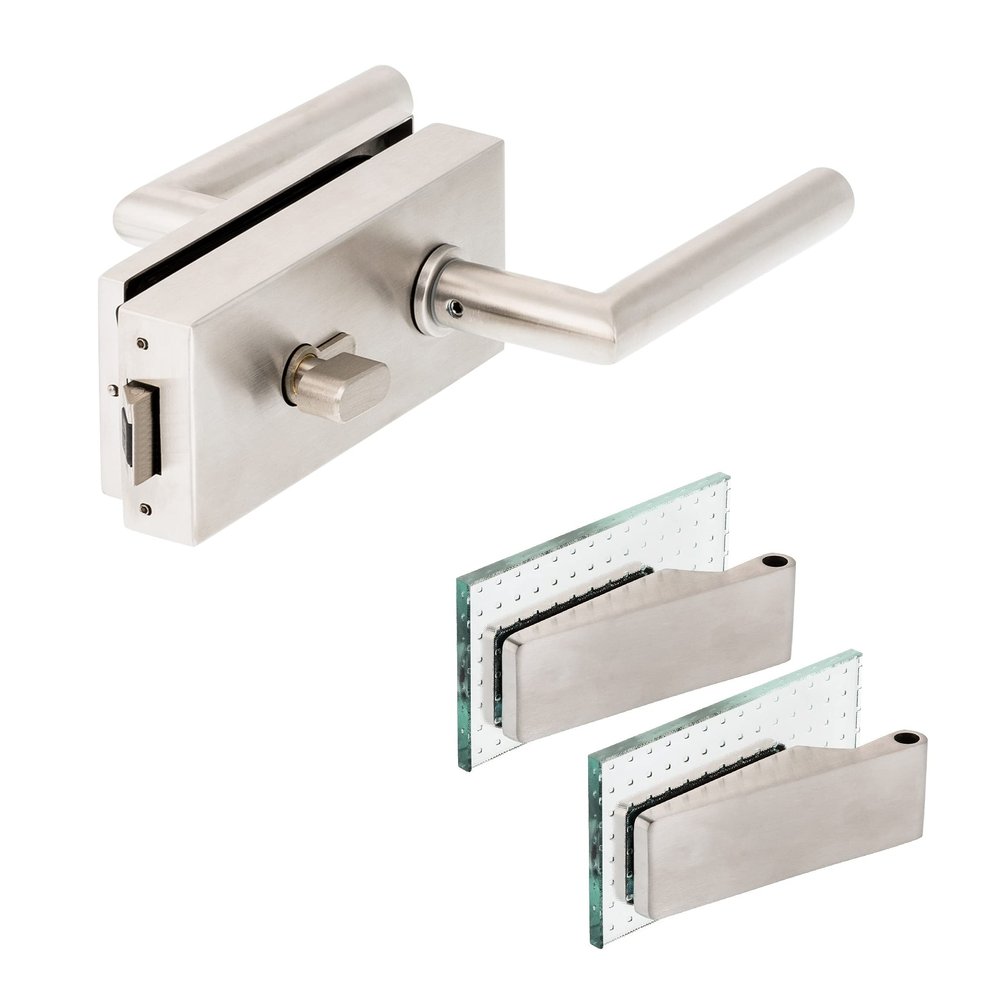

Q Glass Door Hardware Set, Stainless Steel, WC/PZ Lock with 2-Piece Hinges, Inward-Opening

Description

• Profile-cylinder (PZ) lock with WC thumbturn cylinder
• 2-piece hinges with horizontal studio drilling
• Square Q glass door lock, brushed matte stainless steel; suitable for DIN left- and right-hand doors
• Glass door lock with stainless steel-look hinges for 8 mm glass
• Rear handle hole; spacer sleeves for 16 mm and 18 mm hole components
• Spring-loaded follower, silent latch, compression spring, quiet lock mechanism, and decorative sleeves
• Load capacity per pair of hinges: 45 kg
• Suitable for door frames with a 24 mm rebate depth

Solid stainless steel glass door lock with a metal lever mechanism. Only the latch insert and slide are made of plastic, which ensures quieter closing. The precisely fitted built-in spring-loaded follower provides virtually no lever play. Instead of a susceptible tension spring, the lock uses a much more effective compression spring. After the lever is operated, the strong compression spring returns to its original position, relieving the spring from tension and reducing the risk of spring breakage. Both lock covers have an internal holder at the end so they do not protrude from the glass door leaf. The included adapter rings for 16 mm and 18 mm lever sleeves allow other handle pairs to be combined with the glass door lock. The high-quality glass door hardware set fits standard glass doors with studio drillings, meaning two glass door holes positioned next to each other, as shown in the drilling diagram. It is suitable for 8 mm glass thickness; 10 mm is available on request. Included: Q glass door lock with PZ and thumbturn cylinder, one New Orleans lever pair, one square pair of studio hinges, adapter rings for 16 mm and 18 mm lever sleeves, two decorative sleeves, German installation instructions, and mounting hardware. Frame parts are not included.
