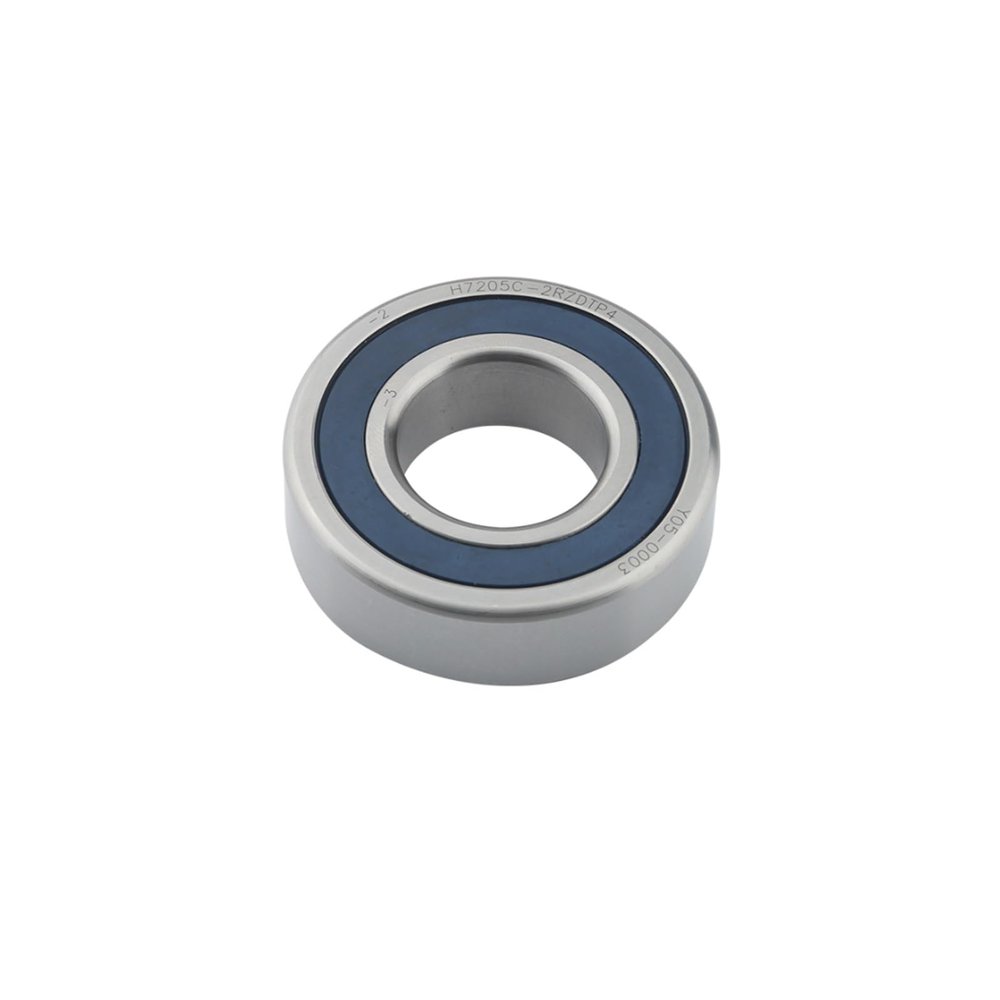

PWQBABJWL P4/P5 DT CNC Machine Tool Spindle Bearings 7002/7003/7004/7005/7007/7008C Sealed Angular Contact Ball Bearings (7003-2RZ-P5, Single)

Description

• Bearings | Applications: Suitable for mechanical and electrical applications in aerospace, automotive, trucking, mechanical engineering, CNC machine tools, and many other industries.
• Bearing rings: Includes inner and outer rings made from high-quality steel to effectively extend bearing service life.
• Rolling elements: Transfer the load between the inner and outer rings.
• Cage: Reduces frictional heat, optimizes load distribution, and allows convenient disassembly.
• Integral seal: Significantly extends bearing life, retains lubricant in the bearing, and keeps contaminants out.

Bearings There are three pairing methods for angular contact ball bearings: tandem arrangement (DT), back-to-back arrangement (DB), and face-to-face arrangement (DF). The most common are DT and DB pairings. In tandem (DT): 1. The two bearings are identical and installed in the same direction. 2. Can carry radial loads. 3. Has limited self-alignment and limited ability to withstand higher tilting moments. Back-to-back (DB): 1. Symmetrical installation. 2. Can carry radial loads. 3. Can carry axial loads in both directions. 4. Can withstand a high tilting moment. Face-to-face (DF): 1. Symmetrical installation. 2. Can carry radial loads. 3. Can carry axial loads in both directions. 4. Has limited self-alignment and limited ability to withstand a high tilting moment. Bearings are the heart of machinery. Choosing a suitable bearing can significantly improve the production efficiency of mechanical equipment. High-quality bearings reduce friction and offer high temperature resistance during high-speed and overload operation. They extend bearing life and increase speed. Deep groove ball bearings are products developed for high hardness, high load capacity, high rigidity, and high precision. They provide lower noise, higher load capacity, and greater cost-effectiveness, meeting the requirements of high-quality equipment that is not easy to disassemble. Rubber dust shield Both sides feature rubber dust shields, and the bearings are factory-filled with grease. Rubber cover seal: Dustproof and resistant to liquids and foreign matter, with good damping performance; suitable for harsh environments. Good wear resistance at high speeds. Strict product design and manufacturing processes provide higher precision and less friction. Low friction coefficient and high precision. Higher speed and greater wear resistance for high...
