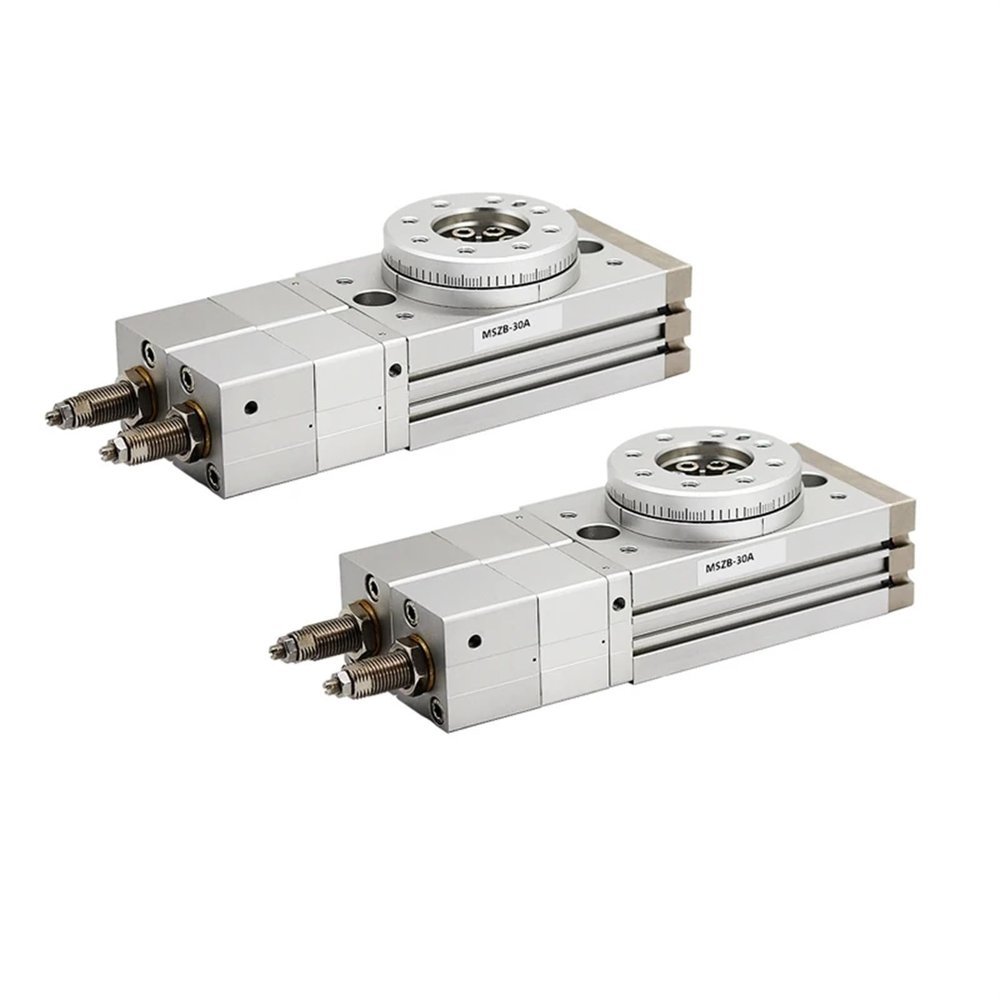

PRXFRWOW Three-Position Rotary Cylinder MSZB30A/MSZB50A, 90° Gear Cylinder (MSZB50A)

Description

• Cylinder
• Air cylinder
• Air cylinder

There is no restriction on the products installation orientation. If the gravitational force acting on the load is in the direction of rotation of the rotary table, the rotational speed will be unstable. The intake throttle is used especially for speed control when moving from the end position to the center position. If this direction of movement coincides with the direction of gravity, gravitational acceleration cannot be suppressed, resulting in an impact when stopping. Proper adjustment of the intermediate position can reduce backlash in the direction of rotation of the rotary table. However, slight backlash may develop as the number of operations increases. The issue with use is that the intermediate position must then be readjusted. Operating principle Use a 3-position, 5-way solenoid valve. In the center position of the solenoid valve, all ports are supplied with air. Since the pressure on the left and right sides of the rotary piston is equal, no thrust is generated. Under the thrust of the direct-acting piston, it moves to the center position. The two direct-acting pistons and the rotary-side piston stop when they come into contact.
