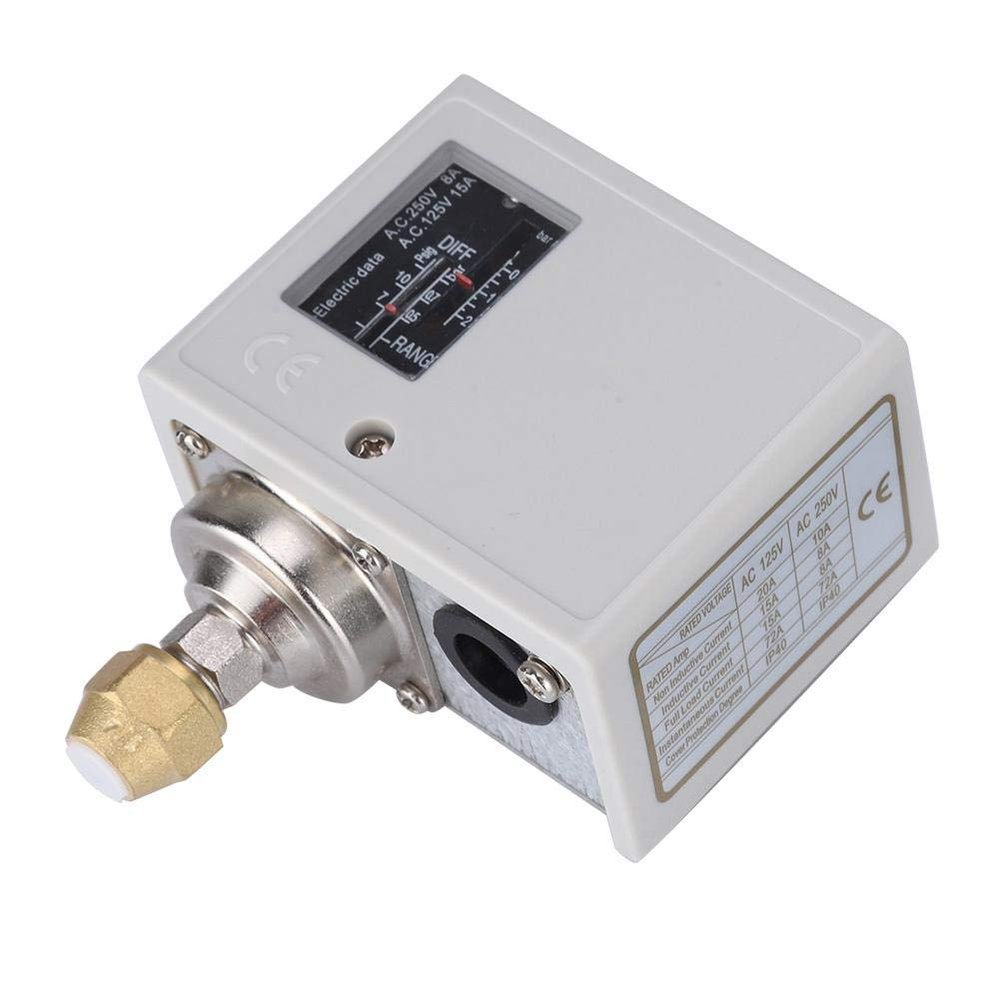

Pressure Switch, 24V–380V Water Pump Electronic Pressure Controller for Air-Water Compressors

Description

• SPC-series pressure controller for automatic high- and low-pressure limit control in refrigeration or air-conditioning systems.
• Suitable for air, liquids, and other noncorrosive media.
• Standard mounting bracket simplifies installation.
• SPDT switch provides reliable contact switching.
• Standard model: phosphor-copper pressure bellows and brass pressure connection.
• Ammonia refrigerant model: stainless-steel bellows and pressure connection.

Functions: The SPC-series pressure controller is used to control high- and low-pressure limits in automatic refrigeration or air-conditioning systems. It is suitable for air, liquids, and other noncorrosive media. The standard mounting bracket simplifies installation, and the SPDT switch provides reliable contact switching. The standard model has phosphor-copper pressure bellows and a brass pressure connection. The ammonia refrigerant model has stainless-steel bellows and a stainless-steel pressure connection. Specifications: Noninductive current: 20 A; full-load current: 15 A; instantaneous current: 72 A at a rated voltage of 125 V AC. Noninductive current: 10 A; full-load current: 8 A; instantaneous current: 72 A at a rated voltage of 250 V AC. Thread: G thread Pressure control range: -0.5 bar minimum to 2 bar maximum Differential pressure adjustment range: 0.2 bar minimum to 0.7 bar maximum Maximum air-tightness test pressure: 16.5 bar Supply voltage: 24 V380 V Microswitch service life: 100,000 operations Weight: approximately 397 g Refrigerant/media: air, liquids, and other noncorrosive media Application: Controls the pressure difference between the liquid line and return line in water and oil systems, including air-conditioning systems and other specified locations. Package contents: 1 x Pressure controller 1 x Mounting bracket 1 x Instruction manual 4 x Screws
