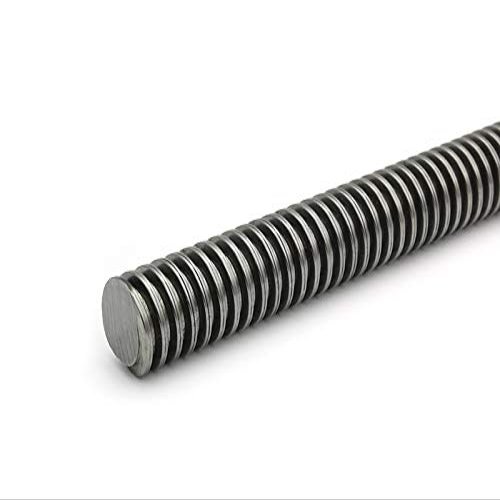

Precision Trapezoidal Lead Screw RPTS 30x6 Right-Hand, 200 mm

Description

• RPTS 30x6 right-hand trapezoidal thread
• Cut length: 200 mm
• Rolled thread according to ISO 2901/2903 and DIN 103
• Thread quality: 7e
• Material: C35/C45

Quality product from a leading European manufacturer! Technical data: Thread: 30x6 right-hand, rolled, according to ISO 2901/2903 and DIN 103 Pitch (P): 6 mm Diameter (D): 30 mm Thread quality: 7e Outside diameter (d): min. 29.625 mm / max. 30 mm Flank diameter (d2): min. 26.547 mm / max. 26.882 mm Core diameter (d3): min. 21.681 mm / max. 23 mm Lead angle: 405 Pitch accuracy over 300 mm: 70 m Straightness deviation over 300 mm: max. 0.2 mm Weight: 4.358 kg/m Material: C35/C45
