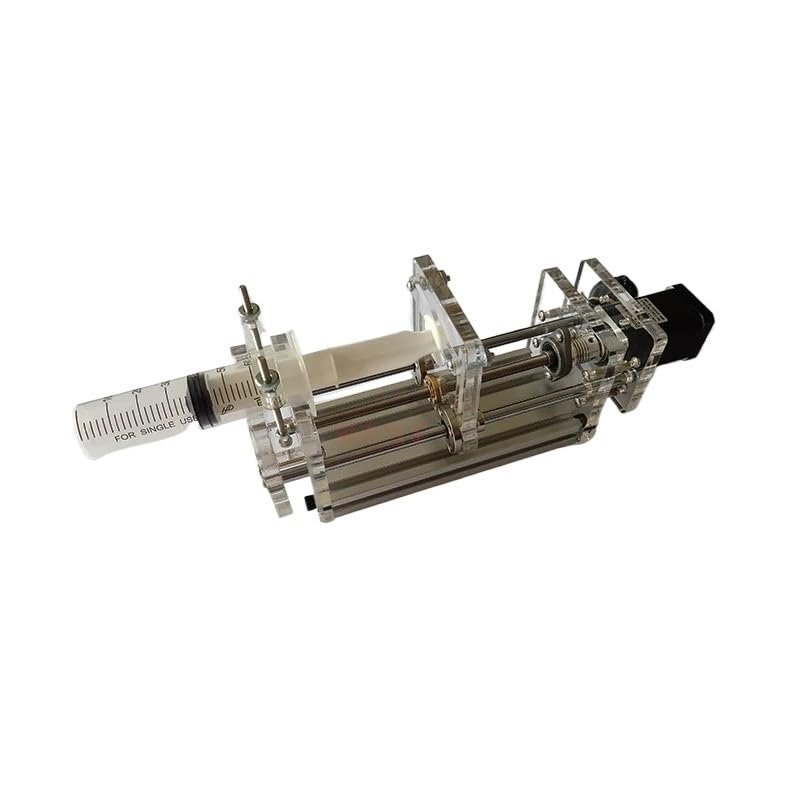

Precision Benchtop Syringe Pump, Laboratory Micropump

Description

• Clamp secured by the pressure block and tightened with an M4 hand nut.
• 42-step motor with high torque; single rotation set to 3,200 steps.
• Adjustable piston holder accommodates syringes of different specifications; generally not suitable when pushing only is required.
• 2022 controller with freely switchable mm/time and mL/time units.
• Compatible with front and rear limit switches, external control switches, and foot pedals.
• Buzzer included; supports computer, USB, TTL, RS-232, RS-485, PLC, mobile phone, and CAN control.

Specifications: Product name: Precision laboratory micropump Type: Infusion and extraction Linear speed 1: 0.010.21 mm/s Linear speed 2: 0.01150 mm/min Linear speed 3: 0.0199.99 mm/h Flow rate 1: 0.012.99 mL/s Flow rate 2: 0.0199.99 mL/min Flow rate 3: 0.0199.99 mL/h Resolution accuracy (1 mm travel): 0.003125 mm Timing: 00:00:0099:59:59 (hours/minutes/seconds) Push-pull force: 81 N Stroke: 160 mm Control modes: automatic/manual/communication control <50 mm (1200 mL syringe) Dimensions: 290 100 125 mm Power supply: 12 V/3 A Weight: 1.5 kg
