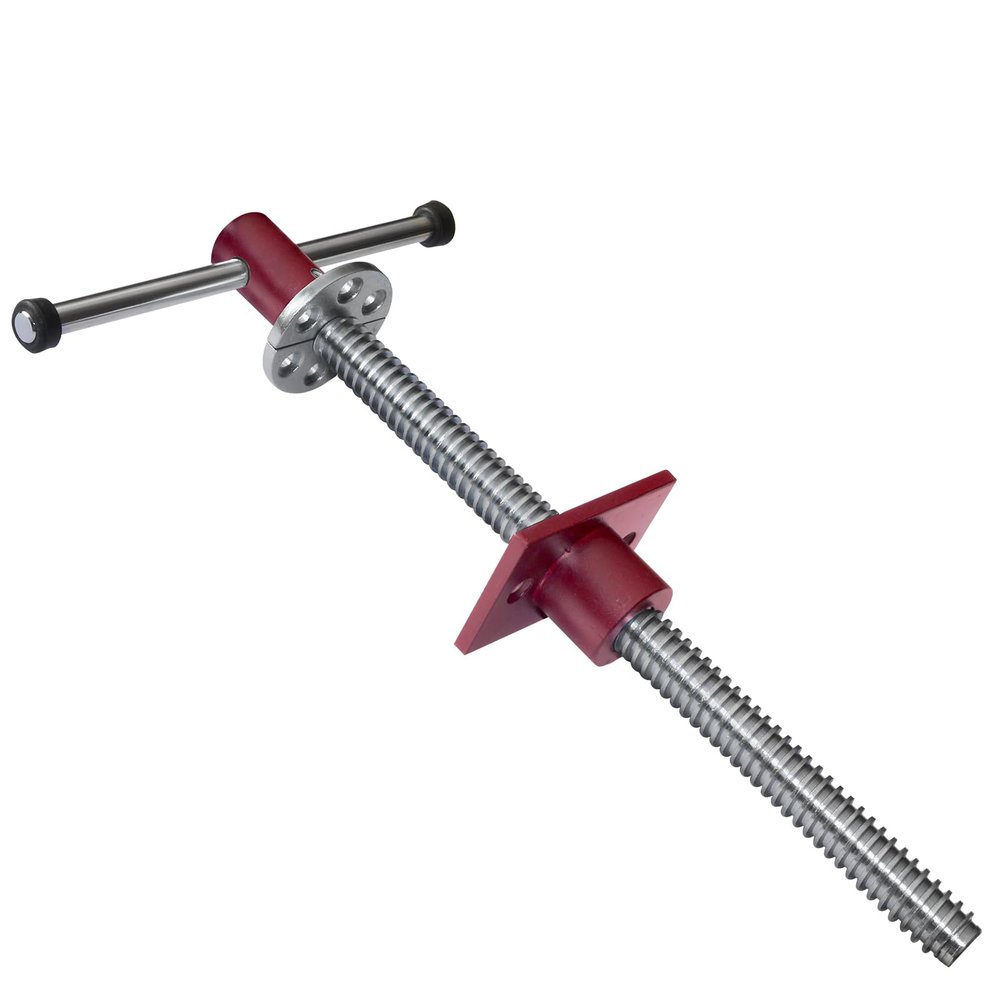

Piher Bench Vise Spindle, 26 mm, Type 58026

Description

• Piher heavy-duty clamp, made in Spain, with clamping force of up to 900 kg.
• 9260 steel provides maximum pressure throughout the entire working process.
• Ideal for furniture making, gluing, assembly, carpentry, and metalworking.
• Fixed and sliding jaws are made of spheroidal graphite cast iron for stability.
• Fully protected double left-/right-hand thread doubles the clamping speed.
• Cross notch in the fixed jaw provides maximum grip for angled workpieces or pipes.
• Spring-loaded brake keeps the sliding jaw firmly in its initial position.
• 20 cm span, 900 kg clamping force, 8.5 cm throat depth, 30 x 8 mm rail, 1.47 kg.
• 30 cm span, 900 kg clamping force, 8.5 cm throat depth, 30 x 8 mm rail, 1.67 kg.
• 40 cm span, 900 kg clamping force, 8.5 cm throat depth, 30 x 8 mm rail, 1.84 kg.
• 60 cm span, 900 kg clamping force, 8.5 cm throat depth, 30 x 8 mm rail, 2.23 kg.

Piher bench vise spindle, 26 mm, Type 58026. High-quality Piher bench vise spindle made of forged C40 steel, made in Europe. This is a practical addition to your workbench and can help optimize various repair and fabrication projects. The kit does not include jaws or jaw protectors; these must or may be fabricated according to your requirements. Do not begin installation until the original spindle is available, as the manufacturer may not maintain or may slightly change the production dimensions. Specifications: A: 26 mm thread, 380 mm thread length; B: base plate, 100 x 65 x 8 mm; C: outer guide, 48 mm diameter, 38 mm length; total length of base plate (B) plus outer guide (C): 46 mm; D: handle, 260 mm long, 12 mm diameter; E: handle socket, 55 mm long, 38 mm; F: two-piece plate, 70 mm, 6 mm thick; G: mounting holes, 6.5 mm. Overall length: 440 mm. Steel hardness: 4551 HRC. Weight: 2.8 kg.
