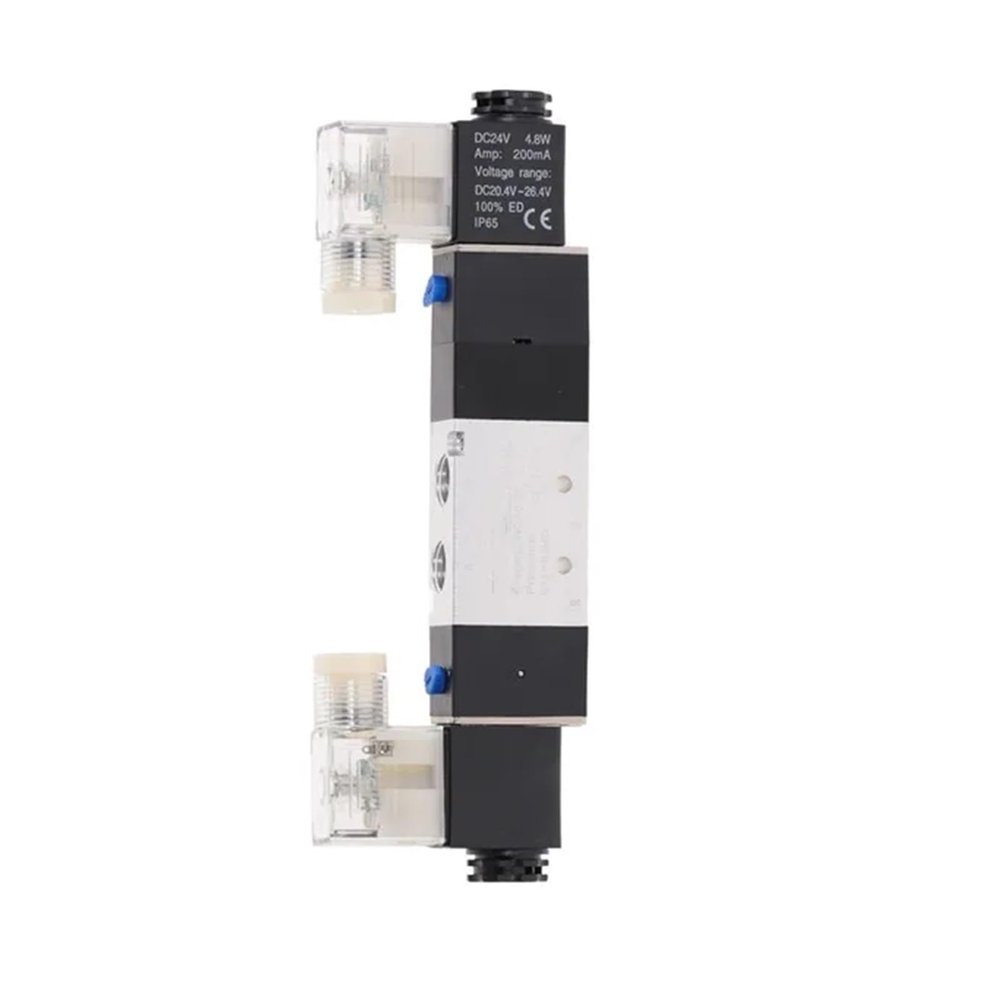

PHNOITPQ 4V220-08 5-Way 2-Position 1/4-Inch Pneumatic Solenoid Valve, AC110V

Description

• 5-way, 2-position solenoid valve
• Model: 4V220-08
• Available voltages: DC12V, DC24V, AC110V, AC220V
• Compatible connection sizes: 4 mm, 6 mm, 8 mm, 10 mm, and 12 mm
• Working medium: air filtered to 40 microns
• Working pressure: 0.150.8 MPa
• Maximum pressure resistance: 1.2 MPa
• Operating temperature: 550C
• Voltage range: 10%
• Power consumption: AC 5.5 VA; DC 4.8 W
• Insulation class F; protection rating IP65
• Wiring: lead wire or connector type
• Maximum operating frequency: 3 cycles per second
• Minimum energizing time: 0.05 seconds

PHNOITPQ 4V220-08 5-way, 2-position pneumatic solenoid valve for 1/4-inch connections. It is designed for use with air filtered to 40 microns and operates at 0.150.8 MPa. The valve is available in DC12V, DC24V, AC110V, and AC220V versions, with compatible 4 mm, 6 mm, 8 mm, 10 mm, and 12 mm connection sizes.
