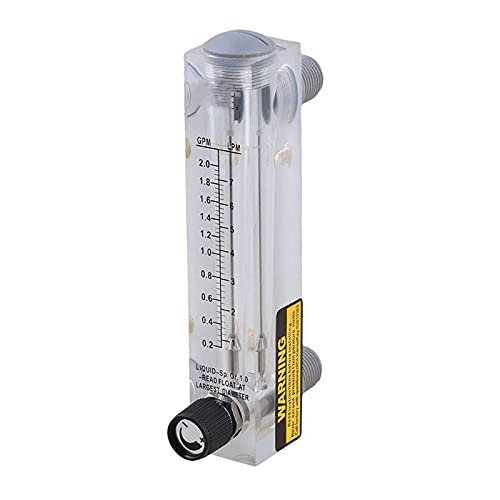

Panel-Type Water Flow Meter, 0.22 GPM/17 LPM, Acrylic, Adjustable Knob, 1/2 in Male and 1/4 in Female Threads

Description

• Made of transparent acrylic plexiglass; withstands pressure up to 1.5 MPa.
• Adjustable control valve for setting the flow rate as needed.
• Panel design with scale markings for convenient, intuitive reading.
• Suitable for chemical, petroleum, light industrial, medical, fertilizer, food, environmental protection, and scientific research applications.
• Must be installed vertically without noticeable tilting.

Features: The panel-type design provides simple, convenient, and clear readings. The transparent acrylic material is lightweight and durable for long-term use. The flow range is large enough for some high-flow measurement applications. The plastic threaded material is rust-resistant and designed for a long service life. Specifications: Measuring medium: Liquid Thread type: 1/4 in female thread; 1/2 in male thread Thread material: Plastic Housing material: Acrylic plexiglass Float material: Stainless steel Material: ABS or stainless steel Type: Panel type Operating pressure: 1.5 MPa Accuracy: 4% Operating temperature: 060 C Adjustable: Yes Installation and use: Install the flow meter vertically without noticeable tilting. The installation height should allow convenient float reading. When reading, the line of sight should be level with the float. As a general guideline, the optimal flow rate is 50%70% of the meter's maximum flow rate; avoid operating at the highest scale value. Install a straight pipe section measuring five times the instrument diameter at both the upstream inlet and downstream outlet. The liquid pressure at the flow meter must be stable. If the liquid is too unstable, the float may fluctuate and accurate measurement may not be possible. A buffer or other component should be installed before the flow meter. The angle between the flow meter's centerline and the vertical line should not exceed 5 degrees. This product is made of plexiglass and is not suitable for organic solutions or corrosive gases and liquids. Package contents: 1 Liquid flow meter.
