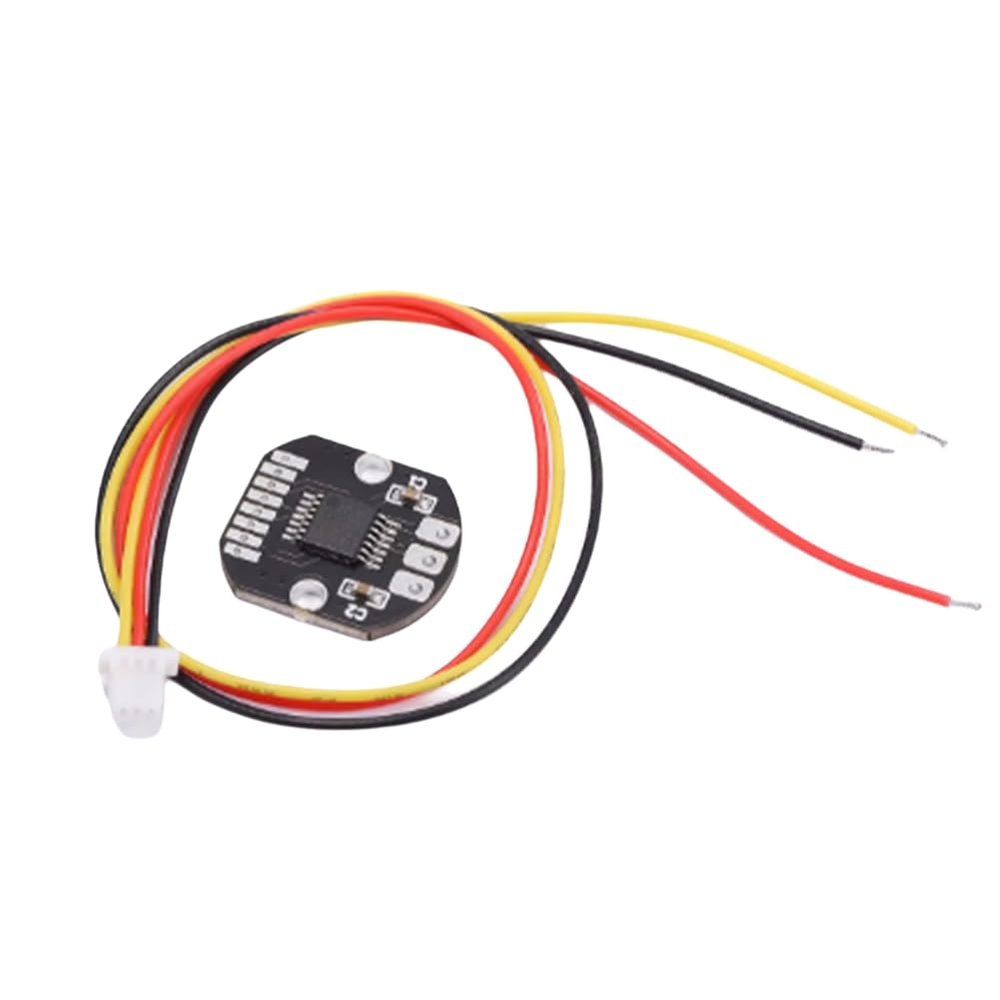

Osmond AS5048A 14-Bit Magnetic Encoder, PWM/SPI-Compatible

Description

• High-precision 14-bit AS5048A encoder/encoder disk
• Absolute angular measurement over a full 360 rotation with PWM output and contactless magnetic sensing
• Dedicated pan-tilt encoder disk/encoder motor
• Analog 14-bit measurement front end with 0.0219 resolution
• For shaft applications with a simple two-pole magnet rotating above or below the sensor IC
• Zero position programmable using simple SPI commands
• 14-bit absolute magnetic angle position: 16,384 positions per rotation, read digitally via SPI

The Osmond AS5048 provides PWM output and an SPI or unspecified interface for absolute angle measurement with microcontrollers. Instead of accounting for the chip's initial zero position and the exact assignment of the magnet poles during mechanical construction, the zero position can be programmed into the AS5048's internal memory using simple SPI or unspecified interface commands; no special programming equipment is required. The AS5048 also has very high operating tolerances, including deviations in the centered position between the chip and the opposing magnet, deviations in the air gap between the chip and opposing magnet, and temperature fluctuations from -40C to +150C. The AS5048 magnetic rotary encoder provides more precise measurements than previous magnetic rotary encoders from austriamicrosystems. Its analog 14-bit front end enables measurement resolutions of up to 0.0219. Through linearization and averaging by the microcontroller, angle measurements with an accuracy of 0.05 can be achieved. Color: Black Material: Printed circuit board Package contents: 1 x Magnetic encoder 1 x Cable Only the package contents listed above are included; other products are not included. Due to lighting reflections and screen differences, the color tone in the photos may differ slightly from that of the actual product. Permitted measurement error: +/- 13 cm.
