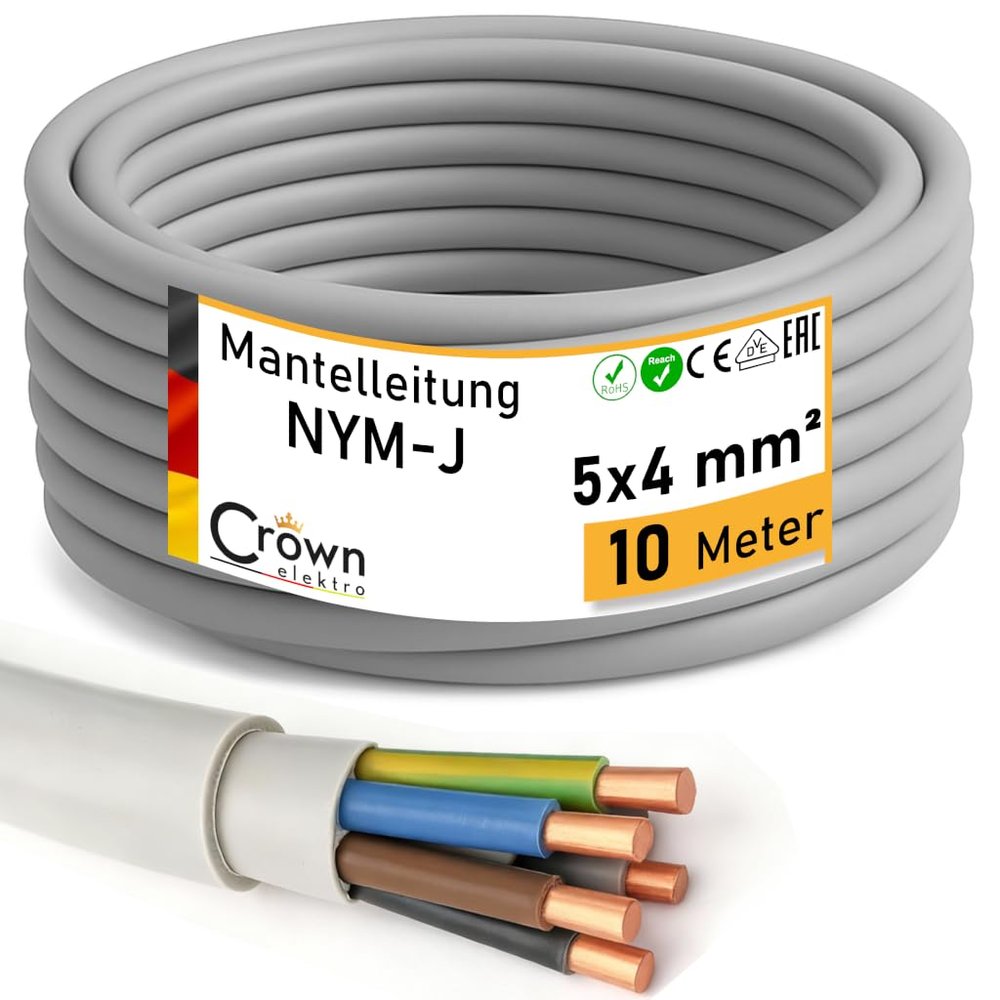

NYM-J 5x4 mm Cable - 10 m Sheathed Cable for Damp Rooms

Description

• Type: NYM-J 5x4 mm, 5-core power cable
• Conductor colors: blue, brown, gray, black, green/yellow
• Outer diameter: 14.5 mm 0.5 mm
• Voltage class: 300/500 V
• Standards: ISO DIN VDE 0250-204, IEC 228 and HD 383
• Flame behavior: flame propagation according to DIN EN 60332-1-2
• Suitable for installation above, on, in and under plaster in dry, damp and wet rooms, as well as in masonry and concrete
• Not suitable for embedded installation in vibrated, compacted or rammed concrete, or in the ground
• For outdoor use only when protected from direct sunlight; not approved for outdoor installation
• Delivery: 10 m cable supplied as one continuous coil
• Supplied by various German manufacturers, subject to availability

NYM-J 5x4 mm sheathed cable for use in dry, damp and wet rooms. It is suitable for installation above, on, in and under plaster, as well as in masonry and concrete, but not in vibrated, compacted or rammed concrete. The light-gray PVC jacket is easy to process, strip and shape, allowing the cable to be installed in confined spaces. NYM cables are not UV-resistant and must be protected from direct sunlight outdoors; they are not approved for outdoor installation or underground use. The conductors are made of copper for good electrical conductivity. Cable type: NYM-J 5x4 mm / 5x6 mm cable for damp rooms. Conductors: 5-core; colors: blue, brown, gray, black, green/yellow. Jacket: odorless PVC. Installation temperature: min. 5C to 70C. Operating temperature: -40C to 70C. Voltage class: 300/500 V. Maximum DC operating voltage: 825 V. Maximum AC operating voltage: 550 V. Flame behavior: flame propagation according to DIN EN 60332-1-2. Standards: ISO DIN VDE 0250-204, IEC 228 and HD 383. Manufacturer: various German brand manufacturers, supplied subject to availability. Delivery: cable length according to the selected length, supplied as one continuous coil.
