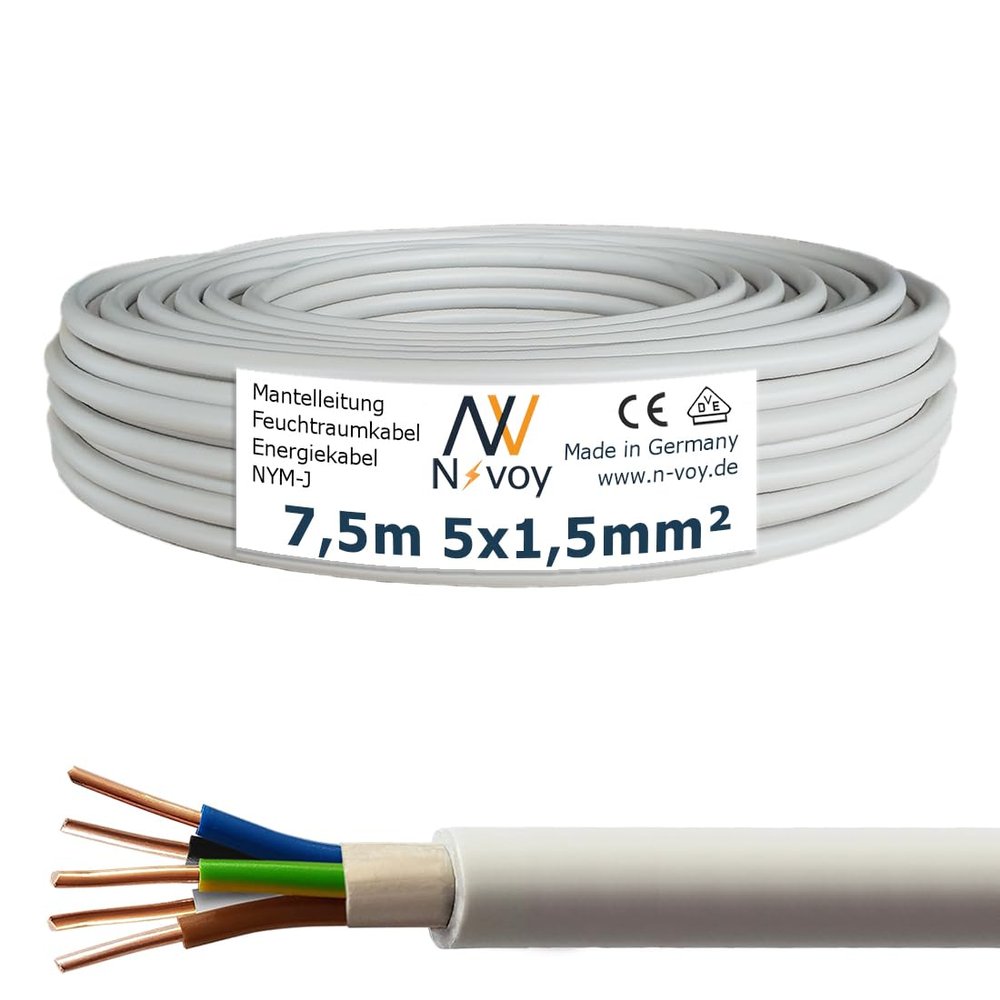

NYM-J 5×1.5 mm², 7.5 m Sheathed Installation Cable, Gray

Description

• 7.5 m NYM-J 51.5 mm sheathed cable for electrical installations
• 5 cores, each with a nominal cross-section of 1.5 mm and an approximate diameter of 1.381.4 mm
• Outer jacket diameter: approximately 10.1 0.4 mm
• Suitable for dry, damp, and wet rooms, as well as masonry, plaster, and concrete
• Suitable for outdoor use when protected from direct sunlight; not suitable for underground installation
• Maximum current: 16 A; maximum power: 3.5 kW at 220 V and 10.5 kW at 380 V
• Conductor colors: blue, brown, black, gray, and green/yellow
• Solid oxygen-free copper conductors; rigid conductors, not stranded
• Rated voltage: 300 V; 500 V for three-phase current; maximum conductor temperature: 70C
• Test AC voltage: 2,000 V; minimum bending radius: 4 the cable diameter
• Fire performance class EN 13501-6 Eca
• Includes one 7.5 m roll of gray NYM-J 51.5 mm electrical cable

Made in Germany. The NYM-J power cable is suitable for installation over, on, in, and under plaster, in dry, damp, and wet rooms, and in masonry or concrete. It may be used outdoors when protected from direct sunlight, but it is not suitable for installation in the ground. The rated voltage is 300 V, or 500 V for three-phase current, with a maximum conductor temperature of 70C. The test AC voltage is 2,000 V. The operating temperature range is -40C to 70C, and the installation temperature range is 5C to 50C. The cable has five cores, each with a 1.5 mm cross-section and an approximate diameter of 1.4 mm. The outer jacket diameter is approximately 10.1 0.4 mm. It complies with DIN VDE standards and uses solid OFC copper with approximately 99.95% purity. The rigid conductors are not stranded. Fire performance class: EN 13501-6 Eca. Minimum bending radius: 4 the cable diameter. Includes one 7.5 m roll of gray NYM-J 51.5 mm electrical cable.
