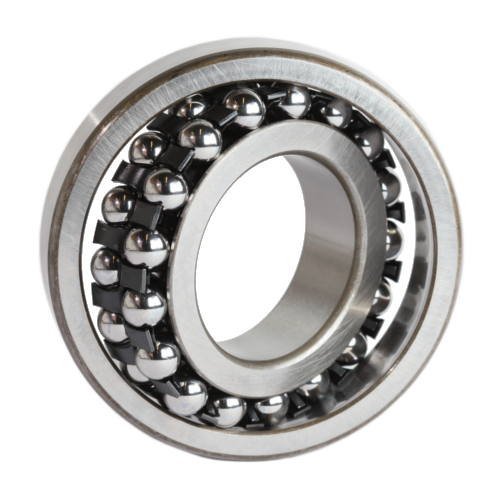

NSK 2314 C3 Self-Aligning Ball Bearing, 70 × 150 × 51 mm, Cylindrical Bore

Description

• With sheet steel cage and increased C3 internal clearance
• Dimensions: 70 mm inner diameter, 150 mm outer diameter, 51 mm width
• Can pivot around the bearing center to compensate for minor shaft and housing misalignment, such as from machining or installation errors
• If the manufacturer has not provided an EAN code, the item may temporarily be listed with a proprietary EAN code

The NSK self-aligning ball bearing has two rows of balls and a concave spherical raceway in the outer ring, whose center lies on the bearing axis. The inner ring, balls, and cage can therefore pivot to a certain extent. This allows minor misalignment of the shaft and housing to be compensated for. These bearings are used whenever alignment of the shaft and housing is difficult and the shaft may deflect. Due to the small contact angle, the axial load capacity is low. The permissible shaft misalignment is 4 to 7 degrees under normal loads. This point should be taken into account during design. NSK began operations as a manufacturer of rolling bearings in 1916. Since then, its product range and services have been expanded and improved for various industrial sectors. Today, NSK is one of the world's leading manufacturers of rolling bearings, linear technology components, and steering systems, with a presence on all continents. At its global research centers, NSK focuses on developing new technologies and optimizing quality. NSK is a leader in patent applications for mechanical engineering components. Technical information Manufacturer part number: 2314C3 Dimensions: 70 150 51 mm Seal: None Cage: Sheet steel cage Bore: Cylindrical C3 internal clearance: 3560 m Max. dynamic load rating (Cr): 111,000 N Max. static load rating (Cor): 37,500 N Max. speed with grease lubrication: 3,600 min Max. speed with oil lubrication: 4,500 min
