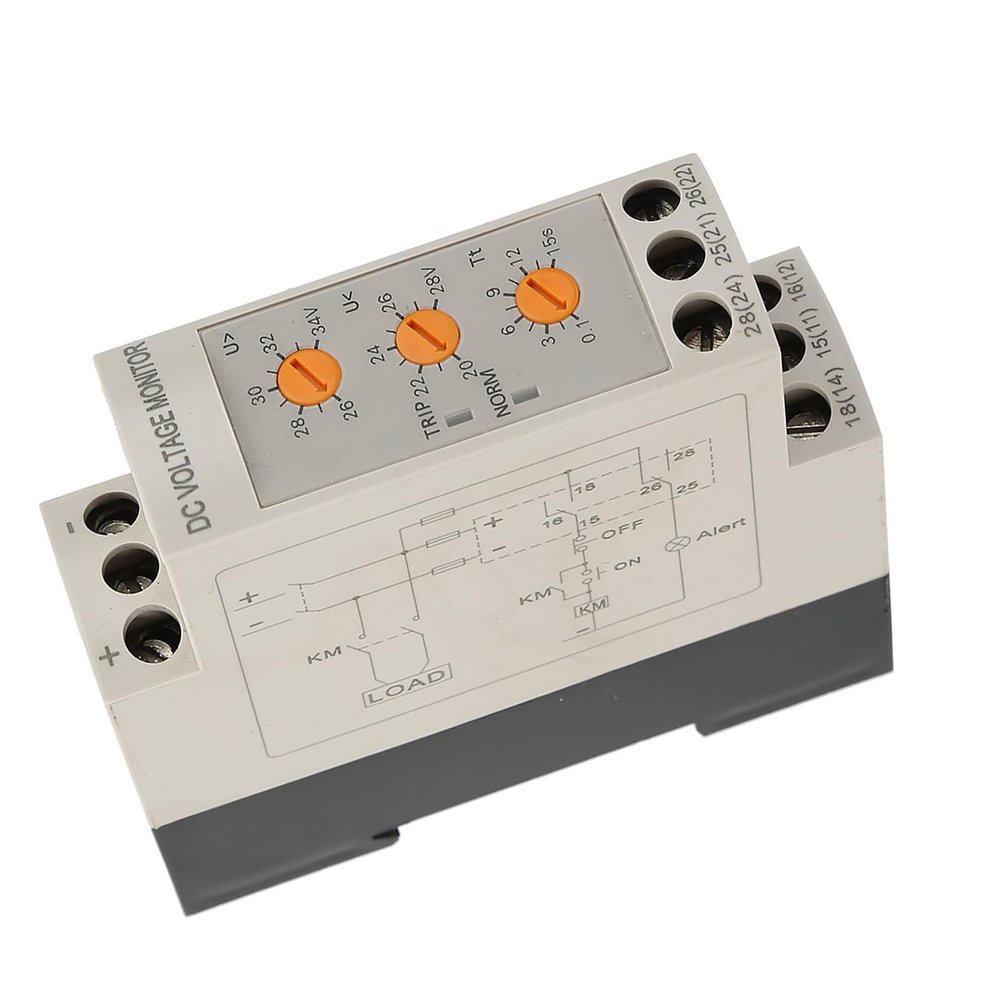

Naroote DC Overvoltage/Undervoltage Protection Relay, 12/24/36/48 V

Description

• Real-time voltage monitoring detects DC overvoltage and undervoltage faults.
• Modular design with 35 mm DIN-rail installation.
• Adjustable overvoltage and undervoltage thresholds for 12 V, 24 V, 36 V, and 48 V DC systems.
• Two sets of normally open and normally closed contacts; contact rating: 6 A at 250 VAC (resistive).
• No auxiliary power supply required; power is drawn directly from the monitored circuit.
• Two LED indicators display operating status.

Modular DC overvoltage and undervoltage protection relay for real-time monitoring of DC circuits. Both the overvoltage and undervoltage thresholds can be adjusted, and the action delay can be set from 0.1 to 15 seconds. The relay has two sets of normally open and normally closed contacts and is suitable for DC motors, batteries, UPS power supplies, DC switchgear, DC panels, and industrial control systems. Specifications: Protection functions: Overvoltage and undervoltage Model: DVRD-12/24/36/48, optional Rated voltage: DC 12 V/24 V/36 V/48 V, optional Monitored circuit: DC circuit Overvoltage adjustment range: DC 12 V: 1317 V; DC 24 V: 2634 V; DC 36 V: 3951 V; DC 48 V: 5268 V Undervoltage adjustment range: DC 12 V: 1014 V; DC 24 V: 2028 V; DC 36 V: 3042 V; DC 48 V: 4056 V Action delay range: 0.115 seconds Display mode: Normal/action status shown by 2 LED indicators Contact configuration: 2 sets of normally open and normally closed contacts Contact capacity: 6 A at 250 VAC, resistive Installation: 35 mm DIN rail Overall dimensions: Approx. 79 23 79 mm / 3.1 0.9 3.1 in Weight: Approx. 200 g / 7.1 oz Package contents: 1 overvoltage/undervoltage protection relay Note: The new and old versions of this product may be shipped at random. Please ensure this is acceptable before ordering.
