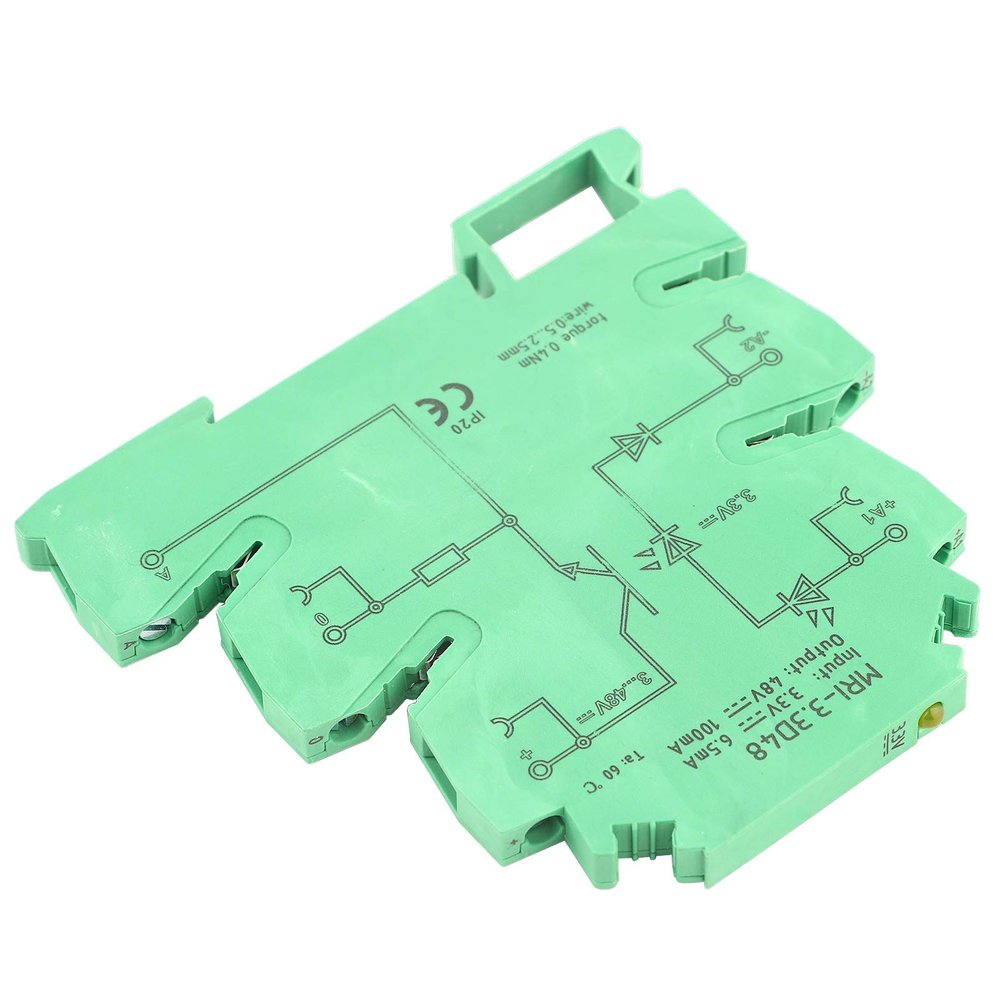

MRI-3.3D48 3.3V Optocoupler Relay Isolation Module, -20 to 60°C

Description

• DESIGN: Width is only 6.2 mm, saving 60% of installation space
• SPECIFICATIONS: Operating frequency up to 300 Hz; wear-free switching output: 348 V DC/100 mA
• APPLICATION: Internal input/output polarity protection circuit; maximum electrical isolation of 2.5 kVrms
• FEATURES: Plug-in bridge type; convenient DIN rail installation
• ADVANTAGE: Yellow LED indicator and clear terminal markings

Specifications: Model: MRI-230A48 Input voltage range: 3.3 VDC 10% Input current: 6 mA Output voltage range: 348 VDC Transmission frequency: 300 Hz Electrical level switch: "1" signal (H) 80%; "0" signal (L) 40% Maximum continuous current: 100 mA Maximum voltage drop: 0.9 V Input/output isolation voltage: 2.5 kV (50 Hz, 1 min) Ambient temperature: -20 to 60C Operating standards: IEC 60664, EN 50178, IEC 62103 Applicable wire: rigid: 0.22.5 mm; flexible: 0.22.5 mm; AWG: 2414 Weight: approx. 31 g/1.1 oz Package contents: 1 optocoupler isolation PLC relay
