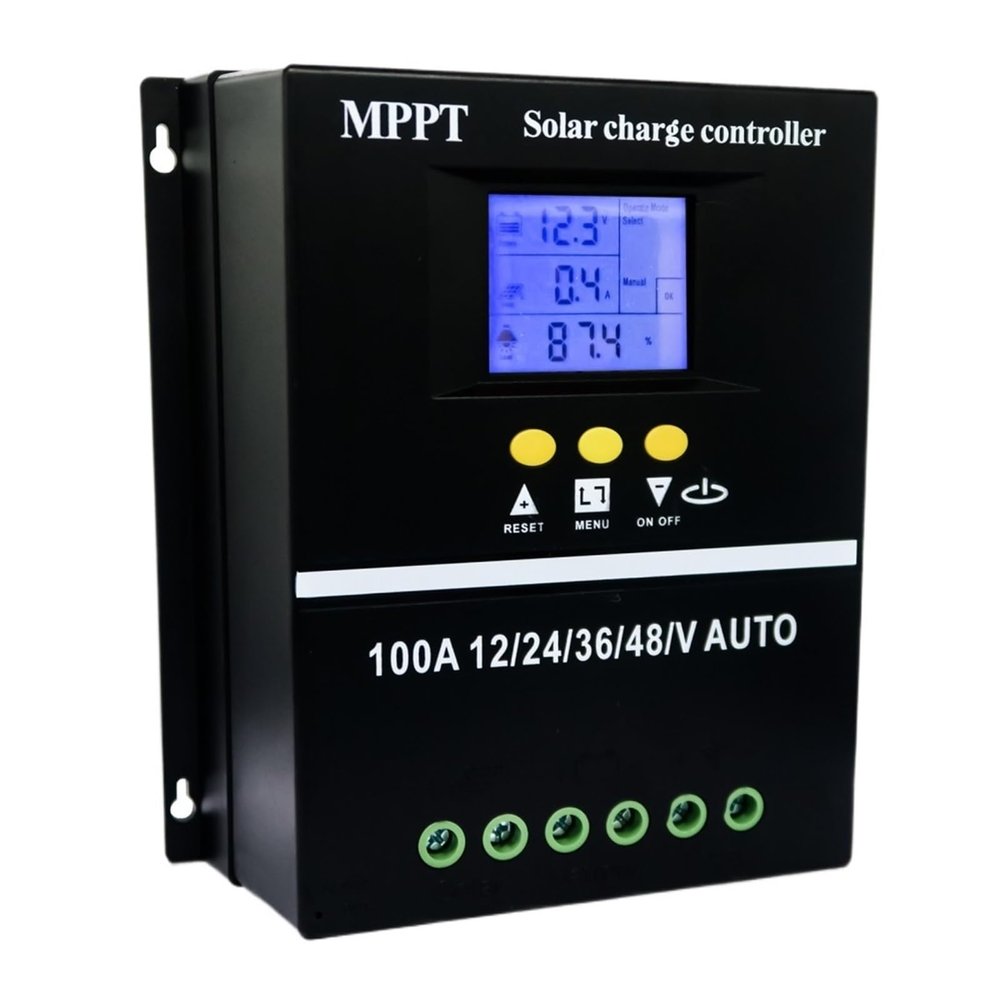

MPPT 100A Solar Charge Controller, 12V/24V/36V/48V, LCD, Dual USB

Description

• Automatically focuses MPPT tracking and charging for high efficiency.
• Automatically detects four voltage types: DC 12V/24V, DC 36V, and DC 48V.
• Large LCD displays battery and solar panel status, mode control, load output status, and parameters.
• Seven operating modes: charging, light control, light control plus timed delay, general control, manual control, timer, and test mode (factory use only).
• Time and parameter settings, unrestricted charging control, mode-dependent discharge control, undervoltage protection, and manual discharge stop.

Specifications

Current: 60A, 80A, or 100A (optional)
Input voltage: DC 12V/24V, DC 36V, DC 48V
Output voltage: DC 12V/24V, DC 36V, DC 48V, DC 5V/1.5A 2 USB
Operating temperature: -25 to 55
Product size: 198 180 mm / 7.80 7.09 in
Package size: 195 184 66 mm / 7.68 7.24 2.60 in

Discharge control modes:

Charging mode: No discharge under any circumstances.

Light control mode: Starts discharge with a 10-minute delay when night is detected; stops discharge with a 10-minute delay when daytime is detected.

Light control plus timed delay mode: Starts discharge after a 10-minute delay and begins the timer countdown; stops discharge when the timer reaches 0. The maximum delay time is 23:59.

General control mode: Maintains the discharge state when no errors are detected.

Manual control mode: Use the button to start or stop discharge.

Timer mode: Turns discharge on or off at regular intervals.

Test mode: Similar to light control plus timed delay mode, but with a shorter delay time (factory use only).

Compatible with:
12V battery and 1528V solar panel;
24V battery and 3055V solar panel;
36V battery and 4568V solar panel;
48V battery and 6098V solar panel.

How to connect the controller:
1. Connect the battery to the controller. Installing a circuit breaker between the controller and battery is recommended to protect the controller and battery. When the controller is connected to the battery, the LCD displays the parameters; then set the battery type.
2. If a DC output is needed to control the load, first set the output control mode, then turn on the disconnect switch for the DC output.
3. Connect the PV solar panel to the controller. When the PV input voltage is within the controller's charging operating range, the controller switches to charging mode.
4. Adding a circuit breaker between the controller, battery, solar panel, and load is recommended to provide protection.

Correct installation sequence: (1) Battery (2) Solar panels (3) DC load.
