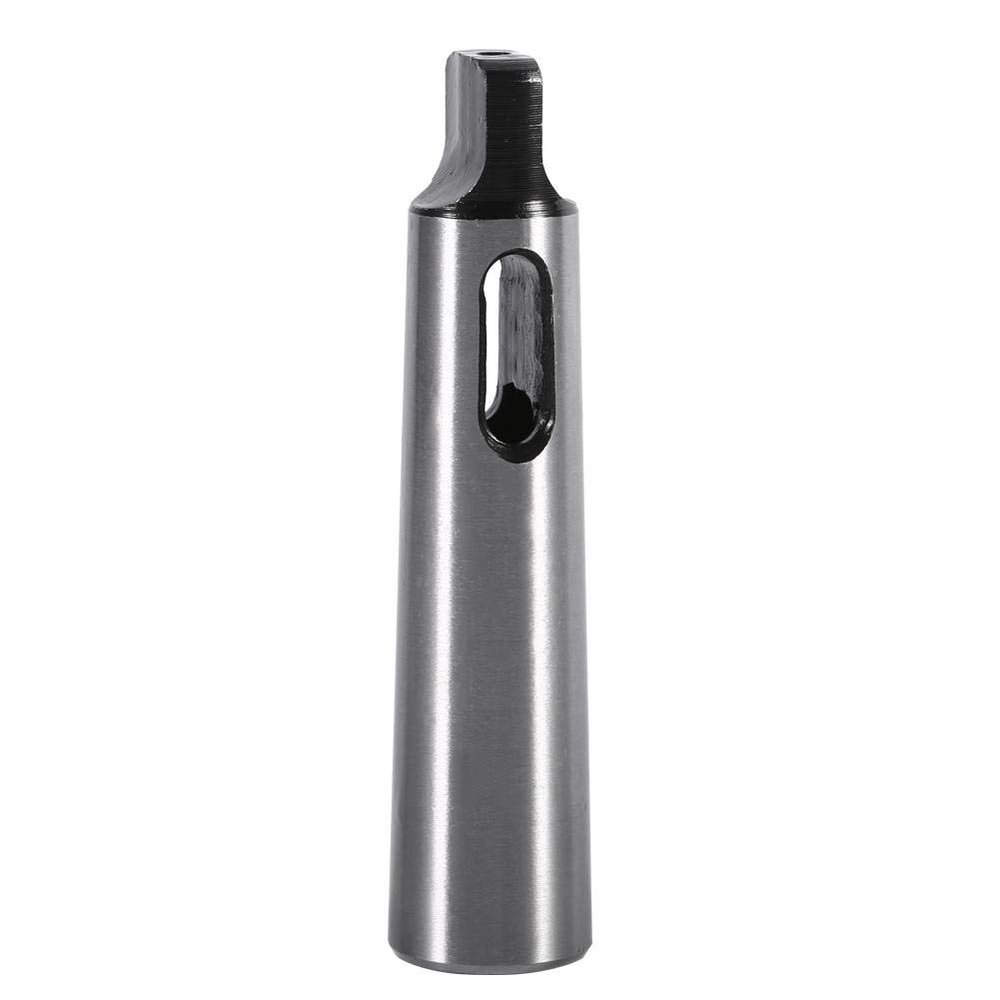

Morse Taper Drill Sleeve, 45# Steel Reducer Adapter (MT1–MT4)

Description

• Morse taper sleeve for direct insertion into a machine spindle, supporting high-torque applications such as large-diameter cutting.
• Type: MT2 to MT3; easy to store and maintain.
• Made of high-quality 45# steel; hardened, tempered, and precision-ground inside and out for high runout accuracy.
• Overall hardening process provides strong impact resistance; finely finished with smooth inner and outer surfaces.
• For use with Morse taper end mills, drills, and reamers to improve work efficiency.

These adapters are made of high-quality 45# steel, hardened and precision-ground inside and out for high runout accuracy. The Morse taper allows the tool to be inserted directly into the machine spindle for high-torque applications such as large-diameter cutting. Features: Made of durable, wear-resistant 45# steel. Uses an overall hardening process for strong impact resistance. High accuracy, fine workmanship, and smooth inner and outer surfaces. Easy to store and maintain. Four types are available. Specifications: Material: 45# steel Types: MT1 to MT2, MT2 to MT3, MT3 to MT4, MT4 to MT5 (optional) Hardness: 50 HRC Dimensions and weight: MT1 to MT2: D 17.78 mm, d 12.065 mm, L 92 mm, outer taper MT2, inner taper MT1, inner hole length 56 mm, weight 89 g MT2 to MT3: D 23.825 mm, d 17.78 mm, L 112 mm, outer taper MT3, inner taper MT2, inner hole length 67 mm, weight 174 g MT3 to MT4: D 31.267 mm, d 23.825 mm, L 140 mm, outer taper MT4, inner taper MT3, inner hole length 84 mm, weight 350 g MT4 to MT5: D 44.399 mm, d 31.267 mm, L 171 mm, outer taper MT5, inner taper MT4, inner hole length 107 mm, weight 1,000 g Package contents: 1 Morse taper drill sleeve Note: Monitors may not be calibrated identically, so the color shown in photos may differ slightly from the actual product. Please use the actual product as the standard.
