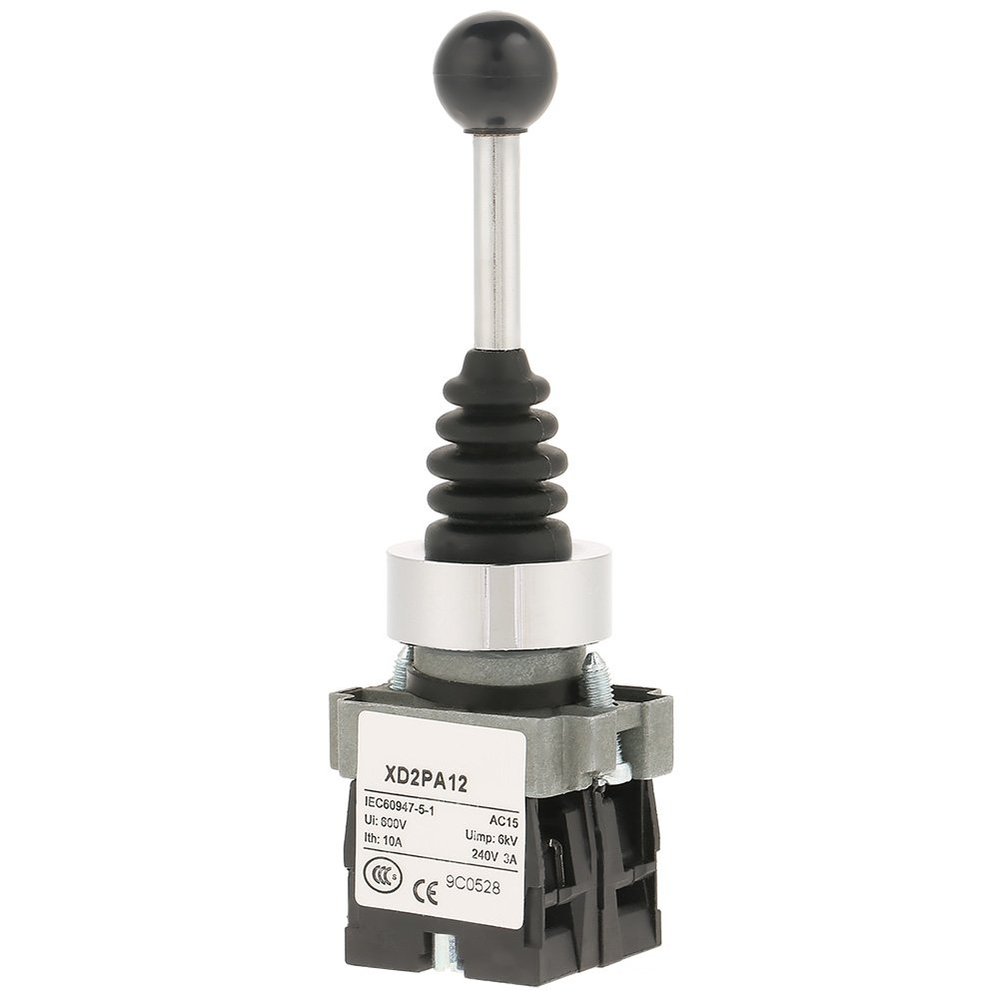

Momentary Joystick Switch, 2NO, 2-Position, for XD2PA12, 22 mm

Description

• For industrial AC and DC control circuits at 50 Hz
• Controls magnetic starters, contactors, relays, and other circuits
• Rubber boot is water-, oil-, and dust-resistant
• 2NO momentary switch with 2 normally open contacts
• Easy to install and operate with a long service life

This momentary joystick switch is commonly used for industrial AC and DC control circuits. It can control magnetic starters, contactors, relays, and other circuits. The rubber boot provides water, oil, and dust resistance. The switch is a 2NO momentary type with two normally open contacts. Specifications: Model: XD2PA12 Contacts: 2NO Rated voltage: 220 V / 380 V Rated current: 5 A / 10 A Mounting hole: 22 mm diameter Electrical life: >500,000 operations Mechanical life: >500,000 operations Operating temperature: -25 to +55C, without icing Operating humidity: 4585% relative humidity, no condensation Contact resistance: 50 m Insulation resistance: 100 Maximum withstand voltage: 3,000 V AC, 50 Hz Vibration: 50 Hz, amplitude approx. 1 mm Shock resistance: >10 m/s, approximately 10 G Protection rating: IP55 Overall size: 12.3 4 cm Weight: 124 g Package includes: 1 joystick switch
