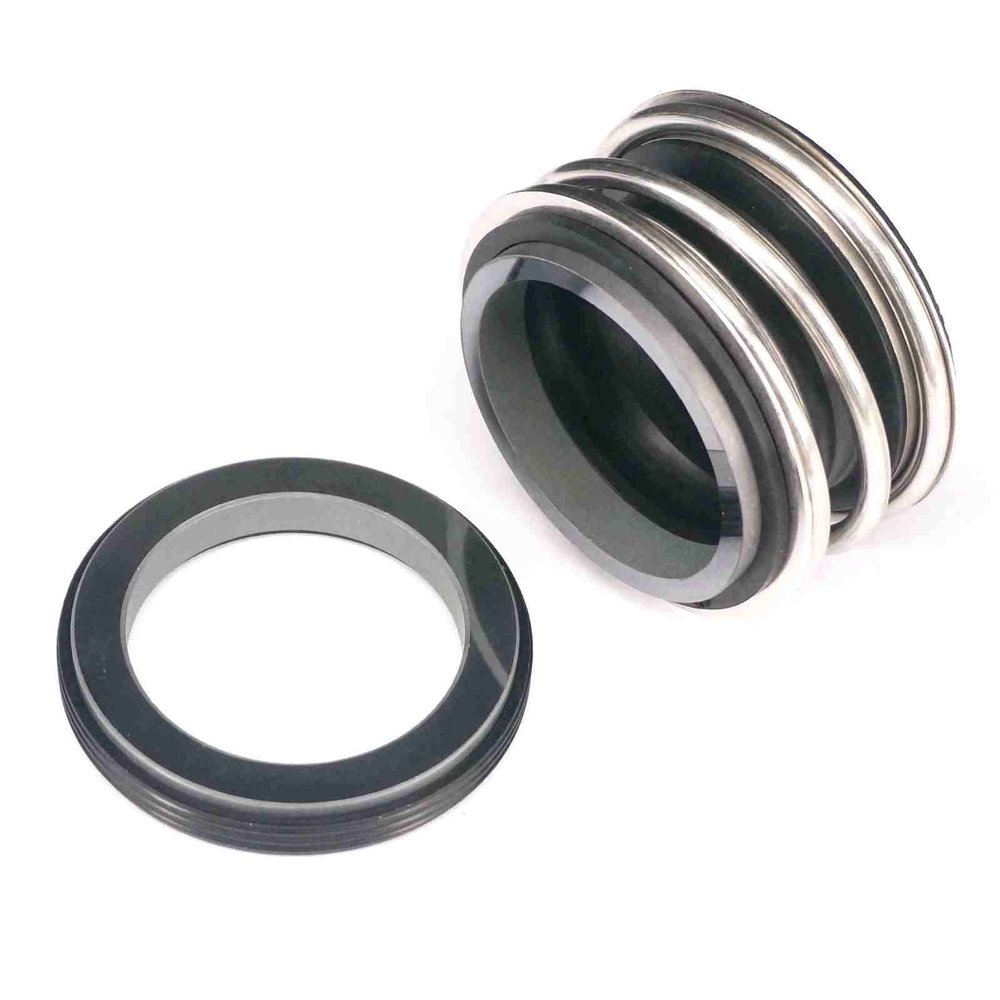

MG1/109 Mechanical Shaft Seal, SiC/SiC, for 50/53/55/60/65/70/75 mm Shafts

Description

• Suitable shaft diameters: 50/53/55/60/65/70/75 mm
• Stationary ring: silicon carbide (SiC)
• Rotating ring: silicon carbide (SiC)
• Secondary seal: nitrile rubber (NBR)
• Spring: steel
• Operating pressure: 1.2 MPa
• Operating temperature: -20C to +120C
• Speed: 10 m/s
• Quantity: 1 piece

MG1/109 mechanical shaft seal for water pumps, with a SiC/SiC ring configuration and suitable for shaft diameters of 50/53/55/60/65/70/75 mm. Materials: stationary ringsilicon carbide (SiC); rotating ringsilicon carbide (SiC); secondary sealnitrile rubber (NBR); springsteel. Operating temperature: -20C to +120C. Operating pressure: 1.2 MPa. Speed: 10 m/s. MG-series mechanical seals are among the most commonly used. The bellows are not subjected to torsional loads, and the design serves multiple functions as a sliding-face carrier, secondary sealing element, and drive ring. The sealing face is driven by the spring and L-rings. There are no bonded connections, and all surface materials can be replaced without requiring dimensional changes. Recommended for applications involving media containing solids, such as wastewater and sewage applications. Each order includes 1 piece.
