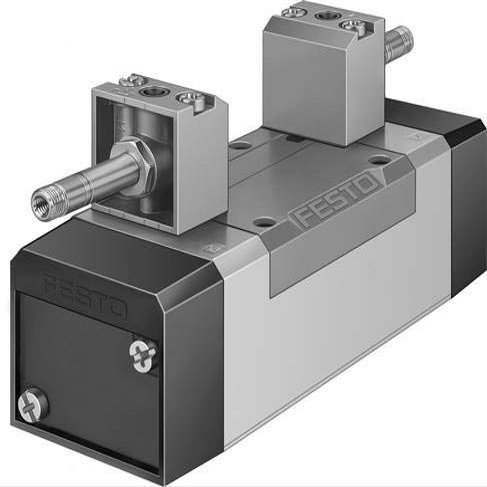

MFH-5/3B-D-2-C-EX (535982) Solenoid Valve, 5/3 Vented

Description

Valve function: 5/3 vented. Actuation: electrical. Width: 54 mm. Normal nominal flow rate: 2,300 l/min. Operating pressure: 3 to 10 bar. Design: spool valve. Reset method: mechanical spring. Protection rating: IP65. Nominal size: 11.5 mm. Pitch: 56 mm. Exhaust function: adjustable by throttling. Sealing principle: soft seal. Installation position: any. Complies with ISO 5599-1. Manual override: with accessory, detented/momentary. ISO code: 258. Control type: pilot-operated. Pilot air supply: internal. Flow direction: non-reversible. Overlap: positive. Switching-off time: 69 ms. Switching-on time: 35 ms. Maximum positive test pulse at signal 0: 2,200 microseconds. Maximum negative test pulse at signal 1: 3,700 microseconds. Operating medium: compressed air according to ISO 8573-1:2010 [7:4:4]. Operating and control medium note: lubricated operation possible; lubrication is required for continued operation. Medium temperature: -10 to 60C. Sound pressure level: 85 dB. Ambient temperature: -5 to 40C. Product weight: 820 g. Electrical connection: via F-coil, ordered separately. Mounting type: on a connection plate with through-hole and screw. Control exhaust connection 84: M5. Pneumatic connections 1, 2, 3, 4, and 5: size 2 connection plate according to ISO 5599-1. Material information: RoHS compliant. Seal material: HNBR/NBR. Housing material: die-cast aluminum.
