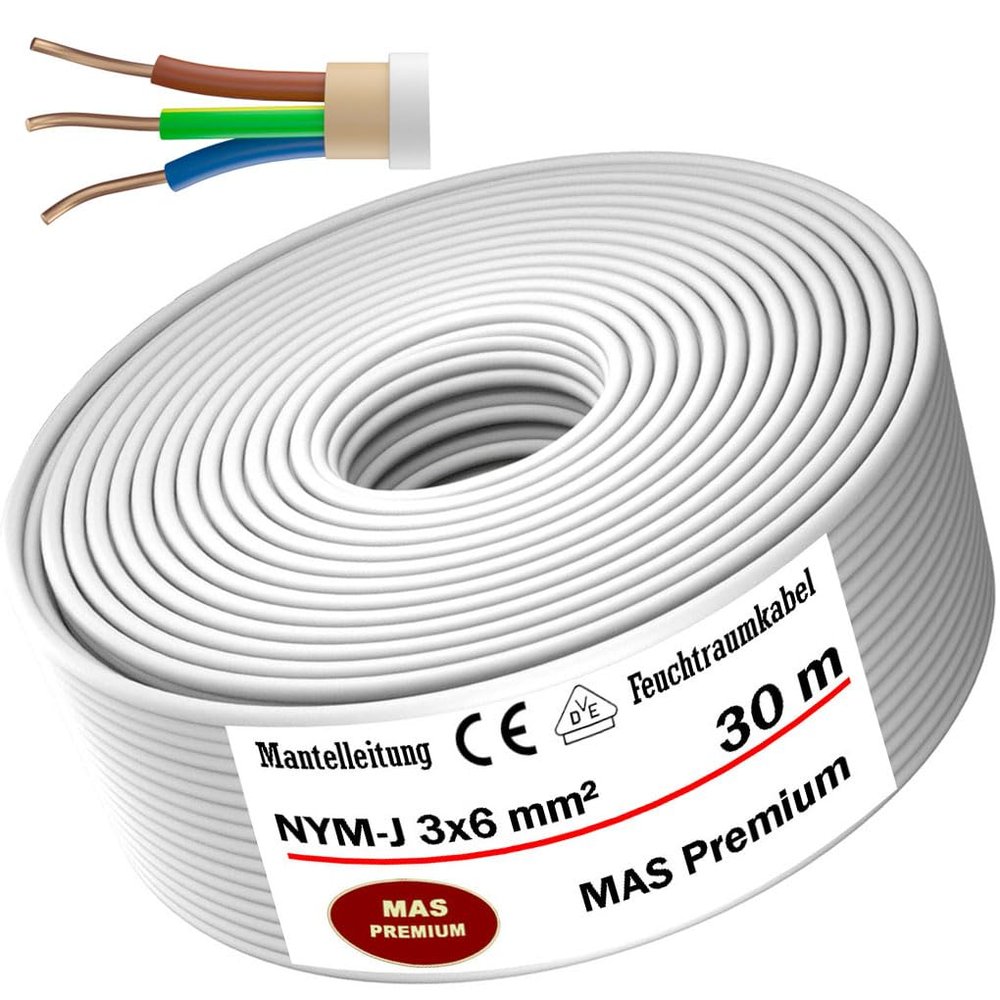

MAS-Premium NYM-J 3 x 6 mm Electrical Cable, 30 m

Description

• FOR FIXED INSTALLATION: Suitable for installation above, on, in and beneath plaster, in dry, damp and wet rooms, in masonry or concrete; not for direct embedding in vibrated or tamped concrete and not for underground installation.
• STANDARD NYM-J CABLE: NYM-J sheathed electrical cable with a rated voltage of 300/500 V and a test voltage of 2,000 V.
• VDE COMPLIANT: Manufactured according to the guidelines of the German Association for Electrical, Electronic & Information Technologies (VDE).
• PRACTICAL COLOR: Gray PVC sheath with clearly recognizable, industry-standard conductor colors.
• MADE IN GERMANY: MAS-Premium products are developed by experts and manufactured in Germany. Manufacturers may vary.
• INNER CONDUCTOR MATERIAL: Solid copper, Class 1 according to VDE 0295.
• AVAILABLE LENGTHS: 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 70, 75, 80, 90 or 100 m.

NYM-J 3 x 6 mm moisture-resistant sheathed electrical cable, available in lengths of 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 70, 75 or 80 m. OFC cable, made in Germany. Suitable as an installation cable for routing on, in and beneath plaster, in dry, damp and wet rooms, as well as in masonry and concrete. Direct embedding in vibrated, shaken or tamped concrete is not permitted. It can also be used outdoors provided it is protected from direct sunlight. The product complies with Directive 2006/95/EC (Low Voltage Directive). Technical data: - Product type: NYM-J 3 x 6 mm electrical cable - Country of origin: Germany; made in Germany - Voltage: Rated voltage 300/500 V; test voltage 2,000 V - Inner conductor: Solid copper, Class 1 according to DIN VDE 0295 - Insulation: YI1 PVC compound according to DIN VDE 0207 Part 4 - Color: Gray - Sheath: YM1 compound according to VDE 0207 Part 5 - Outer diameter: Approx. 13.20 0.5 mm - Outer sheath color: Gray, RAL 7035 - Operating temperature: -40C to 70C; during installation, -5C to 70C - Installation on, in or beneath: Plaster; dry, damp and wet rooms; concrete; masonry - Resistance: Conductor resistance 3.08 ohms/km - Inner conductor cross-section: 3 x 6 mm - Conductor colors: Green/yellow, blue, brown - Available lengths: 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 70, 75 or 80 m - Minimum bending radius: 52.8 mm - Weight: Approx. 360 kg/km Scope of delivery: NYM-J 3 x 6 mm moisture-resistant electrical cable in the selected length of 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 70, 75 or 80 m, with green/yellow, blue and brown conductors.
