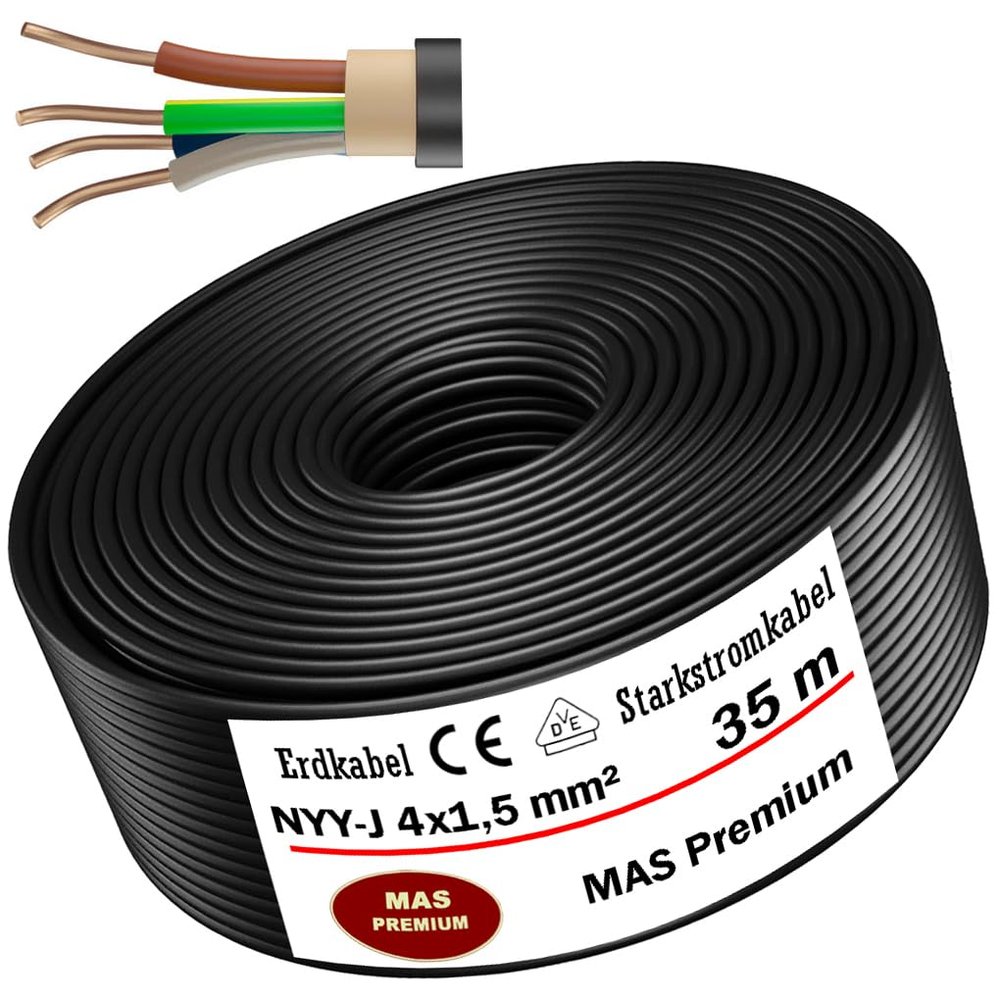

MAS Premium NYY-J 4x1.5 mm² Underground Cable, 35 m

Description

• NYY-J heavy-duty underground power cable
• Rated voltage: 600/1000 V
• For fixed installation indoors, outdoors, in concrete, soil and water
• Not suitable where exposed to solvents, fuels or expected mechanical damage
• Black sheath
• Complies with VDE standards
• Manufacturers may vary

NYY-J 4x1.5 mm underground electrical power cable, available in lengths of 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 70, 75, 80, 90 or 100 m. OFC, made in Germany. Suitable for installation in soil, concrete, water, indoors and outdoors. Sheath compound: YM1. Direct embedding in vibrated, agitated or tamped concrete is not permitted. Suitable for outdoor use provided it is protected from direct sunlight. The product complies with Directive 2006/95/EC (Low Voltage Directive). Technical data: - Description: PVC heavy-duty underground power cable - Type: NYY-J 4 x 1.5 mm - Rated voltage: 600/1000 V (test voltage: 4000 V) - Available lengths: 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 70, 75, 80, 90 or 100 m - Conductor: Solid copper, Class 1 according to VDE 0296 - Construction: 1 x 1.5 mm - Core insulation: PVC compound YI1 according to VDE 0207 Part 4 - Core diameter: Approx. 2.91 mm - Core insulation thickness: Approx. 0.78 mm - Core colors: Green/yellow, brown, black, gray - Sheath compound: PVC compound YM1 according to VDE 0207 Part 5 - Outer diameter: Approx. 11.00 0.5 mm - Sheath thickness: Approx. 2.00 mm; minimum 1.80 mm - Sheath color: Black - Maximum conductor resistance: 12.1 ohms/km - Operating temperature: -40C to 70C; during installation: -5C to 70C - Minimum bending radius: 142 mm - Weight: Approx. 209 kg/km Scope of delivery: Black NYY-J 4 x 1.5 mm underground power cable in the selected length of 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 70, 75, 80, 90 or 100 m, with green/yellow, brown, black and gray cores.
