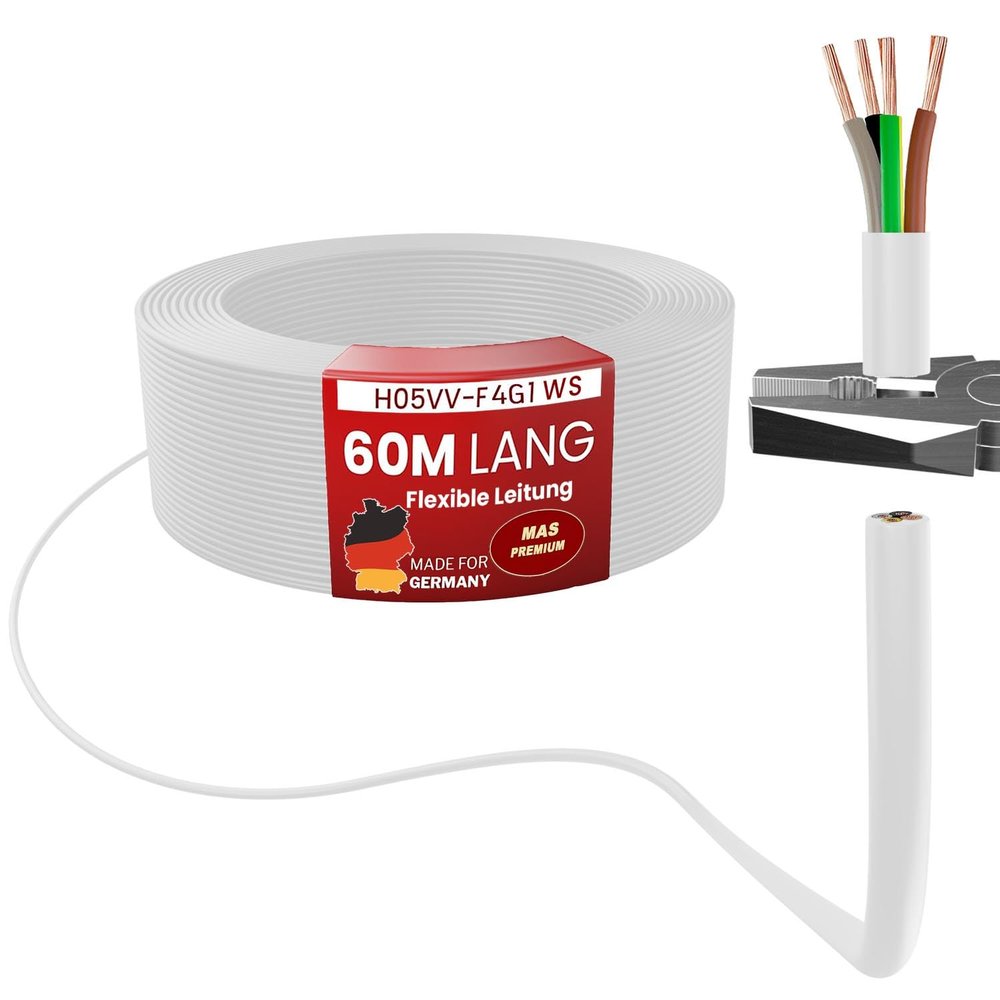

MAS Premium H05VV-F 4G1 PVC Flexible Cable, White, 60 m

Description

• For connection: Suitable for moderate mechanical stress in households, kitchens, offices, and damp rooms.
• Suitable for cooking and heating appliances, provided the cable does not come into contact with hot parts or receive heat radiation.
• Not intended for continuous outdoor use.
• Standard construction: According to VDE 0281-5; rated voltage 300/500 V; test AC voltage 2,000 V.
• PVC cable H05VV-F 4G0.75, 4G1, 4G1.5, or 4G2.5, white.
• Conductor options: 2 conductors (blue and brown).
• Manufactured by MAS Premium to high quality standards; products are developed, selected, and assembled by experts. Manufacturers may vary.
• Available by the meter in lengths of 5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, or 100 m.

H05VV-F 4G1 white PVC flexible cable, available in lengths from 5 to 100 m. Use: For moderate mechanical stress in households, kitchens, and offices; suitable for household appliances, including in damp rooms. Suitable for cooking and heating appliances, provided the cable does not come into contact with hot parts or receive heat radiation. Not intended for continuous outdoor use. Construction: Rated voltage U/U: 300/500 V. Test AC voltage: 2,000 V, according to VDE 0285-525-2-11. Technical data: - Short description: PVC flexible cable - Type: H05VV-F 4G1 according to VDE 0285-525-2-11 - Rated voltage U/U: 300/500 V - Available lengths: 5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, or 100 m - Conductor: Bare copper, class 5, finely stranded - Number of conductors: 4 - Conductor colors: Green/yellow, brown, black, gray - Outer sheath material: Polyvinyl chloride (PVC) YM2 - Conductor insulation material: Polyvinyl chloride (PVC) YI2 - Nominal conductor cross-section: 1 mm - Protective conductor: Yes - Conductor resistance: 19.5 ohms/km - Outer diameter: Approx. 7.8 mm - Flame-retardant according to VDE 0482-332-1-2/IEC 60332-1-2 - Sheath color: White - Operating temperature: -10C to 60C; during installation, -5C to 60C - Current-carrying capacity in air at 30C: 10 A - Minimum bend radius: Approx. 59 mm - Weight: Approx. 95.1 kg/km Scope of delivery: H05VV-F 4G1 PVC flexible cable, 5 to 100 m, white.
