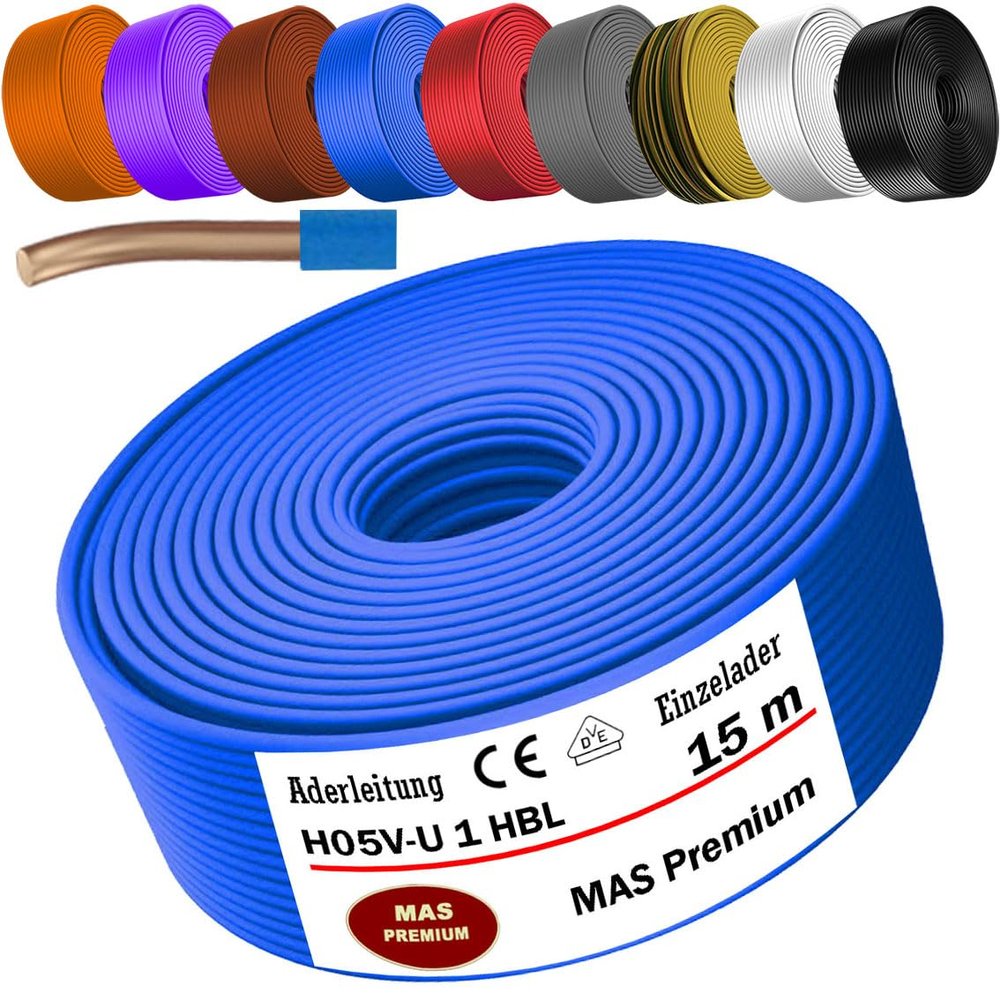

MAS Premium 5–100 m Solid Single-Core Wire H05 V-U 1 (H05 V-U 1 HBL, 15 m)

MAS PREMIUM

MAS Premium 5–100 m Solid Single-Core Wire H05 V-U 1 (H05 V-U 1 HBL, 15 m)

£46.03 £76.72
Free Shipping Sitewide
  • Order within to get between
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support

Description

  • Solid, single-core wire: copper conductors H07 V-U1 combined into one single core.
  • Installation note: In luminaires where the wire connection area is not protected from UV radiation and heat generated by the light sources, a protective sleeve must always be placed over the exposed wires.
  • Otherwise, the insulation may decompose depending on the operating duration.
  • Use according to VDE 0281.
  • For protected installation in devices and in or on luminaires.
  • Approved for installation in pipes on and under plaster, but only for signaling systems.
  • Maximum operating temperature: 70C.
  • Available colors: black, green/yellow, light blue, brown, gray, orange, violet, red, or white.
  • Available lengths: 5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, or 100 m.
  • MAS PREMIUM: MAS-Premium stands for the highest quality standards. Our products are developed by experts. Manufacturers may vary.
  • Technical data: Rated voltage U/U = 300/500 V; test AC voltage = 2,000 V.
  • Insulation wall thickness: approx. 0.6 mm.
  • Conductor: Class 1 copper, single-core.
  • Flame behavior class according to EN 13501-6: Eca.
  • Outer diameter: 2.35 mm.
