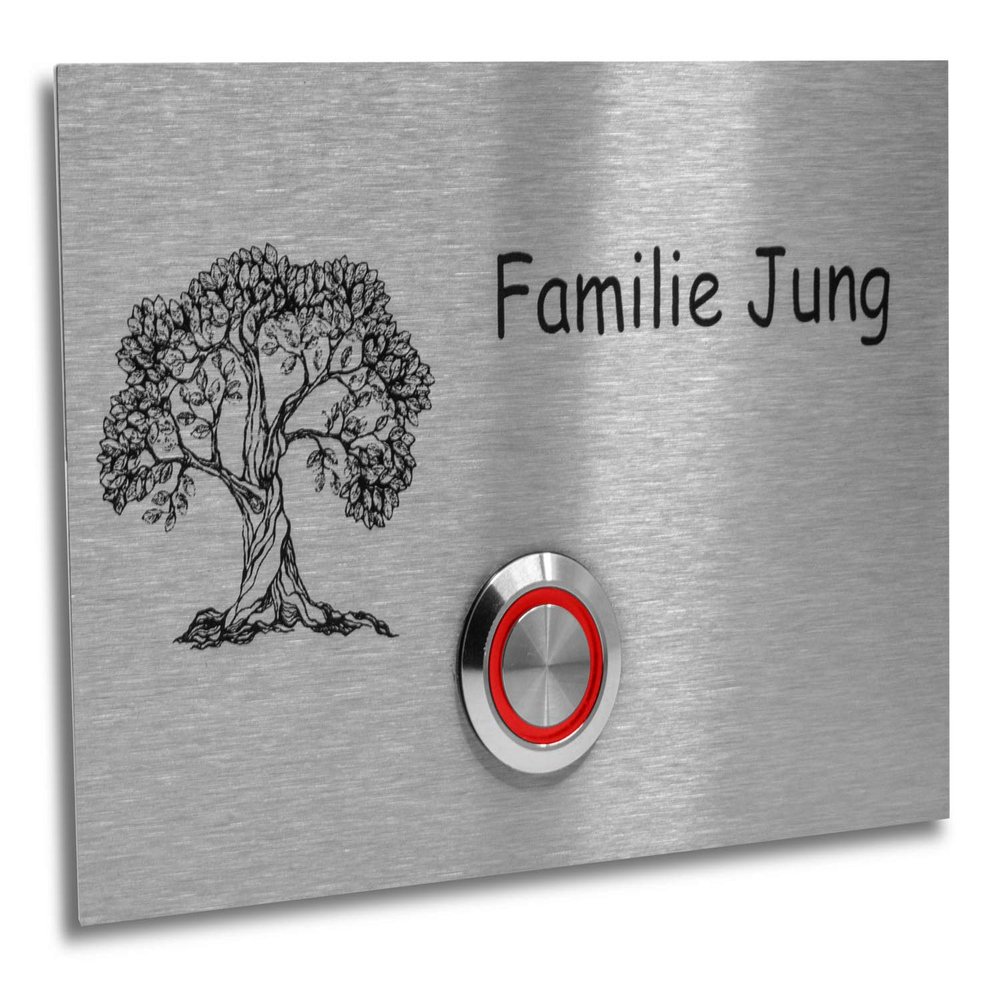

London 002 Doorbell Plate, V2A Stainless Steel, Tree Motif (Red LED)

Description

• Flush-mounted doorbell plate made of 100% rust-free V2A stainless steel
• Laser engraving with tree motif and custom text
• LED button, 812 V AC/DC
• Includes mounting hardware, threaded pins, wall plugs, and installation instructions
• After ordering: Choose a font and send your desired text and font by email to gravurtext@jung-edelstahl-design.de or via Amazon's contact form

You will receive a doorbell plate made of brushed V2A stainless steel. The plate measures 120 80 3 mm. The button is vandalism-resistant and dust- and water-tight to IP67 (protection against powerful water jets). The button complies with the CE standard. The button's installation diameter is 19 mm, its outer diameter is 22 mm, and the minimum installation depth, including the outer sealing ring, is 40 mm. LED illumination: 12 V AC/DC. The LED color can be selected as white, blue, green, orange, or red. The electrical connection is made via screw terminals. A 2- or 3-wire connection is possible. A separate power supply for the LED is not required. The doorbell plate is mounted using stainless steel sleeves welded to the back, with 5 mm stainless steel bolts screwed into them; these are not visible from the front. The sleeves are secured in the wall with wall plugs, with the bolts pressed into the plugs. All components described as necessary for installation are included in the delivery (see photo). LED button: Installation diameter: 19 mm Protection rating: IP67 CE-compliant 4 screw contacts Maximum switching capacity: 5 A / 250 V Switching contacts: 1 normally open contact LED contacts: 2 LED voltage: 12 V AC/DC LED illumination: white, blue, green, orange, or red Material: stainless steel The button is non-latching. After ordering: Please choose a font and send your desired text and font by email to gravurtext@jung-edelstahl-design.de or via Amazon's contact form.
