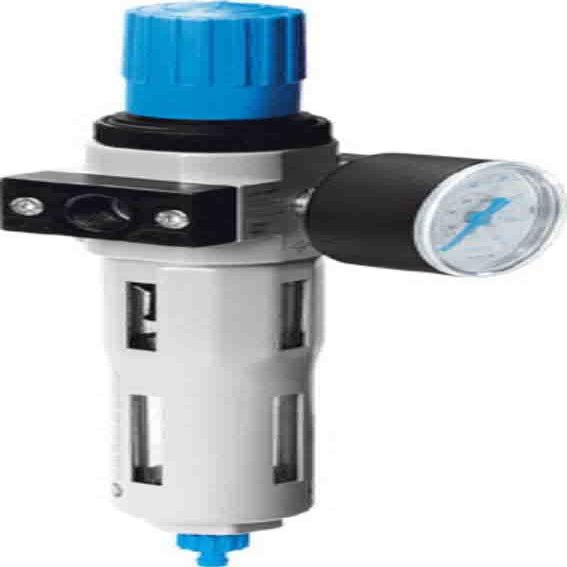

LFR-3/4-D-5M-MAXI (162724) Filter Regulator, Maxi, Series D, Vertical, 5 µm

Description

• Size: Maxi
• Series: D
• Actuation protection: Locking control knob
• Installation position: Vertical
• Filter grade: 5 micrometers
• Condensate drain: Manual, rotary
• Design: Filter regulator with pressure gauge
• Maximum condensate volume: 80 ml
• Bowl protection: Metal guard
• Pressure indication: Pressure gauge
• Operating pressure: 1 to 16 bar
• Pressure regulation range: 0.5 to 12 bar
• Maximum pressure hysteresis: 0.4 bar
• Standard rated flow: 7,600 L/min
• Operating medium: Inert gases; compressed air according to ISO 8573-1:2010 [-:9:-]
• Operating and pilot medium note: Oiled operation possible; required for continued operation
• Corrosion resistance class KBK: 2, moderate corrosion exposure
• Storage temperature: -10 to 60 C
• Outlet air purity class: Compressed air according to ISO 8573-1:2010 [6:8:4]; inert gases
• Medium temperature: -10 to 60 C
• Ambient temperature: -10 to 60 C
• Maritime classification: See certificate
• Product weight: 1,370 g
• Mounting type: In-line installation, with accessories optionally available
• Pneumatic connection 1: G3/4
• Pneumatic connection 2: G3/4
• Material compliance: RoHS compliant
• Housing material: Die-cast zinc
• Bowl material: PC

Maxi-size filter regulator from Series D with a 5-micrometer filter, pressure gauge, manually rotatable condensate drain, locking control knob, and metal bowl guard. It is designed for vertical installation and supports operating pressures from 1 to 16 bar, with a pressure regulation range of 0.5 to 12 bar. Suitable for inert gases and compressed air according to the stated ISO 8573-1:2010 specifications.
