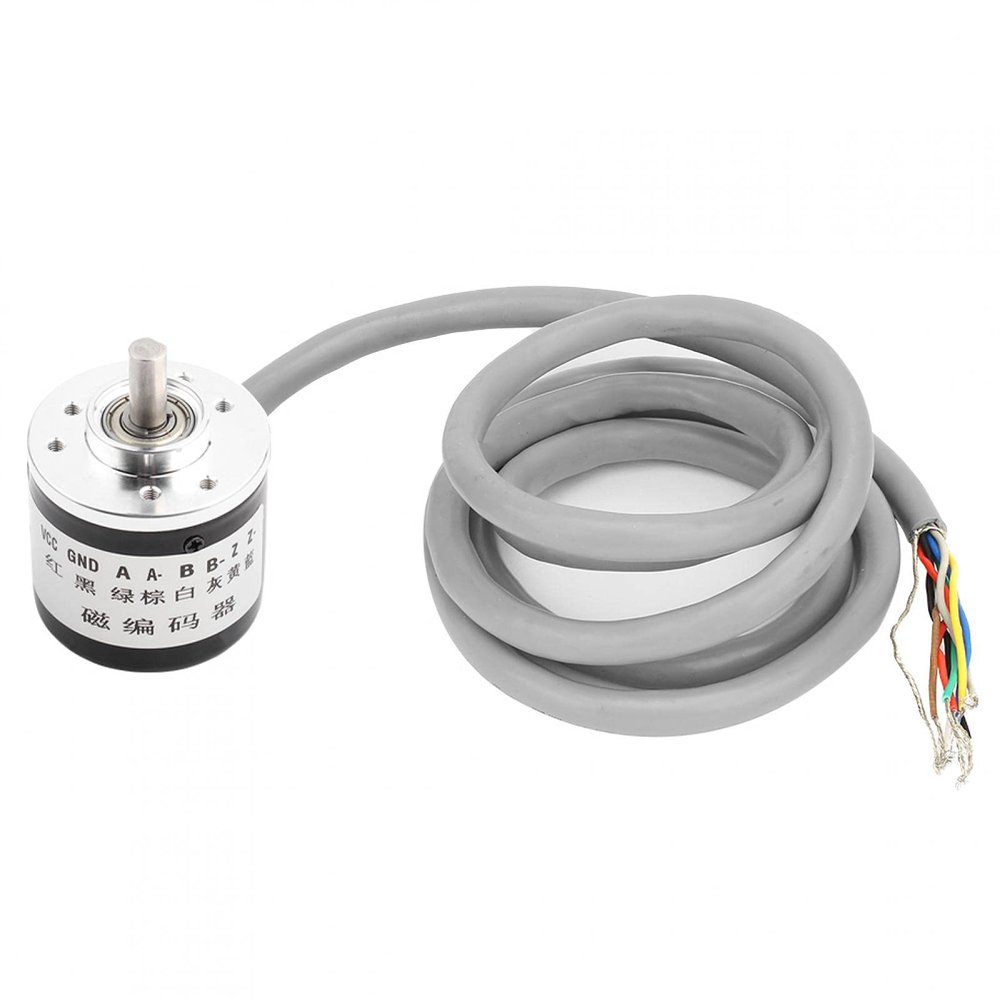

Kuuleyn HAJ1024 Incremental Encoder, 38 mm Magnetic Encoder, 1024 PPR, DC 5V

Description

• Brand-new 1024-pulse magnetic encoder, tested before shipment
• High-quality stainless steel housing with stability and impact resistance
• For displacement measurement, fixed-length automation and cutting control, height measurement, student competition robots, and more
• Output modes: voltage, open collector, complementary, push-pull, line-driver, differential, and fork output
• Internal ASIC devices, high reliability, long service life, and strong interference resistance

Specifications: Model: HAJ1024 Reading mode: Non-contact Output modes: Voltage output, open collector output, complementary output, push-pull output, line-driver output, differential output, fork output Output phases: A, B Outer diameter: 38 mm Shaft diameter: 6 mm Standard cable length: 1.2 m Resolution: 1024 PPR Wiring method (8 wires): Brown wire: DC 5V (positive pole) Blue wire: 0V (negative pole) Black wire: A phase White wire: B phase Shielded network cable: N.C. (ground) Output A differential: A/B phase difference of 90 45 (1/41/8T) Output mode: NPN open-collector output Output capacity: External voltage under DC 30V; sink current under 35 mA; residual voltage under 0.4V (sink current under 35 mA) Output rise and fall time: 1 s or less Output voltage control: 5V, 1 k load resistance Starting torque: Under 0.9 mNm Moment of inertia: 1 10^-6 kgm (under 600 pulses/revolution: 3 10^-7 kgm) Permissible load: Radial: 30 N Axial: 20 N Package contents: 1 encoder
