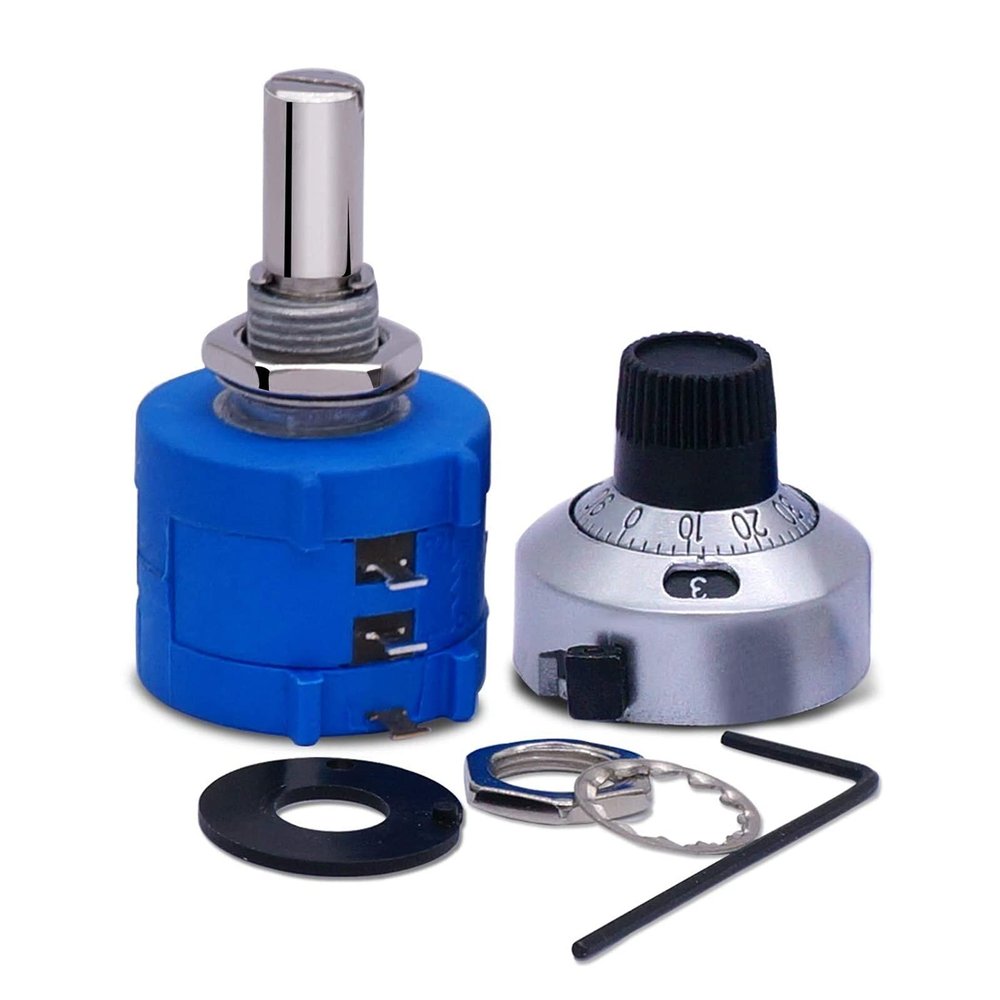

KLVN 100kΩ 10-Turn Wirewound Precision Potentiometer with Counting Dial

Description

• Product: Potentiometer; model: 3590S-2-104L, 100k
• Type: Rotary potentiometer
• Resistance tolerance: 5%; linearity: 0.25%
• Shaft diameter length: 6.35 10 mm (0.25 0.4 in)
• Threaded bushing diameter: 9 mm (0.35 in)
• Body size, excluding shaft: 22 19 mm (0.9 0.7 in)
• Overall length: 48 mm (1.9 in)
• Shaft type: Rotary; technology: wirewound
• Turns: 10; power rating: 2 W
• Rotational life: 1,000,000 cycles
• Weight: 50 g
• Package includes: 1 potentiometer and 1 counting dial knob

The KLVN 3590S-2-104L is a 100k, 10-turn wirewound rotary precision potentiometer with a counting dial knob. It has a 5% resistance tolerance, 0.25% linearity, and a 2 W power rating.
