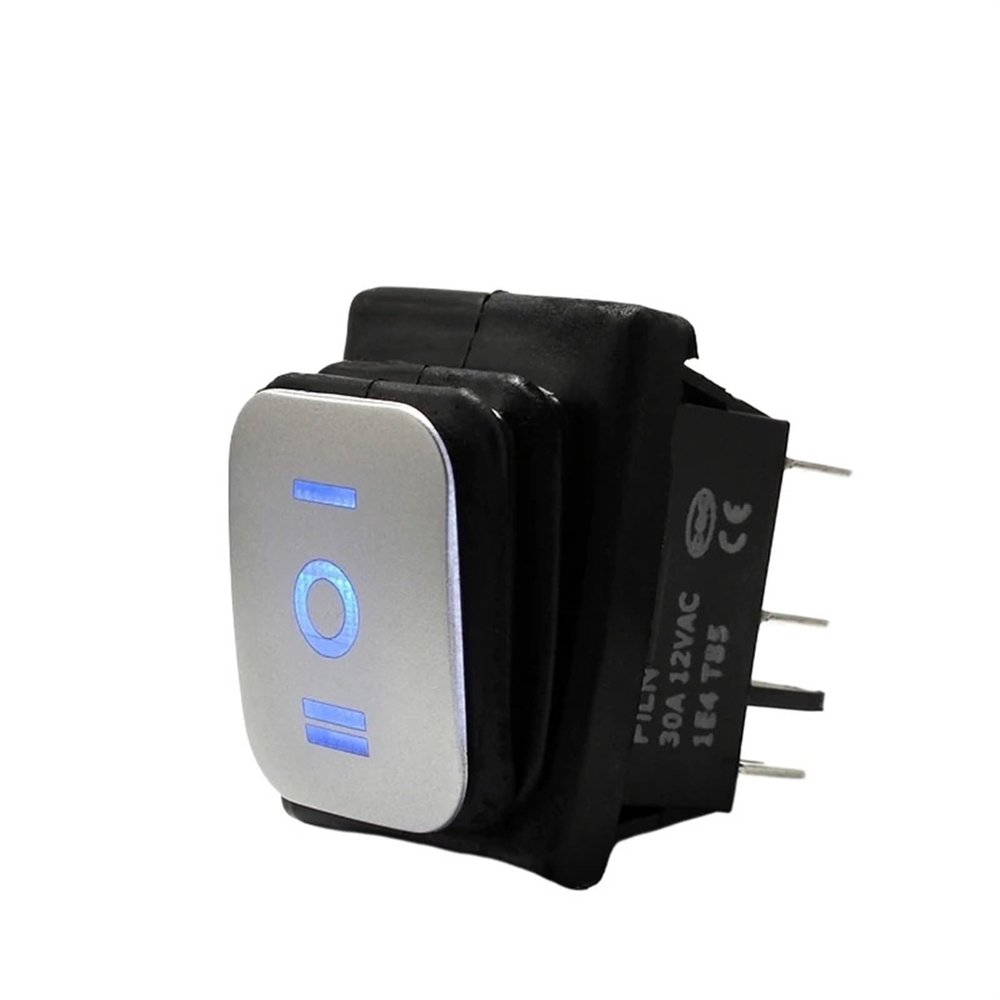

KCD4 IP67 Waterproof DPDT Rocker Switch, ON-OFF-ON, 6-Pin, LED

Description

• DPDT, ON-OFF-ON, 6-pin rocker switch
• IP67 waterproof sealed design
• Heavy-duty construction
• Rated 16 A/250 VAC; versions up to 30 A/250 VAC available
• LED colors: red, green, blue, yellow, white, or no LED
• LED voltage options: 3 V, 6 V, 12 V, 24 V, 36 V, 48 V, 110 V, 120 V, 220 V, or 380 V
• Operating temperature: -25C to +85C
• Contact resistance: 50 m
• Insulation resistance: 100 M
• Dielectric strength: over 1,500 VAC for 1 minute
• Mounting hole size: 28 22 mm or 30 22 mm
• Waterproof cover and cable with terminal are available

KCD4 heavy-duty waterproof sealed rocker switch with six pins and DPDT ON-OFF-ON switching. Other configurations are available, including (ON)-OFF-ON, (ON)-OFF-(ON), ON-OFF, (ON)-OFF, ON-ON, and (ON)-ON. Parentheses indicate momentary reset operation. LED colors include red, green, blue, yellow, and white, or no LED. LED voltage options range from 3 V to 380 V. The switch is made of plastic and is available with CE, CQC, and CCC certifications. Model: KCD4-203. Current rating: 16 A. A 12 V, 24 V, 110 V, or 220 V LED version is also listed. A waterproof cover for the KCD4 rocker switch and a 0.3 mm PVC cable measuring 20 cm with terminal are available.
