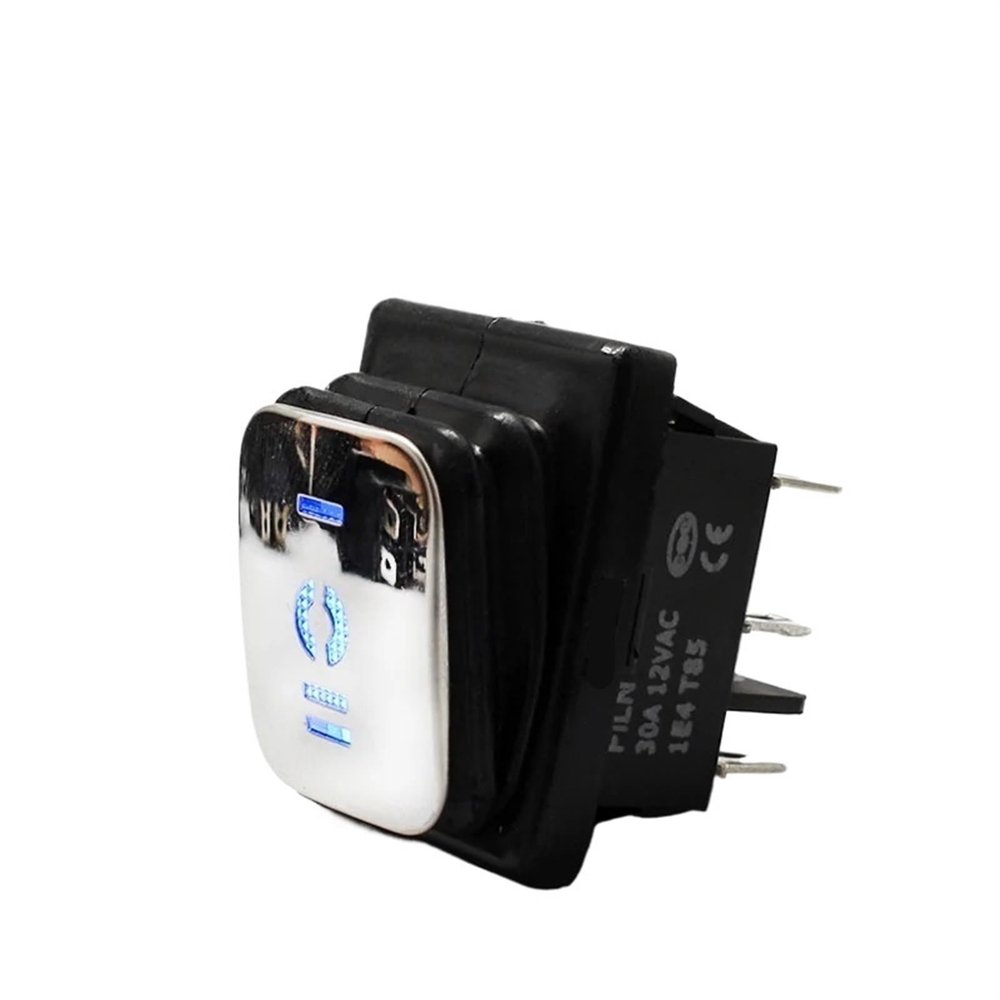

KCD4 DPDT Rocker Switch, ON-OFF-ON, IP67, 6-Pin, Stainless Steel, Blue Without LED

Description

• IP67 waterproof sealed rocker switch
• DPDT, 6-pin, ON-OFF-ON configuration
• 16A/250VAC; available in 30A/250VAC
• Momentary configurations available
• Operating temperature: -25 to +85C
• Contact resistance: 50 m
• Insulation resistance: 100 M
• Dielectric strength: >1,500 VAC for 1 minute
• LED colors: red, green, blue, yellow, white, or no LED
• LED voltages: 3V, 6V, 12V, 24V, 36V, 48V, 110V, 120V, 220V, or 380V
• Mounting hole size: 28 22 mm or 30 22 mm
• Plastic construction with stainless-steel finish
• CE, CQC, and CCC certified
• Optional waterproof cover available
• Optional 0.3 mm PVC cable with terminal, 20 cm long

KCD4 heavy-duty DPDT rocker switch with an ON-OFF-ON configuration, six pins, IP67 waterproof sealing, and an illuminated option. The standard rating is 16A/250VAC, with a 30A/250VAC version available. Other switch functions include (ON)-OFF-ON, (ON)-OFF-(ON), ON-OFF, (ON)-OFF, ON-ON, and (ON)-ON; parentheses indicate momentary resettable operation. LED options include red, green, blue, yellow, white, or no LED, with available LED voltages from 3V to 380V. A waterproof cover and a 20 cm PVC cable with terminal are also available. Model: KCD4-203. Current: 16A. Switch type: rocker switch.
