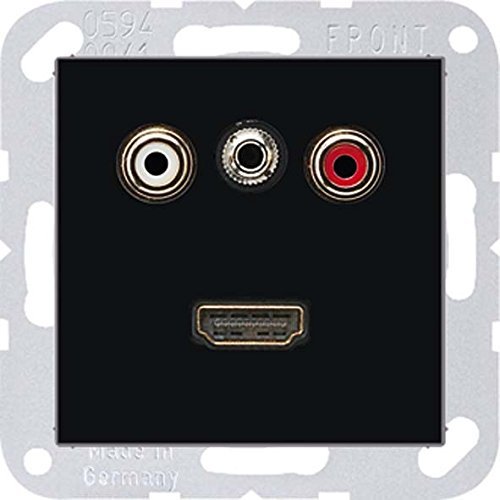

Jung MAA1082SW Multimedia Connection System

Description

• Jungthe perfect solution for your installation
• Switch range
• RCA audio, 3.5 mm mini jack, and HDMI connections
• Break-resistant design
• Complete with support ring and screw mounting

Jung MAA1082SW multimedia connection system with RCA audio, 3.5 mm mini jack, and HDMI connections. Complete with support ring and screw mounting. Replacement part: Adapter 2, item no. MA 1000 AD 2. Available for the CD series on request. Material: thermoplastic. Color: black. Technical dataRCA audio: Rated voltage: DC 50 V. Frequency range: 20 Hz20 kHz. Contact resistance: 20 m. Insulation resistance: 100 M. Dielectric strength: AC 500 V~ (50/60 Hz) for 1 minute at 2 mA. Plugging and unplugging forces: 325 N. Plugging cycles: 1,000. Feed-through jacks: white, left, 180; red, right, 180. Contact material: gold-plated. Installation depth: 14 mm. Ambient temperature: 545 C. Installation note: Install in an equipment connection box, deep box. Technical data3.5 mm mini jack: Rated voltage: DC 50 V. Frequency range: 20 Hz20 kHz. Contact resistance: 20 m. Insulation resistance: 100 M. Dielectric strength: AC 5002,000 V~ / DC 800 V. Plugging and unplugging forces: 4.914.7 N. Plugging cycles: 2,000. Feed-through jack: 3.5 mm stereo audio; rear: 2 RCA jacks, white and red. Contact material: gold-plated. Ambient temperature: 545 C. Installation note: Install in an equipment connection box, deep box. Technical dataHDMI: Standard: 1.3/Category 2. Supports HDMI technology, version 1.3 with Deep Color. Video bandwidth: 1.65 GHz. Resolution: 1080p (1,920 1,080 pixels). Vertical frequency range: 5085 Hz. Transfer rate: 10.2 Gbit/s. Feed-through jack: HDMI Type A, 180. Contact material: gold-plated. Installation depth: 25 mm. Ambient temperature: 545 C. Installation note: Due to the different plug designs of preassembled cables, installation in equipment connection boxes cannot be guaranteed. Provide sufficient installation space and observe bending radii.
