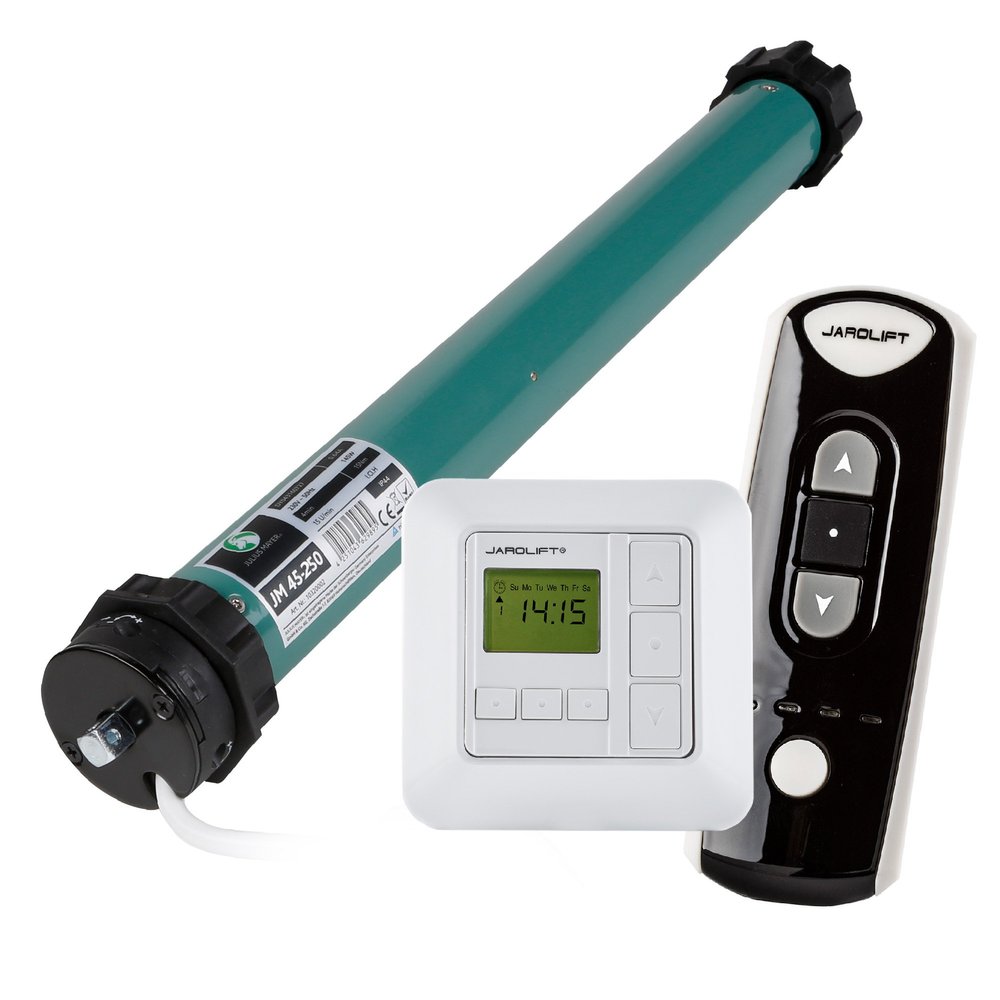

JULIUS MAYER JM45-250 Roller Shutter Motor, 25 Nm, SW60, with jarolift Sevenlogic Comfort Timer and TDRC 04 Remote

Description

• High-quality roller shutter motor: 25 Nm torque and 50 kg lifting force, suitable for SW60 shafts.
• Smart home compatible: With a gateway, bridge, or hub, the motor can be controlled via a mobile app or voice control.
• Quiet and low-wear: The motor operates quietly and has low wear for enhanced comfort at home.
• Convenient operation: Open or close the roller shutter at the touch of a button. Radio control can be retrofitted.
• Comprehensive protection: The motor features overload and overheating protection.

The high-quality JULIUS MAYER roller shutter motor sets new quality standards with its sophisticated technology. The electric drive features an extremely quiet planetary gearbox and precise limit switching. Motor technical data: lifting force, depending on model: 10 Nm / 25 kg, 15 Nm / 38 kg, 25 Nm / 50 kg, or 35 Nm / 65 kg; speed, depending on model: 17 rpm or 15 rpm; tube diameter, depending on model: 35 mm or 45 mm; voltage: 230 V; frequency: 50 Hz; current consumption, depending on model: 0.53 A, 0.64 A, 0.83 A, or 0.86 A; motor power, depending on model: 121 W, 145 W, 191 W, or 198 W; protection rating: IP44; operating time: max. 4 minutes; octagonal shaft, depending on model: SW40 or SW60; weight, depending on model: 2.5 kg, 3.12 kg, 5.78 kg, or 5.78 kg; motor length, depending on model: 473 mm, 473 mm, 535 mm, or 535 mm; tube color: patina green, RAL 6000; connection cable: 4 x 0.75 mm, white, 3 m long. Timer technical data: power supply: AC 185240 V, 50/60 Hz; mains load: 400 W; standby consumption: 0.6 W; protection rating: IP30; permitted ambient temperature: 0C to +60C; radio coding: rolling code; radio frequency: 433.92 MHz; operating time: 4 minutes; compatibility: compatible with all TDR radio transmitters manufactured from 03/2010 onward. Remote control technical data: power supply: 3 V battery, model CR2430; operating current: 12 mA; protection rating: IP30; permitted ambient temperature: -20C to +60C; radio coding: rolling code; radio frequency: 433.92 MHz; channels: 4-channel; compatibility: compatible with all TDR radio receivers manufactured from 03/2010 onward. Included: 1 set as selected.
