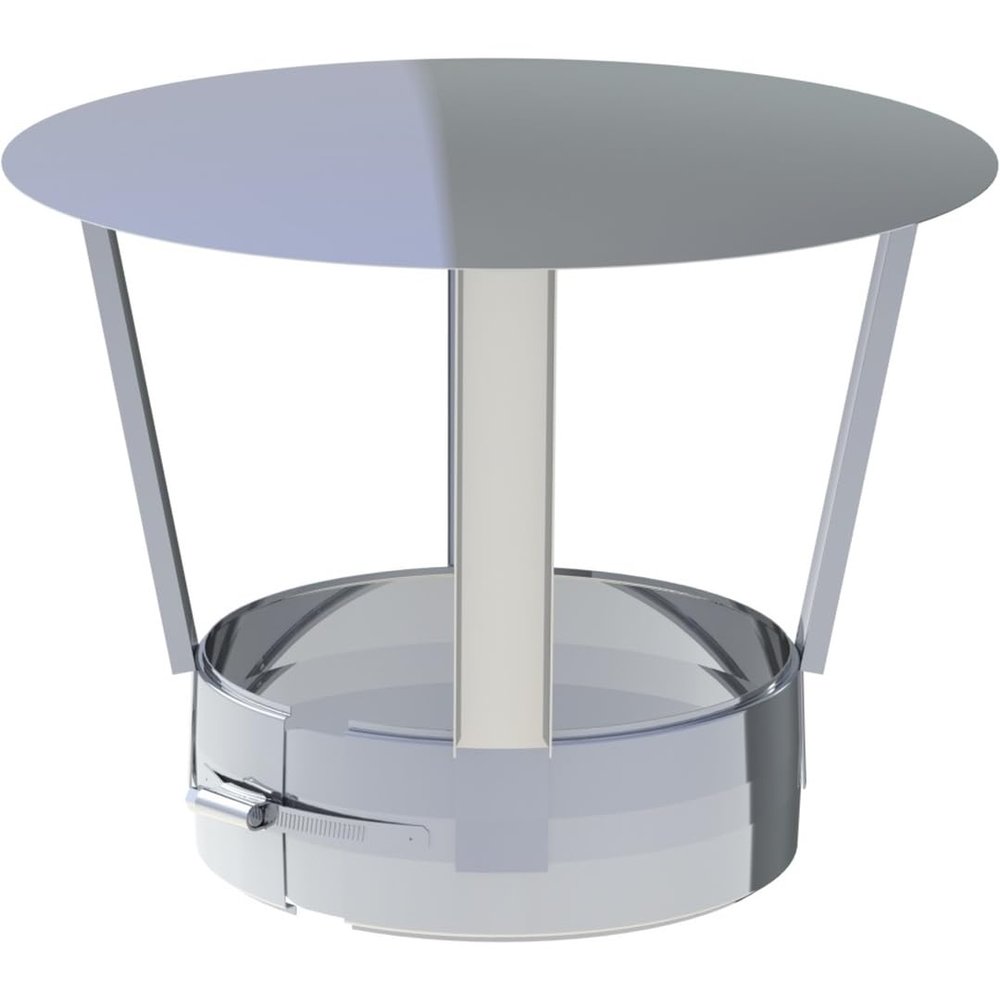

Jeremias DW-ECO 2.0 Stainless Steel Rain Cap, 600 mm

Description

• High-quality, double-wall stainless steel flue system with 25 mm mineral insulation.
• Suitable for standard oil, gas, and solid-fuel appliances, except anthracite coal.
• Inner diameters from 130 mm to 600 mm; larger diameters available on request.
• Maximum operating temperature of 600 C; tested for burnout temperatures up to 1,000 C.
• Installation by qualified personnel required; prior coordination with the district chimney sweep is necessary.
• Rain cap protects the chimney from penetrating rain.
• CE-certified according to EN 1856-1 and EN 1856-2 with specified classifications.

The CE-certified Jeremias DW-ECO 2.0 is a high-quality, double-wall stainless steel chimney and flue system with 25 mm mineral insulation. It is suitable for use as an exterior-wall chimney or for connecting flue pipes, and is designed for both dry and wet operation under negative pressure. Applications: Suitable for standard oil, gas, and solid-fuel appliances, such as wood, coke, peat, and coal, except anthracite coal. Suitable for exterior-wall installation, floor-to-floor installation in buildings with fire-protection-compliant encasement, connecting flue pipes, and rooftop heating centers. Technical details: Inner material: L99 stainless steel, 0.5 mm. Outer material: 1.4301 stainless steel, 0.5 mm, high-gloss finish as standard; matte or painted finishes are optionally available at an additional 15%. Insulation: 25 mm non-combustible special mineral insulation, building material class A1 according to DIN 4102. Inner diameter: 130 mm to 600 mm; larger diameters available on request. Connection: socket joint with an external clamping band, 70 mm wide and recessed. Thermal resistance: > 0.26 mK/W. Maximum operating temperature: 600 C, tested for burnout temperatures up to 1,000 C. Certifications: CE certificate number 0036 CPR 9174 015. CE classifications according to EN 1856-1: T400-N1-W-V2-L99050-Oxx, T600-N1-W-V2-L99050-Oxx, and T600-N1-D-V2-L99050-Gxx. Connecting flue pipe: CE certificate number 0036 CPR 9174 054. CE classifications according to EN 1856-2: T450-N1-W-V2-L99050-O50M, T600-N1-D-V2-L99050-G100M, and T600-N1-W-V2-L99050-O100M. Notes: Installation by qualified personnel is required in accordance with DIN V 18160 and other applicable building and safety regulations. Prior coordination with the responsible district chimney sweep is required. The stated diameters refer to the inner diameter; the outer diameter is larger due to the insulation. Product description: This item is for the DW-ECO 2.0 system with a 600 mm inner diameter. The rain cap forms the cover at the upper end of the chimney and prevents rain from entering.
