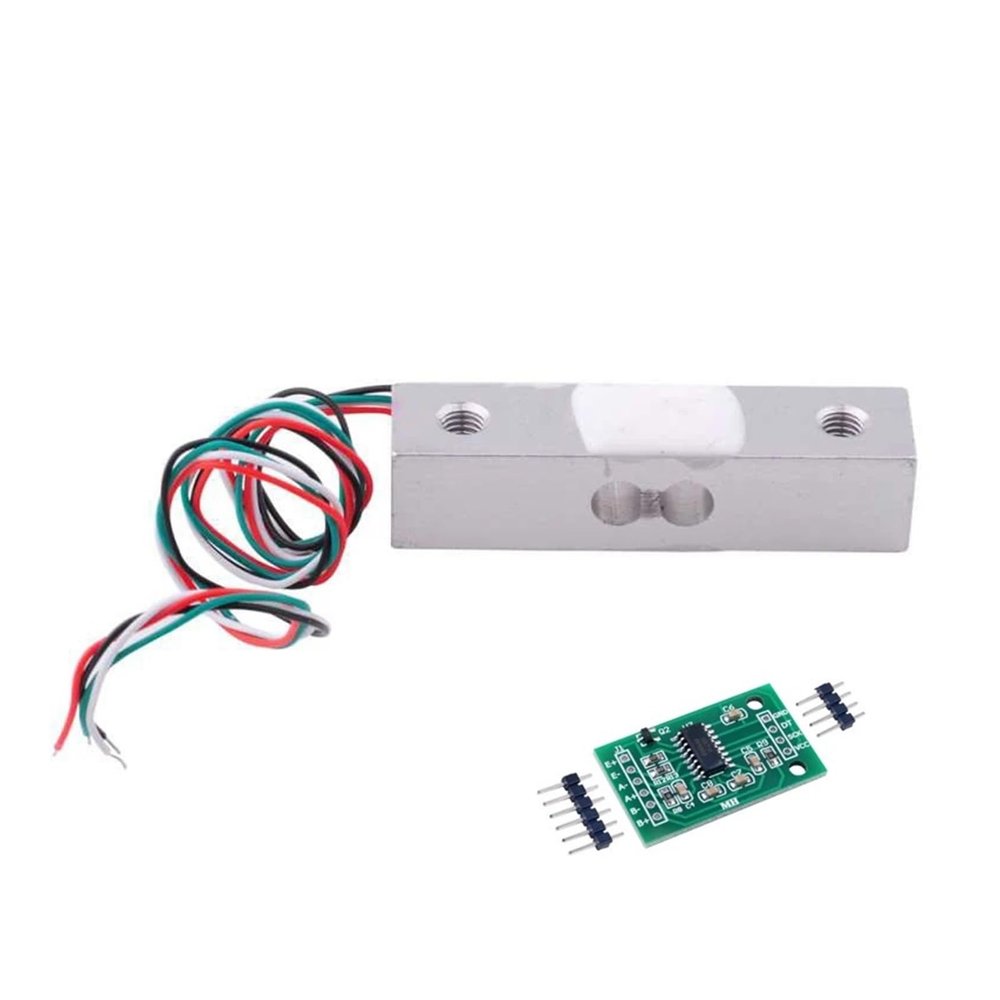

JCKJWL NJ6 Micro Load Cell Sensor, 1–50 kg, with HX711 AD Module

Description

• High precision for reliable electronic scale measurements
• Available capacities: 1 kg, 3 kg, 5 kg, 10 kg, 20 kg, or 50 kg
• HX711 AD module for stable signal output and easy integration
• Compact 55 12.7 12.7 mm design
• Simple wiring: red positive power, black negative power, green positive signal, white negative signal

NJ6 micro load cell sensor for electronic scales. Size: 55 12.7 12.7 mm. Capacity options: 1 kg, 3 kg, 5 kg, 10 kg, 20 kg, or 50 kg. Output sensitivity: 1.0 0.2 mV/V. Nonlinearity: 0.05% RS. Hysteresis: 0.05% FS. Repeatability: 0.05% RS. Creep: 0.1% FS/3 min. Zero output: 0.3 mV/V. Output impedance: 1000 10 ohms. Input impedance: 1050 100 ohms. Operating temperature: -10 to +120C. Zero-temperature drift: 0.2% FS/10C. Temperature-sensitivity drift: 0.1% FS/10C. Insulation resistance: 1000 M. Excitation voltage: 310 VDC. Overload limit: 150% FS. Angular error: 0.1% FS. Overall accuracy: 0.05% FS. Package includes one selected 1 kg, 3 kg, 5 kg, 10 kg, 20 kg, or 50 kg micro load cell, or one HX711 AD module.
