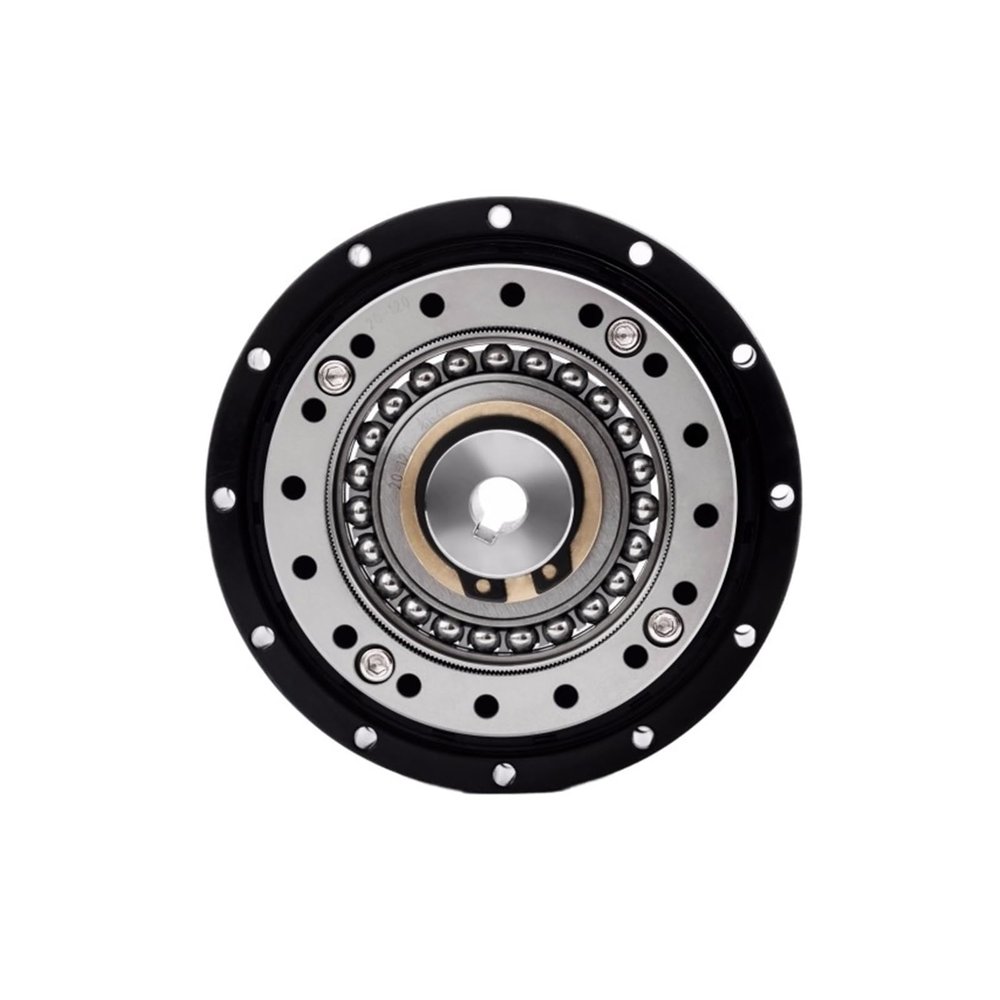

ISIRYK SHF-25 Harmonic Reducer, Self-Aligning, Horizontal, Ratio 120

Description

• Easy to install and use in your application.
• Uses a unique operating principle based on the elastic mechanics of metals.
• Offers zero backlash, reduced weight, and space savings compared with other gearboxes.
• Commonly used in industrial robots and automation applications.
• Provides low backlash, high torque, a high reduction ratio, compact size, and excellent positioning and repeatability.
• Small size and low weight support flexible design and application where space is limited.

SHF-25-I harmonic reducer, self-aligning type. Diameter: 110 mm. Thickness: 37.3 mm. Weight: 1.2461.24 kg. Reduction ratios: 30, 50, 80, 100, 120. Rated torque at an input speed of 2,000 rpm: 26 Nm, 37 Nm, 60 Nm, 64 Nm, 64 Nm. Permissible peak torque during starting and stopping: 48 Nm, 93 Nm, 130 Nm, 149 Nm, 159 Nm. Permissible maximum average load torque: 36 Nm, 52 Nm, 83 Nm, 103 Nm, 103 Nm. Instantaneously permissible maximum torque: 90 Nm, 177 Nm, 242 Nm, 270 Nm, 289 Nm. Permissible maximum input speed: 5,500 rpm. Permissible average input speed: 3,500 rpm. Backlash: 20, 20, 10, 10, 10 arcsec.
