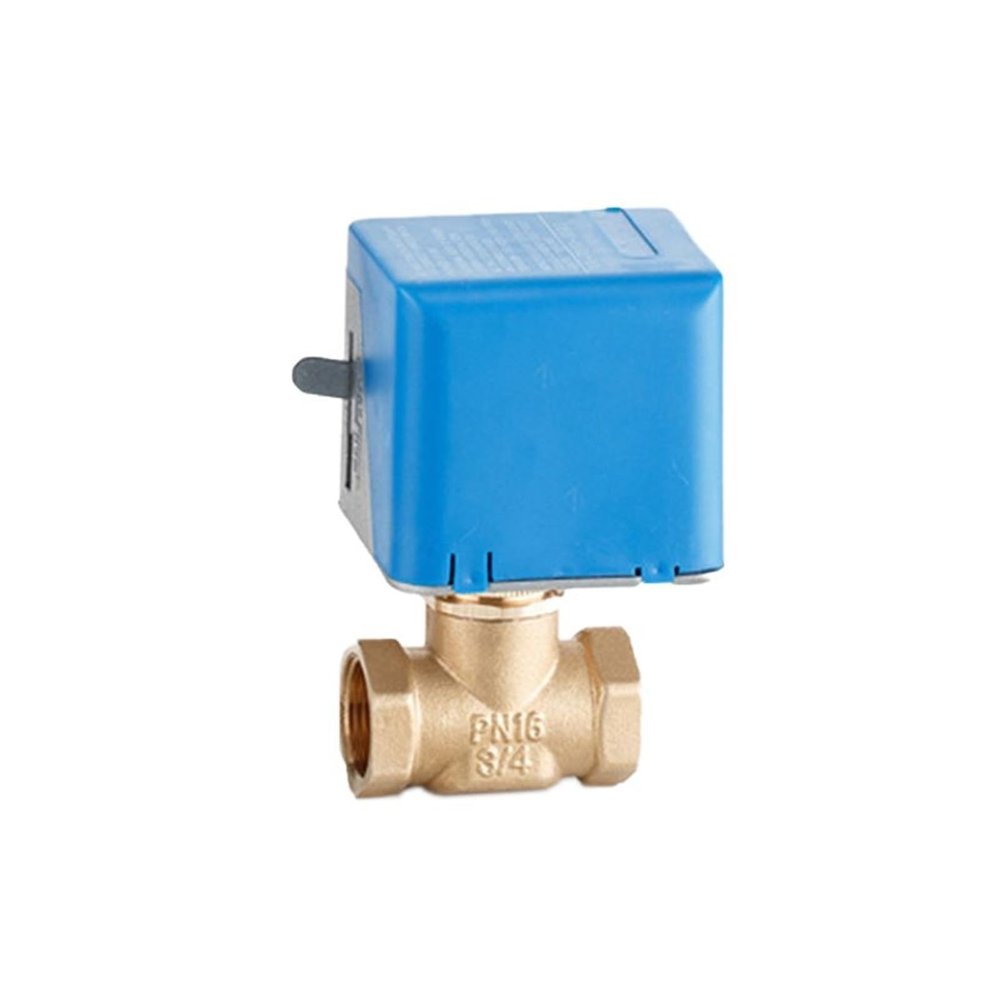

IPNDKBFL 3/4" Motorized Electric Brass Ball Valve, 2-Wire AC220V Two-Way Shutoff Valve (24VAC)

Description

• Valves
• Faucet valves

For VA-7010 series fan-coil electric valves, suitable for on/off control of pipeline flow in fan units. The valve body is made of forged brass and is driven by a hysteresis stepper motor. The valve opens when energized and resets by spring action when switched off. The manual valve actuation mechanism is one of the most commonly used electric valve mechanisms for central air-conditioning systems. Valve body: Brass Valve stem: Stainless steel Seal material: Silicone rubber Actuator housing: Die-cast aluminum alloy Actuator cover: Flame-retardant engineering ABS plastic Drive motor: Hysteresis synchronous motor Operating voltage: AC220V, 50 Hz/60 Hz Power consumption: 7.5 VA Valve body pressure: 1.6 MPa; permitted pressure differential: 0.13 MPa Media: Cold water, hot water Media temperature: 295C Ambient temperature: 060C Closing and opening time: Opening approx. 10 seconds; closing approx. 5 seconds Valve connection: G female pipe thread Stroke: 4.0 mm
