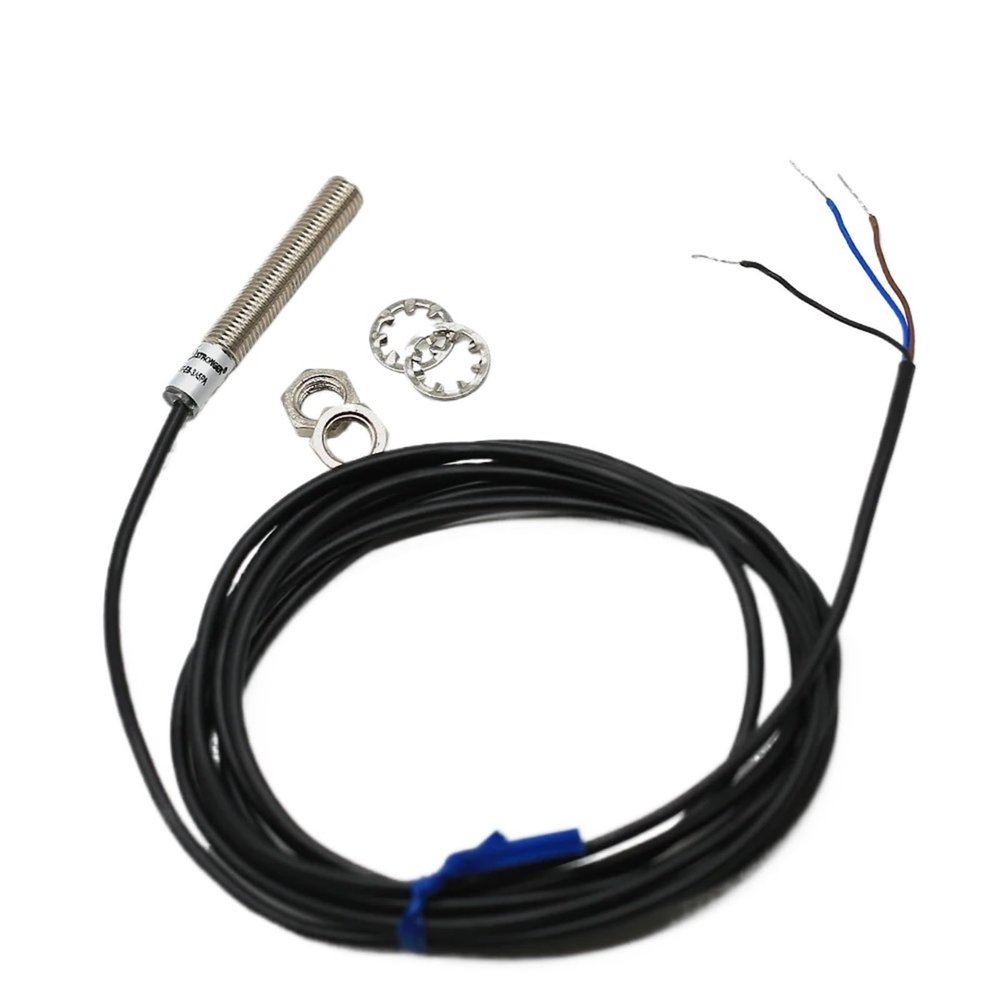

IP65 M8 Infrared Photoelectric Diffuse Sensor, 3 cm, Waterproof, NPN/PNP Output (E3T-DS3E2 NPN NC)

Description

• M8 diffuse-reflection sensor
• Sensing distance: 3 cm
• Response time: <2 ms
• Supply voltage: 636 V DC
• Ingress protection: NPN IP67; PNP IP65
• Maximum load current: 30 mA
• Reverse-polarity protection
• 3-wire NPN/PNP output
• Cable: 2 m, 3-pin
• DC type

M8 infrared photoelectric diffuse sensor with a 3 cm sensing distance and a response time of less than 2 ms. It operates on 636 V DC, supports a maximum load current of 30 mA, and includes reverse-polarity protection. The NPN version is rated IP67, while the PNP version is rated IP65. The sensor has a 2 m, 3-pin cable and is available with normally open (NO) or normally closed (NC) output configurations: NPN E3T-DS3E1 (NO) and E3T-DS3E2 (NC); PNP E3T-DS3F1 (NO) and E3T-DS3F2 (NC).
