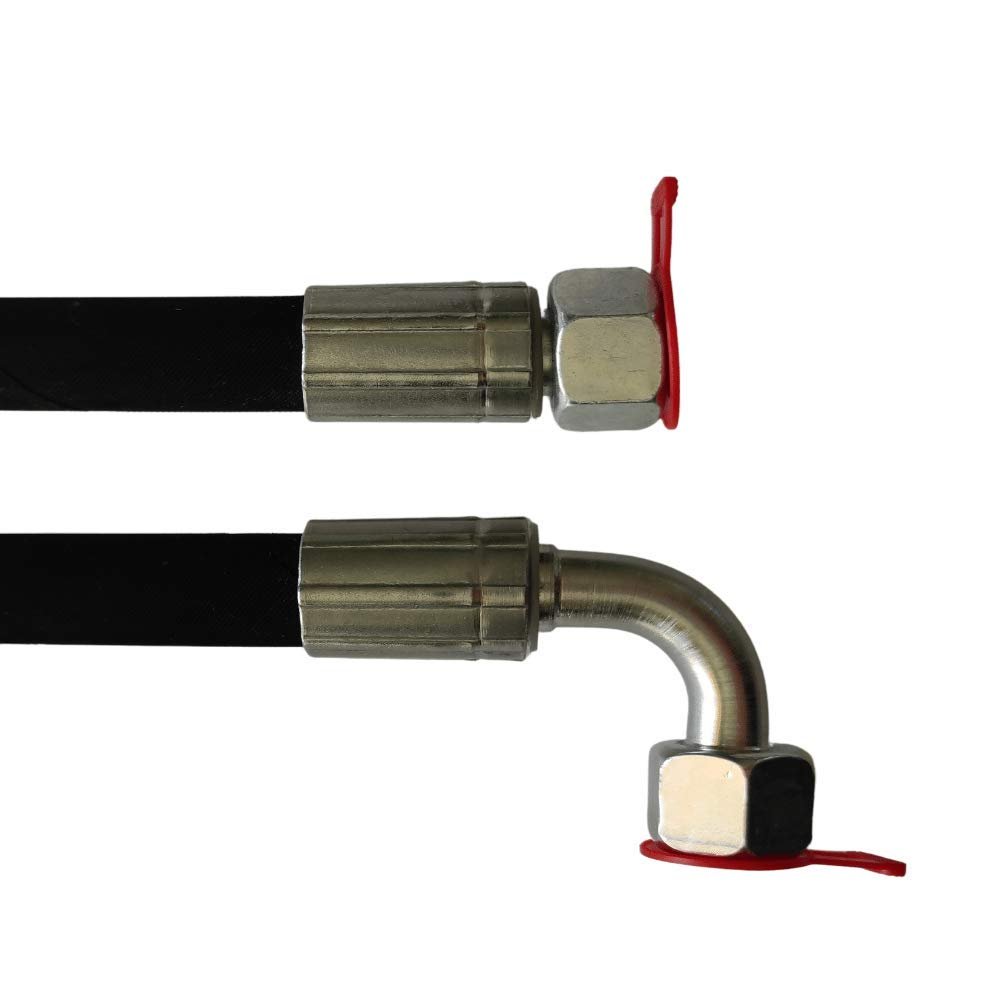

Hydraulic Hose 9,200 mm 1SN DN13, G 1/2 in, DKR–DKR90, 160 bar

Description

• 1SN hydraulic hose, 9,200 mm long, DN13
• G 1/2 in thread
• Nominal pressure: 160 bar
• DIN EN 853 standard
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKR, 90 DKR, 45 DKR, or AGR
• DKR fittings feature a sealing cone with O-ring and union nut
• AGR fitting features an internal cone with an external thread
• Liner: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: one high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C; briefly up to +120C
• Custom-made product; excluded from returns, exchanges, and cancellation

Hydraulic hose, 1SN, 9,200 mm long, DN13, with G 1/2 in thread and DKRDKR90 connections. The hose is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Available connection options include straight DKR, 90 DKR, 45 DKR, and AGR fittings. DKR fittings have a sealing cone with O-ring and union nut; the AGR fitting has an internal cone with an external thread. The hose has an abrasion-resistant synthetic rubber liner that is resistant to oil, fuel, and weathering, reinforced with one high-tensile steel wire braid. It is suitable for petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants. Temperature resistance is -40C to +100C, briefly up to +120C. Manufactured to customer specifications, this product is excluded from returns, exchanges, and cancellation.
