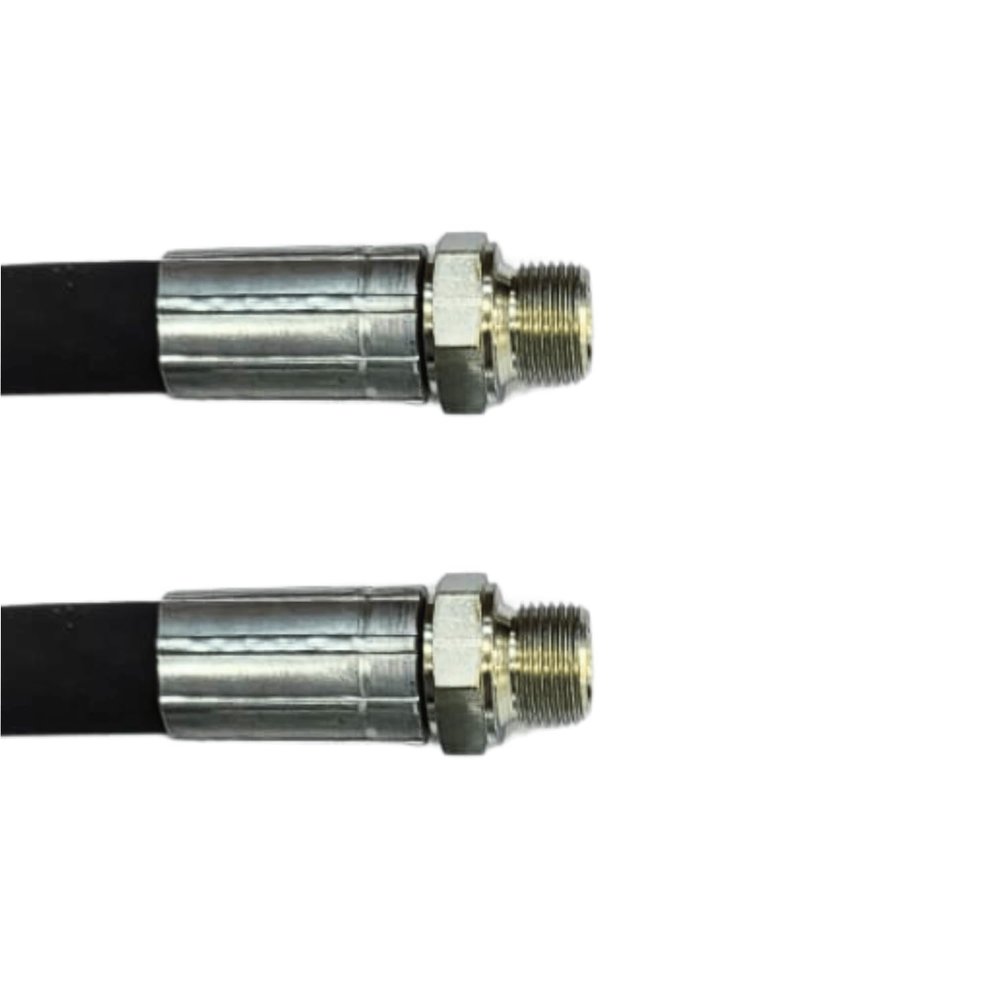

Hydraulic Hose 9,100 mm 2SN DN06, G1/4" Thread, AGR-AGR, 400 bar

Description

• 2SN hydraulic hose, 9,100 mm long, DN06, AGR-AGR, G1/4" thread
• Suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKR, 90 angled DKR, 45 angled DKR, or AGR; G1/4" fittings
• DKR: sealing cone with O-ring and union nut; AGR: female cone with male thread
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: two high-tensile steel wire braids
• Recommended fluids: petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Standard: DIN EN 853 2SN
• Rated pressure: 400 bar
• Custom-made to the customer's specifications; excluded from returns, exchanges, and cancellation

Hydraulic hose, 9,100 mm long, type 2SN, DN06, with AGR-AGR connections and G1/4" thread. Rated pressure: 400 bar. Standard: DIN EN 853 2SN. The hose is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Connection options include a straight DKR, 90 angled DKR, 45 angled DKR, or AGR fitting. DKR fittings feature a sealing cone with an O-ring and union nut; the AGR fitting features a female cone with a male thread. The hose has an abrasion-resistant synthetic rubber tube and two high-tensile steel wire braids. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). Because these hydraulic hoses are manufactured to the customer's specifications, they are custom-made products and are excluded from returns, exchanges, and cancellation.
