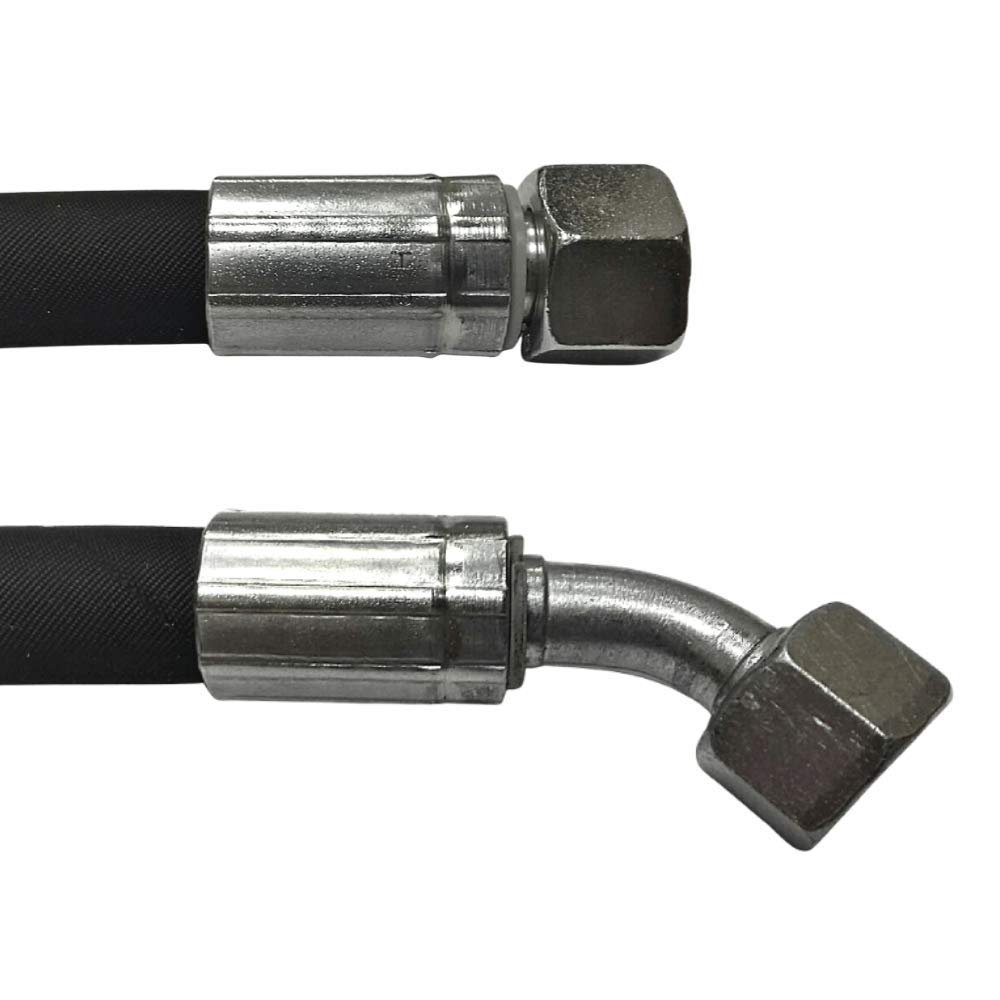

Hydraulic Hose 8,500 mm 2SN DN12 (13) 15L | M22x1.5 | DKOL–DKOL45 | 275 bar

Description

• 2SN hydraulic hose, 8,500 mm, DN12 (13), 15L, DKOLDKOL45, M22x1.5 thread
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKOL with O-ring sealing cone and 15L union nut (M22x1.5); 90 angled DKOL with O-ring sealing cone and 15L union nut (M22x1.5); 45 angled DKOL with O-ring sealing cone and 15L union nut (M12x1.5); or CEL with internal cone and 15L male thread (M22x1.5)
• Inner tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: two high-tensile steel wire braids
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F), briefly up to +120C (257F)
• Standard: DIN EN 853 2SN
• Nominal pressure: 275 bar
• Custom-made according to customer specifications; returns, exchanges, and cancellation are excluded

Hydraulic hose with a length of 8,500 mm, type 2SN, DN12 (13), size 15L, and M22x1.5 thread. Connection options include DKOL straight, DKOL 90, DKOL 45, or CEL fittings. The hose is manufactured with an abrasion-resistant synthetic rubber inner tube and two high-tensile steel wire braids. It is suitable for mineral-based and petroleum-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, diesel, and lubricants. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). In accordance with DIN EN 853 2SN, the nominal pressure is 275 bar. As these hydraulic hoses are manufactured to the customer's measurements and specifications, they are custom-made products and are excluded from returns, exchanges, and cancellation.
