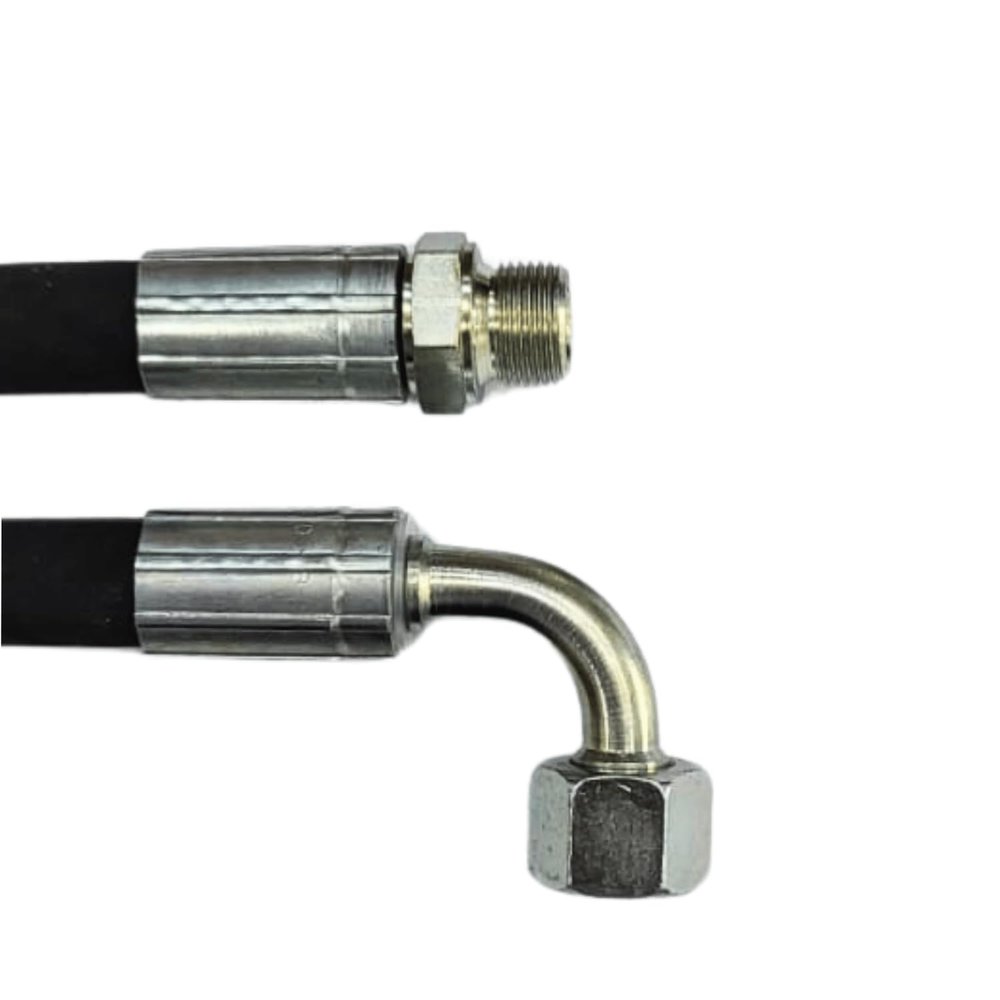

Hydraulic Hose 6800 mm 1SN DN10 | G3/8" Thread | AGR - DKR90 | Rated Pressure 180 bar

Description

• 1SN hydraulic hose, 6800 mm, DN10, AGR-DKR90, G3/8" thread
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKR or 90/45 angled DKR, each with sealing cone, O-ring, and union nut (G3/8"), or AGR with internal cone and male thread (G3/8")
• Construction: abrasion-resistant synthetic rubber tube; oil-, fuel-, and weather-resistant; 1 high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F), briefly up to +120C (257F)
• Standard: DIN EN 853 1SN; rated pressure: 180 bar
• Custom-made product: excluded from returns, exchanges, and cancellation

Hydraulic hose, 6800 mm long, 1SN, DN10, with AGR-DKR90 connections and G3/8" thread. Rated pressure: 180 bar. Standard: DIN EN 853 1SN. The hose is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Connection options include straight DKR, 90 angled DKR, 45 angled DKR, or AGR. DKR features a sealing cone with O-ring and union nut; AGR features an internal cone with male thread. The hose has an abrasion-resistant synthetic rubber tube, one high-tensile steel wire braid, and is oil-, fuel-, and weather-resistant. Recommended fluids include petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). Because the hydraulic hoses are manufactured according to the customer's specifications and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation.
