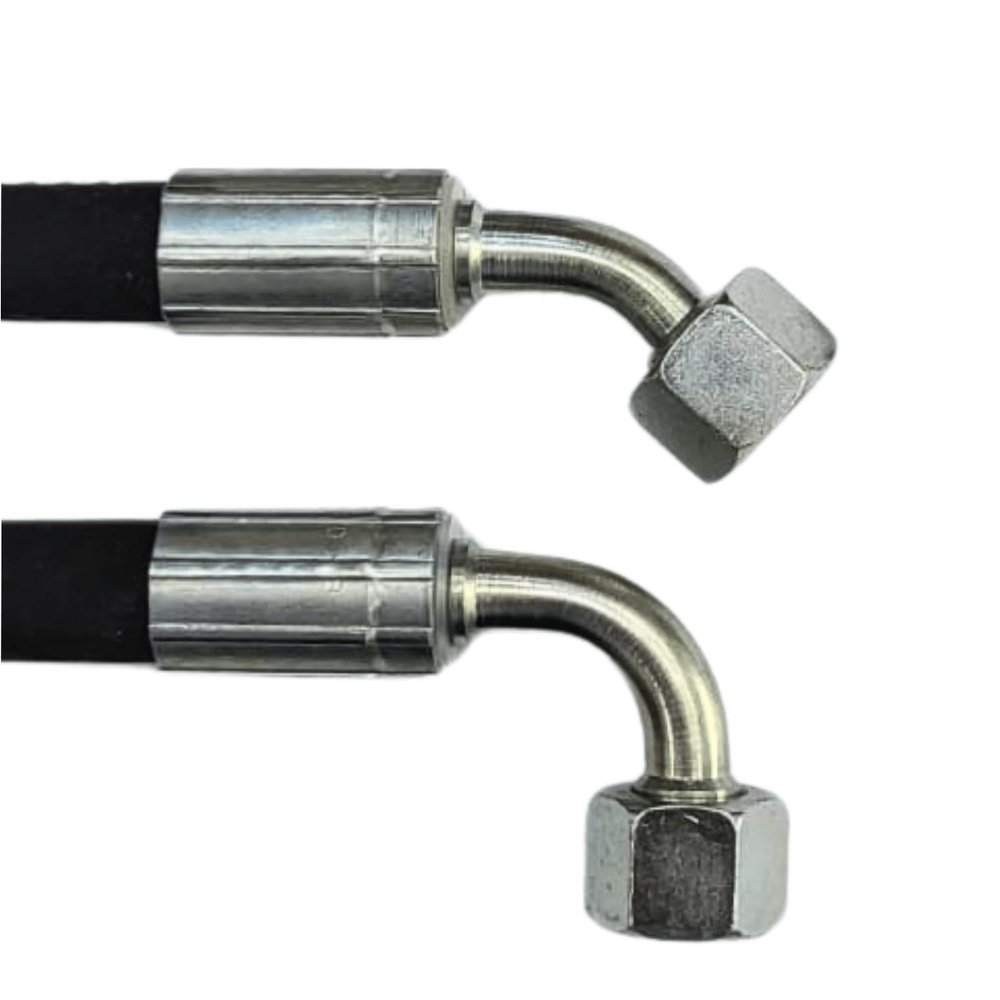

Hydraulic Hose 5,900 mm 1SN DN10, G3/8" Thread, DKR45–DKR90, 180 bar

Description

• 1SN hydraulic hose, 5,900 mm, DN10
• G3/8" thread
• Connection options: straight DKR, 90 DKR, 45 DKR, or AGR
• DKR fittings: sealing cone with O-ring and union nut
• AGR fitting: internal cone with external thread
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Abrasion-resistant synthetic rubber inner tube; oil-, fuel-, and weather-resistant
• One high-tensile steel wire braid
• Temperature range: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Standard: DIN EN 853 1SN
• Nominal pressure: 180 bar

Hydraulic hose 1SN, 5,900 mm long, DN10, with G3/8" thread and selectable DKR45DKR90 connection options. Available fittings include a straight DKR, a 90 angled DKR, a 45 angled DKR, or an AGR fitting. DKR fittings feature a sealing cone with an O-ring and union nut; the AGR fitting features an internal cone with an external thread. The hose has an abrasion-resistant synthetic rubber inner tube and one high-tensile steel wire braid. It is suitable for mineral-based hydraulic fluids, glycol-water mixtures, lubricants, water-oil emulsions, heating oil, and diesel. Manufactured to DIN EN 853 1SN with a nominal pressure of 180 bar. Because these hydraulic hoses are custom-made according to the customer's specified dimensions and requirements, they are excluded from returns, exchanges, and cancellation rights.
