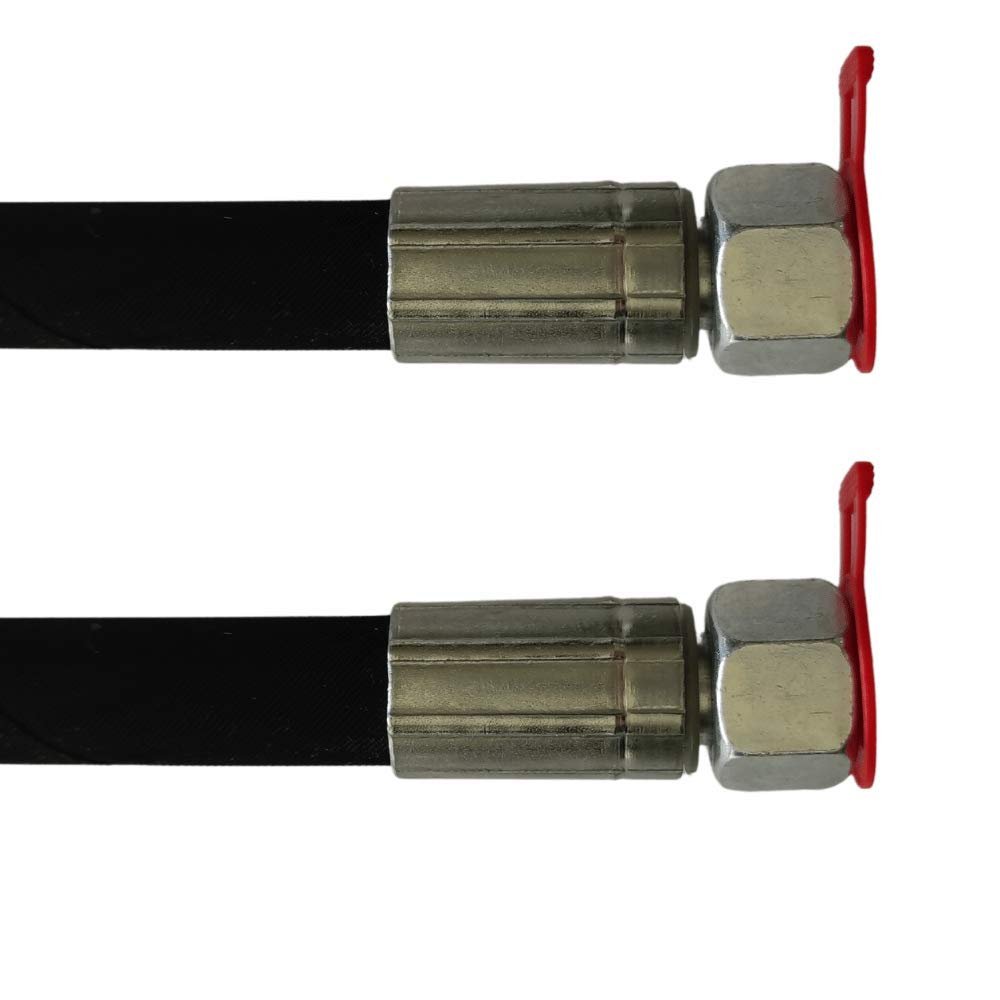

Hydraulic Hose 5,800 mm 1SN DN13, G 1/2 in, DKR-DKR, 160 bar

Description

• Hydraulic hose 1SN, 5,800 mm, DN13, DKR-DKR, G 1/2 in thread
• Resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKR, 90 bent DKR, 45 bent DKR, or AGR; each with G 1/2 in thread
• DKR: sealing cone with O-ring and union nut; AGR: female cone with external thread
• Inner tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weather
• Reinforcement: one high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F), briefly up to +120C (257F)
• Standard: DIN EN 853; hose type: 1SN; nominal pressure: 160 bar
• Custom-made product; returns, exchanges, and cancellations are excluded

Hydraulic hose, 1SN, 5,800 mm long, DN13, with DKR-DKR connections and G 1/2 in thread. Nominal pressure: 160 bar. Standard: DIN EN 853. The hose is resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Connection options include straight DKR, 90 bent DKR, 45 bent DKR, or AGR. DKR connections feature a sealing cone with an O-ring and union nut; the AGR connection features a female cone with an external thread. The inner tube is made of abrasion-resistant synthetic rubber and is resistant to oil, fuel, and weather. Reinforcement consists of one high-tensile steel wire braid. Recommended fluids include petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). Because these hydraulic hoses are manufactured according to the customer's specified dimensions and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellations.
